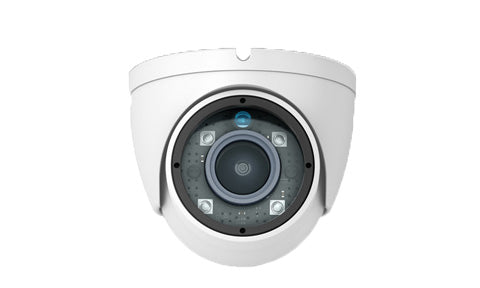

Garmin GC 12 Marine Camera
010-02122-00
The Garmin GC 12 is a compact wired marine dome camera that outputs PAL composite video to a compatible Garmin GPSMAP chartplotter. Infrared illumination supports low-light viewing, and the camera can be mounted upright, inverted or sideways with a reversible image.
Description
The Garmin GC 12 Marine Camera lets you monitor key areas of your boat such as the engine room, cockpit or a blind spot astern, with the feed shown directly on a compatible Garmin GPSMAP chartplotter. It is a wired camera that outputs a standard PAL composite video signal and connects to a chartplotter fitted with a built-in CVBS video encoder. A 69 degree horizontal field of view covers a useful area, while built-in infrared illumination provides visibility in low light out to around 10 m (33 ft). The compact dome housing can be installed upright, upside-down or on its side, and the image can be reversed so it reads correctly when used as a rear-view camera. An IPX7 water rating and a sealed dome construction make it suitable for exposed positions on deck, and supplied screws, a set-screw wrench and a mounting template simplify installation.
PRODUCT DETAILS
- Wired marine dome camera with PAL composite video output
- Connects to a compatible Garmin GPSMAP chartplotter with a built-in CVBS video encoder
- Infrared illumination for low-light viewing, with an IR distance of 10 m (33 ft)
- 69 degree horizontal field of view
- Mounts upright, upside-down or sideways, with a reversible image for rear-view use
- IPX7 water rating for exposed installations
- Compact dome housing measuring 50.5 x 44.3 mm
- GC 12 marine camera
- Mounting template
- Tapping screws
- Set-screw wrench
