Garmin GMI GNX Wired Sail Pack 52
Manufacturer Part Number:
010-01248-90
Manufacturer Part Number:
010-01248-90

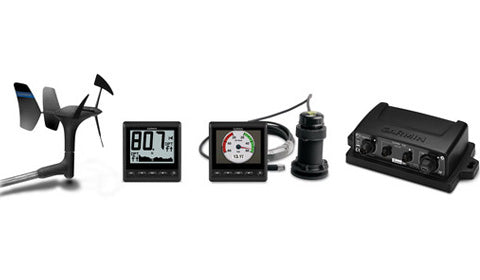

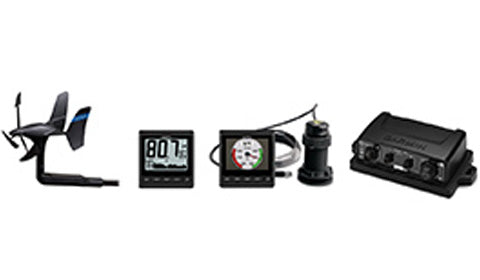

This bundle includes a gWind transducer, GMI 20 marine instrument colour display, GND 10 black box bridge and DST810 thru-hull smart transducer. It also includes a GNX 20 marine instrument display. The gWind transducer features twin-fin technology with 3-bladed propeller for more TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.
Home or Marina Delivery
Pick up at Hamble
More Information
Garmin Carbon Fibre mast brackets for 2 GNX120 Displays
Garmin Carbon Fibre mast brackets for 3 GNX120 Displays
Garmin Carbon Fibre mast brackets for 4 GNX120 Displays
Garmin Mast bracket protective cover for 2 GNX120 Displays
Garmin Mast bracket protective cover for 3 GNX120 Displays
Garmin Mast bracket protective cover for 4 GNX120 Displays
Garmin Protective Sun Cover for the GNX 120
Garmin Protective Sun Cover for the GNX 130
Garmin Trim Snap Piece Cover Bezel for the GNX 120 Display
Garmin Trim Snap Piece Cover Bezel for the GNX 130 Display
Garmin Trim Snap Piece Cover Bezel for the GNX Keypad
Garmin Flush Mount Gasket for the GNX 120 Display
Garmin Flush Mount Gasket for the GNX 130 Display
Garmin Flat Mount Kit for GMI GNX and GHC 4 inch Displays
Garmin Protective Sun Cover for GMI GNX and GHC 4 inch Displays
Garmin Black Trim Snap Piece Cover Bezel for GMI GNX and GHC 4 inch Displays
Garmin Silver and Black Trim Snap Piece Cover Bezel for GMI GNX and GHC 4 inch Displays
Garmin 7-Pin Power Data Cable With 90 Degree Connector for GMI 20 and GHC 20
Garmin Nexus Field Installable Connectors, M8 M/F
Garmin gWind to nWind Connector Adapter Cable
Garmin Nexus Network Cable with Straight Connectors 5m
Garmin gWind Mast Cable (40m)
Garmin gWind Mast Bracket
Garmin gWind Race Mast Bracket
Garmin gWind Propeller
Garmin Nexus Cable with Bare Ends 8m
Garmin gWind NiMH Battery Replacement
Garmin GND 10 Black Box Bridge between gWind and NMEA2000
Garmin Top and Bottom Snap Covers for the GHC 10 and GMI 10 Displays
Garmin Replacement Wind Cups for the GWS 10 Wind Transducer Anomometer
Garmin Replacement Wind Wane for the GWS 10 Wind Transducer
Garmin Replacement Core for the GWS 10 Wind Transducer
Garmin NMEA0183 Power and Data Cable for Intelliducers and GPS 17x
Garmin 8-pin Female to wire block adapter
Garmin Paddle Wheel GST 43
Garmin Mounting Kit GST 43
Garmin GHC 10 GMI 10 protective cover
Garmin gWind Mast cable 25m
USB Mini-B Cable for GND 10
Garmin 7 Pin Power Cable GMI 10
Garmin Flush Mount Gasket GMI 10
GMI and GNX Navigation
Garmin GMI 20 Marine Instrument Display with Colour LCD 4 inch
The GMI 20 digital marine instrument display is perfectly designed for both power and sail vessels. Designed to clearly show depth, speed, wind and 100+ marine and vessel parameters, its large, bright 4" colour display with extra large digits is easy to read at a distance and has a 170 degree viewing angle.
Glass Bonded Lens
A glass-bonded lens prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast colour scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode colour scheme along with a dimmer control. Screens can be set to auto-scroll, cycling between pages automatically without your having to do a thing. This is especially advantageous to sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customised for powerboat, sailboat, fishing, engine/fuel, plus several other user-specified profiles. Power is supplied by the NMEA 2000® network.
Race Timer
In addition, the GMI 20 also features a dedicated race timer that counts down and counts up, with an internal beeper. Included are 2 trim snap piece cover options which allow you to match the GMI 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.
- GMI™ 20
- Black trim piece snap cover
- Silver/black trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- NMEA 2000 drop cable
- NMEA 2000 T-connector
- Documentation
Features
- The all-in-one Smart Sensor
- Depth, speed, and temperature in one compact housing
- Available in NMEA 0183 and NMEA 2000® versions
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel
- Plastic, bronze, or stainless steel housings available
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Available as a Smart Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz
- Available in low-profile, countersunk, or beveled-edge housings
Specifications
- Weight:
- 0.9 kg (2.0 lb)—Plastic
- 1.6 kg (3.5 lb)—Bronze
- 1.9 kg (4.2 lb)—Stainless Steel
- Acoustic Window: Urethane
- Hull Deadrise: Up to 22°
- Data Update Rate: 1 per second
- Minimum Depth Range: 0.5 m (1.6’)
- Maximum Depth Range:
- Up to 70 m (230’)—NMEA 0183
- Up to 100 m (330’)—NMEA 2000
- Pressure Rating: 3 m (10’)
- Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
- *p/nm = pulses per nautical mile
- Supply Voltage:
- 10 VDC to 25 VDC—NMEA 0183
- 9 VDC to 16 VDC—NMEA 2000
- Supply Current:
- <40 mA &em; NMEA0183
- <200 mA &em; NMEA2000
- Standard Cable Length:
- 10 m (33’)—NMEA 0183 cable
- 6 m (20’)—NMEA 2000 cable
- Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- NMEA 2000® Load Equivalency Number (LEN): 4
- CE Regulation: Complies to IERC60945
gWind™ & GND™ 10 (010-01227-00)
- gWind transducer
- GND™ 10
- NMEA 2000® drop cable (2 m)
- NMEA 2000 T-connector
- Mast cable with female connector (25 m)
- Nexus female field installable connector
- Mast bracket
- Mounting hardware
- Documentation
gWind™ with GMI™ 20 & DST800 + GND™ 10 (010-01248-10)
- gWind transducer
- GMI 20
- GND 10
- DST800 thru-hull smart transducer
- NMEA 2000 drop cable (2 m)
- NMEA 2000 T-connector
- Mast cable with female connector (25 m)
- Nexus female field installable connector
- Mast bracket
- Mounting hardware
- Documentation
