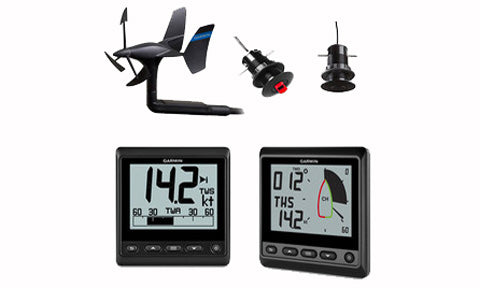

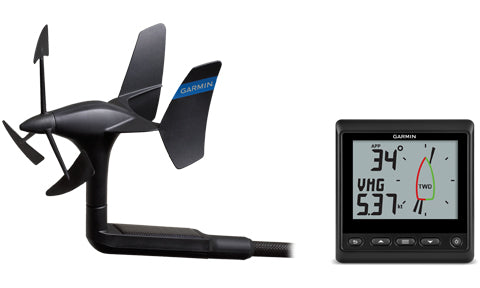

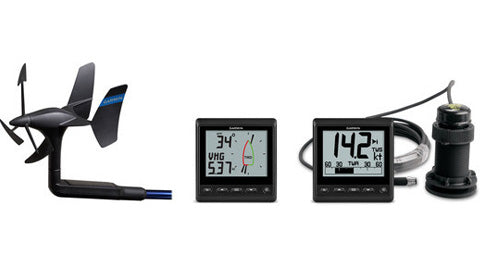

Garmin GNX Wireless Sail Pack
Manufacturer Part Number:
010-01616-20
Manufacturer Part Number:
010-01616-20
With a GNX Wireless Sail Pack, you will have all the equipment you need to know what's going on with the wind and the water. GNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customisable backlight colours, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more.
Home or Marina Delivery
Pick up at Hamble
More Information
Garmin Carbon Fibre mast brackets for 2 GNX120 Displays
Garmin Carbon Fibre mast brackets for 3 GNX120 Displays
Garmin Carbon Fibre mast brackets for 4 GNX120 Displays
Garmin Mast bracket protective cover for 2 GNX120 Displays
Garmin Mast bracket protective cover for 3 GNX120 Displays
Garmin Mast bracket protective cover for 4 GNX120 Displays
Garmin Protective Sun Cover for the GNX 120
Garmin Protective Sun Cover for the GNX 130
Garmin Trim Snap Piece Cover Bezel for the GNX 120 Display
Garmin Trim Snap Piece Cover Bezel for the GNX 130 Display
Garmin Trim Snap Piece Cover Bezel for the GNX Keypad
Garmin Flush Mount Gasket for the GNX 120 Display
Garmin Flush Mount Gasket for the GNX 130 Display
Garmin Flat Mount Kit for GMI GNX and GHC 4 inch Displays
Garmin Protective Sun Cover for GMI GNX and GHC 4 inch Displays
Garmin Black Trim Snap Piece Cover Bezel for GMI GNX and GHC 4 inch Displays
Garmin Silver and Black Trim Snap Piece Cover Bezel for GMI GNX and GHC 4 inch Displays
Garmin 7-Pin Power Data Cable With 90 Degree Connector for GMI 20 and GHC 20
Garmin Nexus Field Installable Connectors, M8 M/F
Garmin gWind to nWind Connector Adapter Cable
Garmin Nexus Network Cable with Straight Connectors 5m
Garmin gWind Mast Cable (40m)
Garmin gWind Mast Bracket
Garmin gWind Race Mast Bracket
Garmin gWind Propeller
Garmin Nexus Cable with Bare Ends 8m
Garmin gWind NiMH Battery Replacement
Garmin GND 10 Black Box Bridge between gWind and NMEA2000
Garmin Top and Bottom Snap Covers for the GHC 10 and GMI 10 Displays
Garmin Replacement Wind Cups for the GWS 10 Wind Transducer Anomometer
Garmin Replacement Wind Wane for the GWS 10 Wind Transducer
Garmin Replacement Core for the GWS 10 Wind Transducer
Garmin NMEA0183 Power and Data Cable for Intelliducers and GPS 17x
Garmin 8-pin Female to wire block adapter
Garmin Paddle Wheel GST 43
Garmin Mounting Kit GST 43
Garmin GHC 10 GMI 10 protective cover
Garmin gWind Mast cable 25m
USB Mini-B Cable for GND 10
Garmin 7 Pin Power Cable GMI 10
Garmin Flush Mount Gasket GMI 10
GMI and GNX Navigation
Garmin GNX Wind Marine Instrument LCD 4 inch
GNX Wind features a high-visibility, glass-bonded backlit monochrome LCD display with customisable backlight colours making it easy to see from nearly any angle and even at a distance.
Easy-to-read Display
Large, easy-to-read black digits on white or customisable background colours for high contrast and high visibility in all lighting conditions
Glass-bonded Display
Glass-bonded backlit monochrome LCD display lens avoids fogging
Customisable Colour Background
Choose from 7 different backlight colours, or even create a customised colour, to achieve the screen that provides optimum readability for you.
Customisable User Profiles
Displays true and apparent wind speed and wind angles, true wind direction, boat speed, speed over ground, VMG, heading, course over ground and close hauled wind
Clear Display
2 data fields and a digital wind rose simultaneously display true and apparent wind data, Steer Pilot, boat speed and more.
Low Power Consumption
Perfect for sailors who want to sail for long intervals without having to run a motor or generator to charge batteries. The GNX Wind uses only 25mA with 350 mW daytime usage, requiring no backlight and just 400 mW with a mid-level backlight setting at night.
NMEA® 2000
NMEA 2000® network - one 'plug and play' connection for power and data. The first release won’t have ANT. This can be added later.
- GNX Wind
- Trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- NMEA 2000 T-connector
- NMEA 2000 drop cable
- Installation instructions
- Documentation
Garmin GNX 20 Marine Instrument with Standard Monochrome LCD 4 inch
The easy-to-read GNX 20 marine instrument display with black digits on a white or colour background clearly shows depth, speed, wind and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.
Easy-to-read Display
Unique high-contrast hybrid display features large, easy-to-read digits scalable up to 36 mm tall. Offers excellent clarity in direct sunlight, at dusk, or at night. The dot-matrix section can show additional details and/or graphical information.
Glass-bonded Display
Glass-bonded display helps prevent fogging, and the anti-glare lens finish increases visibility.
Customisable Colour Background
Choose from 7 different backlight colours, or even create a customised colour, to achieve the screen that provides optimum readability for you.
Customisable User Profiles
Fully customisable user profiles allow you to choose from 5 available display configurations for sailboat or powerboat user-profiles: single, dual and triple function, plus gauge and graph mode to display wind, depth and speed data, or customise the pages to display the marine and boat data that is most important to you.
Auto Scroll
Set your display to automatically cycle between pages at a speed you set for convenient, hands-free operation.
Low Power Consumption
Perfect for sailors who want to sail for long intervals without having to run a motor or generator to charge batteries. The GNX 21 uses only 25 mA with 350 mW daytime usage, requiring no backlight and just 400 mW with a mid-level backlight setting at night.
NMEA® 2000
Monitor more than 50 marine and boat parameters, including GPS speed, water depth and temperature, wind direction, and wind speed from the NMEA 2000 bus. You can also add a NMEA 0183 device using the optional 7-pin bare-wire power/data cable.
- GNX 20
- Trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- NMEA 2000 drop cable
- NMEA 2000 T-connector
- Installation instructions
- Documentation
Features
- The all-in-one Smart Sensor
- Depth, speed, and temperature in one compact housing
- Available in NMEA 0183 and NMEA 2000® versions
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel
- Plastic, bronze, or stainless steel housings available
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Available as a Smart Sensor at 235 kHz or an analog output sensor operating at 200 kHz or 235 kHz
- Available in low-profile, countersunk, or beveled-edge housings
Specifications
- Weight:
- 0.9 kg (2.0 lb)—Plastic
- 1.6 kg (3.5 lb)—Bronze
- 1.9 kg (4.2 lb)—Stainless Steel
- Acoustic Window: Urethane
- Hull Deadrise: Up to 22°
- Data Update Rate: 1 per second
- Minimum Depth Range: 0.5 m (1.6’)
- Maximum Depth Range:
- Up to 70 m (230’)—NMEA 0183
- Up to 100 m (330’)—NMEA 2000
- Pressure Rating: 3 m (10’)
- Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
- *p/nm = pulses per nautical mile
- Supply Voltage:
- 10 VDC to 25 VDC—NMEA 0183
- 9 VDC to 16 VDC—NMEA 2000
- Supply Current:
- <40 mA &em; NMEA0183
- <200 mA &em; NMEA2000
- Standard Cable Length:
- 10 m (33’)—NMEA 0183 cable
- 6 m (20’)—NMEA 2000 cable
- Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- NMEA 2000® Load Equivalency Number (LEN): 4
- CE Regulation: Complies to IERC60945
