This product has been discontinued by Garmin and is no longer available to buy.
Garmin

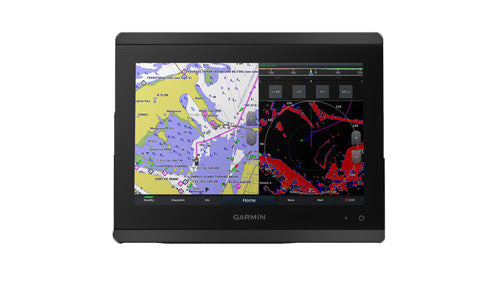

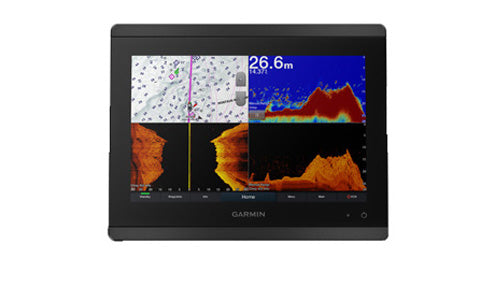

Garmin GPSMAP 8410xsv 10 Inch Chartplotter Fishfinder
Description
The GPSMAP 8410xsv packs premium glass-helm performance and built-in sonar into a compact 10-inch format for sport fishermen, cruisers and sailors. The full HD IPS touchscreen offers wide viewing angles, superior clarity and sunlight readability, even through polarised sunglasses, while the maximum-glass design flat mounts edge-to-edge or flush with a low profile.
Built-in sonar covers dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu scanning, plus Ultra High-Definition scanning sonar, with no black box required, and the unit supports the full Panoptix all-seeing sonar line (transducers sold separately). Wi-Fi, ANT and NMEA 2000 connect the 8410xsv to the Garmin Marine Network for sharing radar, sonar, cameras and instruments across helms, and OneHelm compatibility brings supported third-party systems to the touchscreen. The rugged housing carries an IPX7 water rating.
PRODUCT DETAILS
- 10-inch full HD IPS touchscreen (1920 x 1200, WUXGA) with wide viewing angles and sunlight readability
- Built-in dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu sonar (no black box required)
- Built-in Ultra High-Definition scanning sonar support and full Panoptix transducer compatibility
- Maximum-glass design for edge-to-edge flat mounting or low-profile flush mounting
- Networked glass-helm MFD with Wi-Fi, ANT, NMEA 2000 and the Garmin Marine Network
- OneHelm compatible for integrated control of supported third-party onboard systems
- IPX7 waterproof rating with dual microSD card slots (32 GB max)
- GPSMAP 8410xsv multifunction display
- Flush mount kit and gasket
- Bail mount and knobs
- Power cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 218.4 x 136.9 mm (10 in. diagonal) |
| Display resolution | WUXGA, 1920 x 1200 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 259.9 x 205.1 x 75.1 mm |
| Dimensions on bail mount (W x H x D) | 259.9 x 221.6 x 103.5 mm |
| Weight | 2.4 kg (5.2 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 45 cm (17.7 in.) |
| Clearance behind flush-mounted device | 11.1 cm (4 3/8 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 40.1 W |
| Typical current draw at 12 Vdc | 1.5 A |
| Max. current draw at 12 Vdc | 6.0 A |
| Fuse | 10 A, 125 V fast-acting |
Connectivity
| NMEA 2000 LEN @ 9 Vdc | 2 |
| NMEA 2000 draw | 75 mA max. |
| Wireless frequency and protocols | Wi-Fi and ANT technologies; 2.4 GHz @ 12.3 dBm nominal |
| Memory card | 2 microSD card slots, 32 GB max. card size |
| HTML integration | Compatible with OneHelm integration |
GPS/GNSS
| Max. waypoints | 5,000 |
| Max. routes | 100 (250 waypoints each) |
| Max. active track points | 50,000 points, 50 saved tracks |
Environmental
| Temperature range | -15 to 55°C (5 to 131°F) |
| Water rating | IEC 60529 IPX7 |
Sonar
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz; Ultra High-Definition ClearVu: 800 kHz (CHIRP 760-880 kHz); Ultra High-Definition SideVu: 1,200 kHz (CHIRP 1,060-1,170 kHz) |
| Sonar transmit power (RMS) | CHIRP: 1000 W; Garmin ClearVu and SideVu CHIRP: 500 W |
| Sonar depth | 5,000 ft. at 1 kW (dependent on transducer and water conditions) |
