Victron GX Touch 50 Flush Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

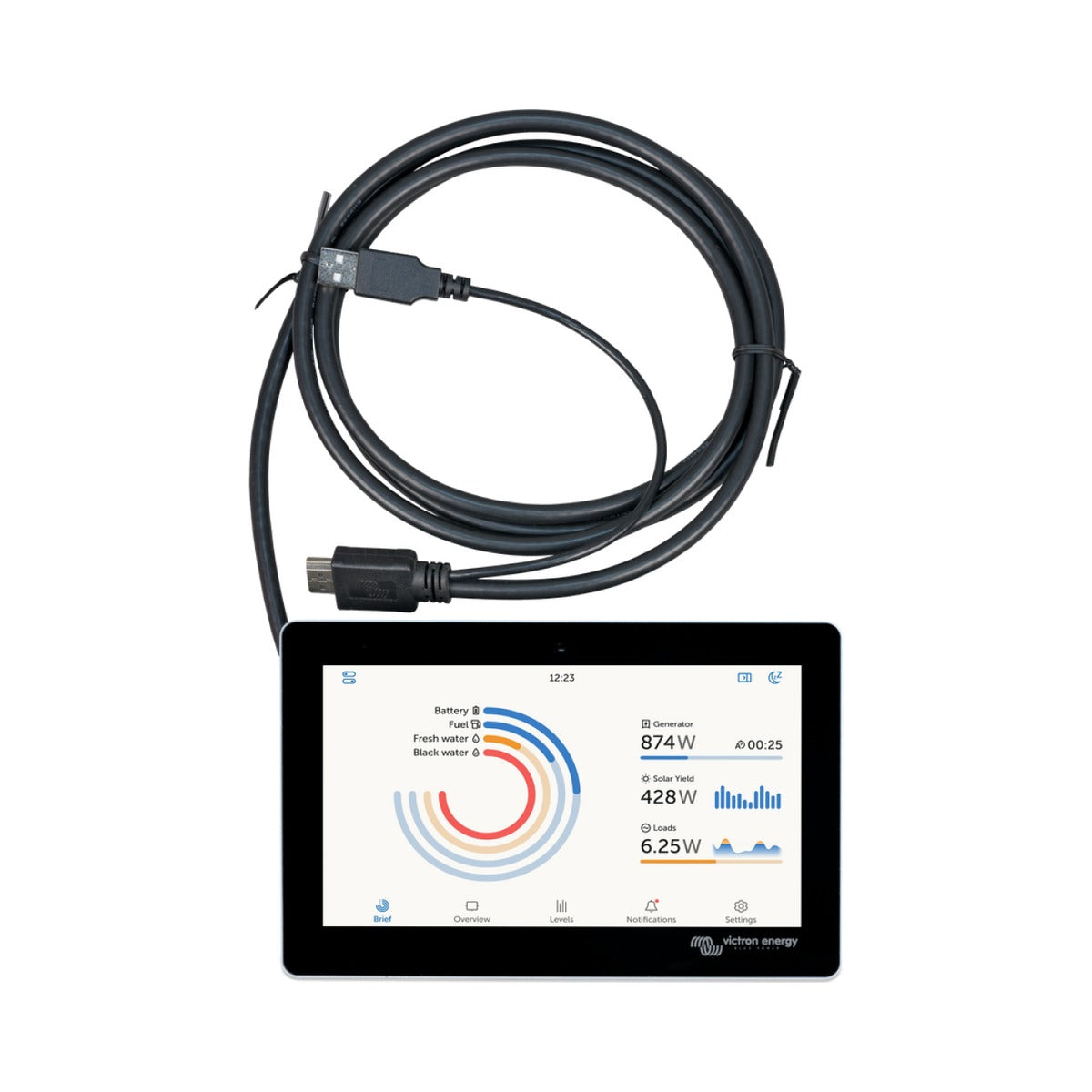

The GX Touch 50 Flush is a five inch touchscreen display for the Victron Cerbo GX, giving an instant on-board overview of the system and direct control of its settings. It connects to the Cerbo GX with a single cable, so there is no need to bring multiple wires to the screen, and it shows battery state of charge, consumption, PV and generator harvest, tank levels and temperatures at a glance.
This is the flush-mount version, designed to sit neatly behind a panel cut-out for a clean dashboard finish. It carries an IP65 rating, making it suitable for exposed helm and marine locations where the standard top or wall mount display would not be protected. The flush versions are supplied without the UV protection cover fitted to the top-mount models.
The display is powered from the Cerbo GX over the supplied 2 metre cable and operates across the full 8 to 70 VDC system range.
PRODUCT DETAILS
- Five inch capacitive touchscreen for the Victron Cerbo GX
- Flush-mount form for a clean panel cut-out finish
- IP65 rated for exposed helm and marine locations
- Single-cable connection to the Cerbo GX
- 800 x 480 resolution with at-a-glance system overview and control
- Powered from the Cerbo GX over the supplied 2 metre cable
No compatible transducers listed for this product.
No compatible products found.
Key specifications
| Device type | Flush-mount touchscreen display for Cerbo GX |
| Display | 5 inch (12.7 cm) capacitive touchscreen |
| Supply voltage | 8 to 70 VDC (powered from the Cerbo GX via the display cable) |
| Connectivity | Single cable to Cerbo GX |
| Protection category (IP) | IP65 |
Display
| Display resolution | 800 x 480 |
| Cable length | 2 m |
Physical
| Dimensions (h×w×d) | 94 × 136 × 12 mm |
Operating conditions
| Operating temperature range | -20 to +50 °C |
