Icom IC-M400BBE Modular VHF/DSC Marine Radio
Description

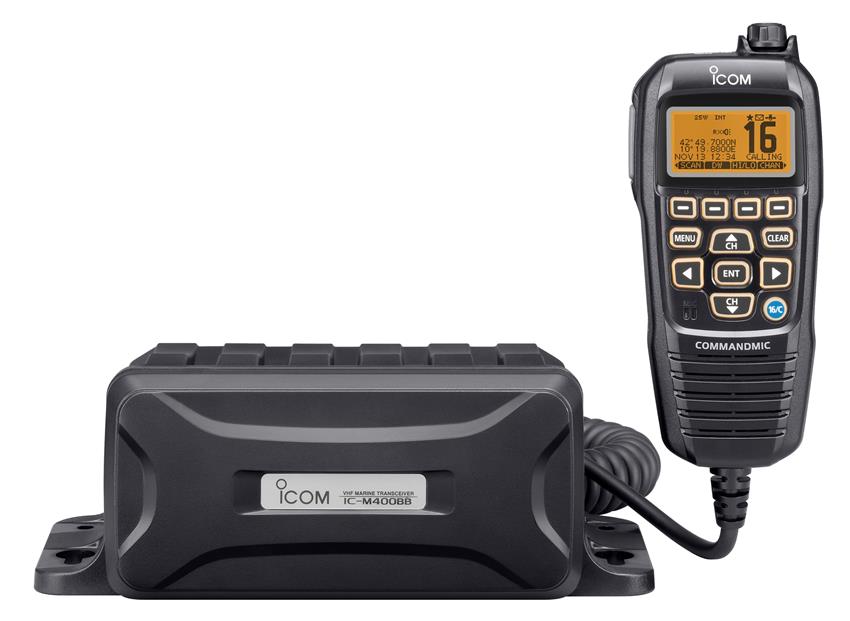

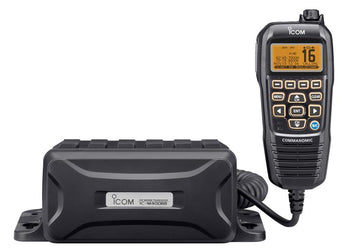

The Icom IC-M400BBE is a modular 'black box' VHF/DSC marine radio designed for installations where helm space is at a premium. The RF unit mounts out of sight, while all functions, including DSC, are controlled from the HM-195B/SW COMMANDMIC sited up to 18.3 m (60 ft) away at the cockpit or fly bridge. The COMMANDMIC uses the same intuitive soft-key interface found across Icom's marine range, keeping operation straightforward.
Built-in bidirectional active noise cancelling reduces background noise by up to 90% to improve both transmitted and received speech, and a 10 W amplifier drives an external speaker for loud audio, public address and foghorn use. Built-in Class D DSC continuously monitors Channel 70 and meets ITU-R M.493-14, while NMEA 0183 connectivity allows position and DSC data to be shared with a connected GPS or chartplotter. The IC-M400BBE can also be paired with an MA-510TR or MA-500TR Class B AIS transponder for AIS target calling, and both the RF unit and COMMANDMIC carry IPX7 waterproofing. This model has been discontinued.
PRODUCT DETAILS
- Modular black-box configuration; RF unit installs out of sight
- Controlled by HM-195B/SW COMMANDMIC (up to 18.3 m / 60 ft away)
- Active Noise Cancelling (up to 90% background noise reduction)
- 10 W loud audio, public address and foghorn via external speaker
- Built-in Class D DSC; meets ITU-R M.493-14
- NMEA 0183 input/output for GPS/NAV interface
- AIS Target Call with MA-510TR/MA-500TR
- IPX7 waterproof (RF unit and COMMANDMIC, 1 m for 30 minutes)
- Dual/tri-watch, priority and normal scan; supports 4-digit channels
- HM-195B/SW COMMANDMIC (may be supplied separately depending on version)
- DC power cable
- GPS antenna
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Frequency range TX | 156.000-161.450 MHz |
| Frequency range RX | 156.000-163.425 MHz |
| Frequency CH70 | 156.525 MHz |
| Usable channels | INT, USA channels (available depending on version) |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power supply requirement | 13.8 V DC nominal (10.8-15.6 V DC) |
| Current drain (TX 25 W output) | 5.5 A |
| Current drain (RX max. audio) | 3.5 A |
| Operating temperature range | -20 C to +60 C |
| Antenna impedance | 50 ohm (SO-239) |
| Dimensions RF unit (W x H x D) | 216 x 79 x 125 mm (projections not included) |
| Dimensions COMMANDMIC HM-195B/SW (W x H x D) | 67.5 x 144.5 x 37 mm |
| Weight RF unit (approx.) | 830 g |
| Weight COMMANDMIC (approx.) | 400 g |
| NMEA in/out formats | RMC, GGA, GNS, GLL, DSC, DSE |
Transmitter
| Output power | 25 W, 1 W |
| Max. frequency deviation | +/-5.0 kHz |
| Frequency stability | Less than +/-1.5 kHz |
| Spurious emissions | Less than 0.25 uW |
Receiver
| Sensitivity Main (20 dB SINAD) | -5 dBu emf typ. |
| Sensitivity DSC (1% BER) | -4 dBu emf typ. |
| Squelch sensitivity (Main) | Less than -2 dBu emf |
| Adjacent channel selectivity (Main) | More than 70 dB |
| Spurious response (Main) | More than 70 dB |
| Intermodulation (Main) | More than 68 dB |
| Hum and noise | More than 40 dB |
| Audio output power (10% distortion, 4 ohm) | More than 2 W (HM-195B/SW) / more than 10 W (RX speaker) |
Environmental
| Waterproof rating | IPX7 (RF unit and HM-195B/SW, waterproof protection) |
