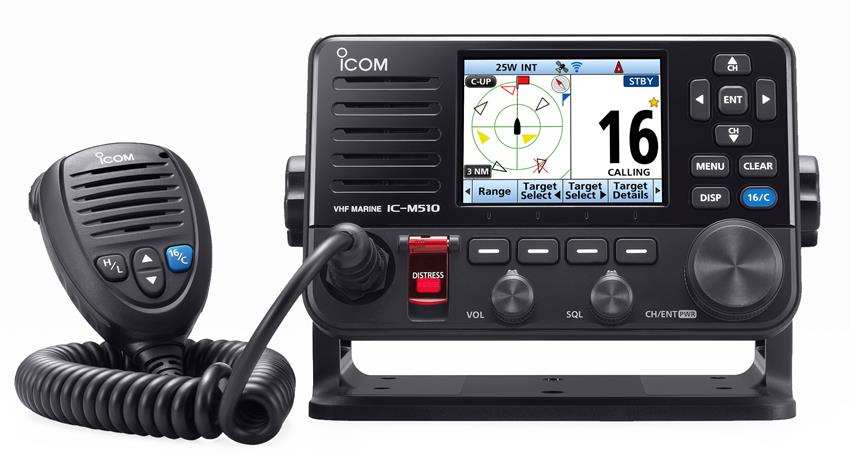

Icom IC-M510E with AIS Receiver
Description
The Icom IC-M510E with AIS Receiver (IC-M510 EVO AIS) builds on Icom's award-winning fixed-mount VHF/DSC marine radio by adding a built-in AIS receiver for superior situational awareness. Real-time vessel traffic is displayed directly on the wide-viewing-angle colour TFT screen, and you can make an individual DSC call to a selected AIS target straight from the AIS screen, even when the other vessel is too far away to see by name.
Alongside the integrated AIS, the radio offers full smartphone control and intercom through the RS-M500 app for iOS and Android, using built-in WLAN so up to three smart devices can act as a wireless microphone or remote controller. Built-in NMEA 2000 shares GNSS position, AIS, DSC and channel data across the network, while built-in Class D DSC with a dedicated distress button keeps continuous watch on Channel 70. A loud 25 W two-way hailer and 20 W RX hailer, Active Noise Cancelling, an integrated GNSS receiver, simplified navigation and rugged IP68 waterproofing make this the most safety-focused model in the IC-M510E series.
PRODUCT DETAILS
- Integrated AIS receiver shows real-time vessel traffic on screen
- Individual DSC call to a selected AIS target from the AIS screen
- Radio control and intercom via smartphone (RS-M500 app, up to 3 devices)
- Award-winning iF Design Award 2022 styling; panel or trunnion mount
- Built-in NMEA 2000 (shares GNSS, AIS, DSC and channel data)
- Built-in Class D DSC with dedicated distress button
- Loud 25 W two-way hailer / 20 W RX hailer and foghorn
- Wide viewing angle colour TFT LCD with night mode; Active Noise Cancelling
- IP68 advanced waterproofing (1 m depth for 60 minutes)
- HM-205RB speaker-microphone
- Microphone hanger
- DC power cable
- Mounting bracket kit
- Flush mount gasket
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Frequency range TX | 156.025-161.425 MHz |
| Frequency range RX | 156.500-162.000 MHz |
| Frequency DSC | 156.525 MHz |
| Frequency AIS | 161.975, 162.025 MHz |
| Usable channels | INT, USA, ATIS channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0G2B (AIS) |
| Power supply requirement | 12.0 V DC (10.8-15.6 V DC) |
| Current drain (TX 25 W output) | 5.0 A |
| Current drain (with ext SP, RX hailer and HM-195) | 7.3 A |
| Operating temperature range | -20 C to +60 C |
| Antenna impedance | 50 ohm |
| Dimensions (W x H x D) | 175 x 110 x 53 mm |
| Weight (approx.) | 750 g (not including microphone) |
| AIS receiver | Integrated (this version) |
Transmitter
| Output power (at 12.0 V DC) | 25 W, 1 W |
| Max. frequency deviation | +/-5 kHz |
| Frequency error | Less than +/-0.5 kHz |
| Spurious emissions | Less than 0.25 uW |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
Receiver
| Sensitivity (20 dB SINAD) | -5 dBu emf typical |
| Sensitivity DSC (1% BER) | -1 dBu emf typical |
| Adjacent channel selectivity | More than 75 dB |
| Spurious response | More than 75 dB |
| Intermodulation | More than 75 dB |
| Hum and noise | More than 40 dB |
| Audio output power (10% distortion, 4 ohm) | More than 15 W (external speaker), 20 W typ (RX hailer), 25 W typ (hailer) |
Wireless LAN
| Standard | IEEE 802.11 b/g/n |
| Authentication and encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels | 1-13 (2.4 GHz band) |
| Output power | Less than 10 mW/MHz |
Environmental
| Ingress protection | IP68 (dust-tight and waterproof, 1 m depth for 60 minutes) |
| MIL-STD | MIL-STD-810G (and equivalent C, D, E, F) |
