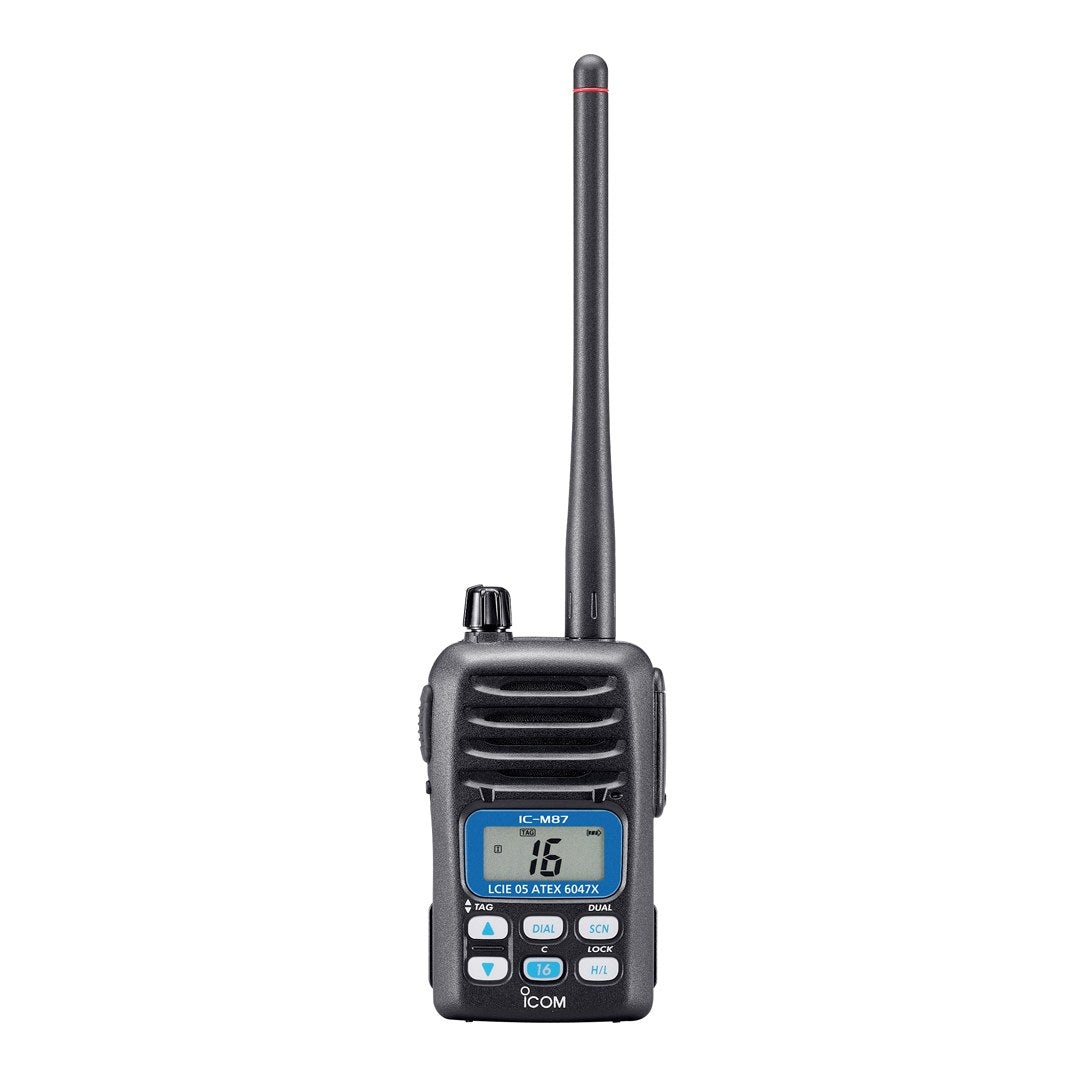

Icom IC-M87E Compact/Waterproof VHF PBR/Marine ATEX Radio
Description
The Icom IC-M87E is a compact, waterproof ATEX intrinsically safe VHF radio that works as both a marine transceiver and a simple PMR business radio. It conforms to the ATEX Directive with an approved rating of II 2G Ex ib IIA T3 Gb, making it suitable for hazardous areas on land and at sea such as oil rigs, petroleum tankers and bulk cargo carriers, and a simple button press toggles the operating band between marine and land channels.
Built around a tough one-piece aluminium chassis tested to US military standard MIL-STD 810, the IC-M87E is waterproof to IPX7 and designed to withstand rainstorms, high humidity and rapid temperature changes. A clear backlit LCD and backlit buttons aid recognition in any light, while the standard BP-227AX lithium-ion battery delivers up to 19 hours of operation. It carries 22 programmable channels for PMR use with wide and narrow channel spacing, built-in CTCSS and DTCS signalling and a built-in voice scrambler (version dependent). It must be used with the BP-227AX, and the optional waterproof speaker-microphone HM-138 is an approved accessory for ATEX use. This product is discontinued.
PRODUCT DETAILS
- ATEX intrinsically safe, rated II 2G Ex ib IIA T3 Gb
- Dual marine VHF and PMR business radio operation
- IPX7 waterproof construction
- Tough one-piece aluminium chassis tested to MIL-STD 810
- Up to 19 hours operation from BP-227AX lithium-ion battery
- 22 programmable channels for PMR use
- Built-in CTCSS and DTCS tone signalling
- Built-in 32 code voice scrambler (version dependent)
- Must be used with BP-227AX; HM-138 approved for ATEX use
- BP-227AX battery pack
- BC-152N battery charger
- BC-147SE AC adapter (not supplied on some versions)
- MB-86 swivel belt clip
- FA-S59V antenna
- Hand strap
No exploded diagram available for this product.
No compatible transducers listed for this product.

Icom AD-100 ATEX BC-119N/121N Charger Adapter for IC-M87/F51/F61 BP-227/227AXD
Icom BC-01 UK 12V 300mA Power Supply

Icom BC-119N UK Desktop Fast Charger Inc. PSU req Adaptor
Icom BC-121N 6-Way Rapid Charger Req BC-157 and Adaptors
Icom BC-145S UK Plug AC PSU 230V Switch Mode

Icom BC-152 Desktop Battery Charger for IC-F51/F61/M87

Icom BP-227 Li-ion Battery Pack 7.2V/1850mAh for IC-F51V/F61V/M87 Non ATEX
Icom BP-227AX Li-ion Battery Pack 7.2V/1700mAH ATEX for IC-F51/F61/M87 Non-dust rated
Icom Hard Case for IC-F51/F61/M87 Non ATEX

Icom FA-S62VS Stubby Antenna 150-162MHz ATEX for IC-F51/M87

Icom FA-S63VS Stubby Antenna 160-174MHz ATEX for IC-F51

Icom OPC-966U 9-Pin to USB Programming Cable for IC-F51, M87, F3062 etc.

Icom SMA Plug to BNC Socket AD-92SMA for IC-R6/M73/M87/GM1600E

Icom BC-157S AC Adapter

Icom FA-S59V Antenna

Icom MB-98 Belt Clip

Icom MB-86 Belt Clip

Icom HM-138 Speaker Microphone

Icom OPC-515L Cable

CP-23L CIGARETTE LIGHTER CABLE

Icom CIGAR.001 Cigarette Lighter Cable
No compatible products found.
General
| Frequency coverage (Marine, Transmit) | 156.000-161.450 MHz |
| Frequency coverage (Marine, Receive) | 156.000-163.425 MHz |
| Frequency coverage (PMR) | 146.000-174.000 MHz |
| Usable channels | INT/USA marine channels (varies by version), 22 PMR channels |
| Type of emission (Marine) | 16K0G3E |
| Type of emission (PMR) | 16K0F3E/8K50F3E, 14K0F3E/8K50F3E |
| Channel spacing (Marine) | 25 kHz |
| Channel spacing (PMR) | 12.5/25 kHz, 20/25 kHz |
| Power supply requirement | 7.4 V DC nominal |
| Current drain (TX at 1 W) | 0.7 A typ. |
| Current drain (RX max. audio) | 200 mA typ. |
| Antenna impedance | 50 ohms (SMA type) |
| Operating temperature range (Marine) | -15 C to +55 C |
| Operating temperature range (PMR) | -25 C to +55 C |
| Dimensions (W x H x D) | 62 x 97 x 39 mm (with BP-227AX, projections not included) |
| Weight (approx.) | 280 g (with BP-227AX) |
Transmitter
| Output power (Marine, at 7.2 V DC) | 1 / 0.5 W |
| Output power (PMR) | 1 W |
| Max. frequency deviation (Marine) | +/-5.0 kHz |
| Frequency stability | +/-1.5 kHz |
| Spurious emissions | 0.25 microwatt (<= 2 GHz), 1.0 microwatt (> 2 GHz) |
Receiver
| Sensitivity (Marine, 20 dB SINAD) | -2 dB microvolt typ. (emf) |
| Sensitivity (PMR, 20 dB SINAD) | -4 dB microvolt typ. (emf) |
| Adjacent channel selectivity | 70 dB (Marine) |
| Spurious response | 70 dB |
| Intermodulation | 68 dB (Marine), 65 dB (PMR) |
| Audio output power (at 10% distortion, 8 ohm load) | 200 mW (Marine), 350 mW (PMR) |
Environmental
| ATEX approval rating | II 2G Ex ib IIA T3 Gb |
| Waterproof rating | IPX7 |
| Military standard | MIL-STD 810 F (also meets 810 C, D and E) |
