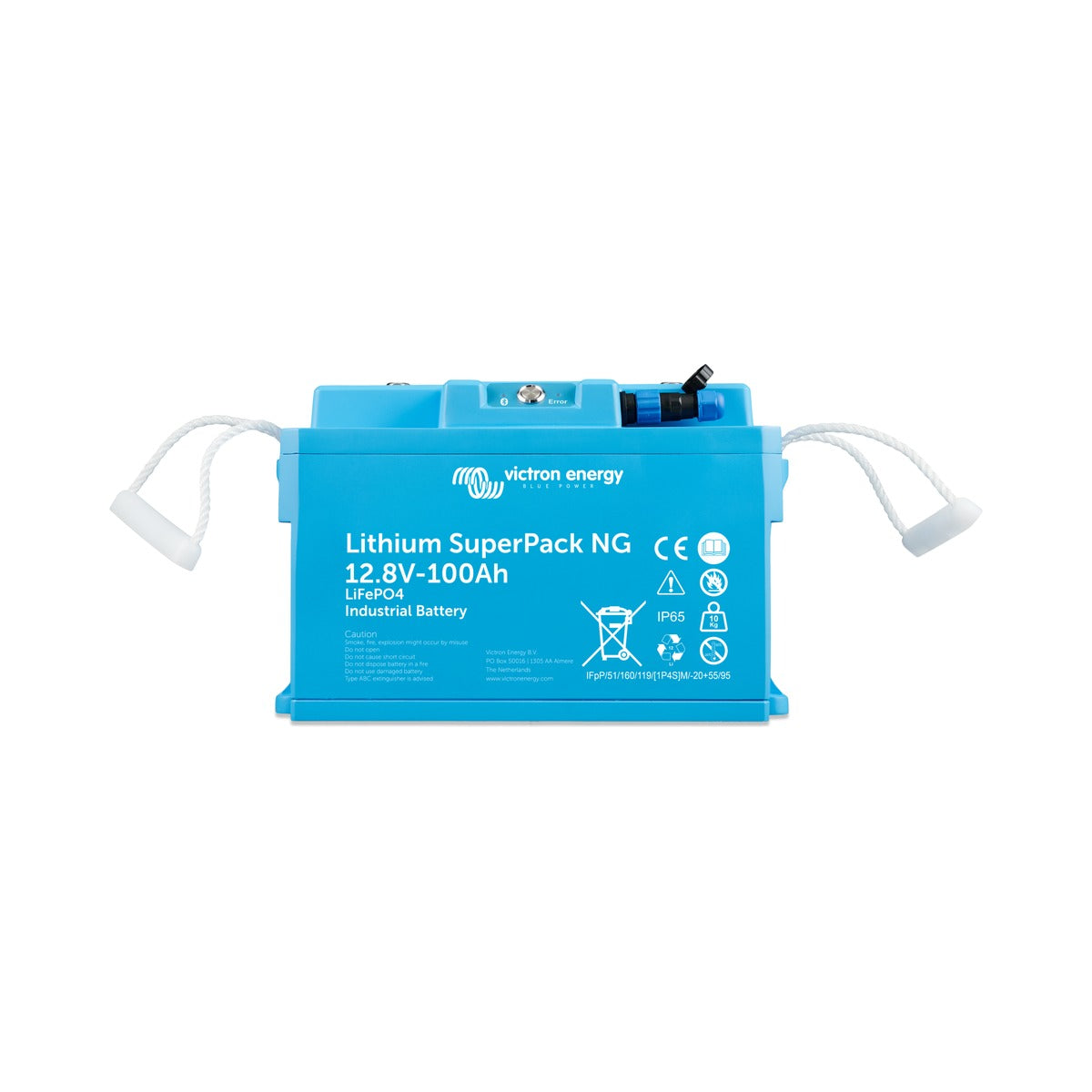

Victron Lithium SuperPack NG 12.8V/100Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack NG 12.8V 100Ah is the next-generation SuperPack, a LiFePO4 (lithium iron phosphate) battery that keeps the integrated BMS, monitor, and on/off switch of the range while adding Bluetooth, self-heating, and a much higher current rating. It is a drop-in replacement for a lead-acid leisure battery and is dimensionally compatible with BCI Group 49.
Bluetooth Smart allows wireless configuration, monitoring, and firmware updates through the VictronConnect app, with Instant Readout showing state of charge, temperature, warnings, and alarms without connecting. An integrated self-heating function keeps the cells above the safe charging temperature in cold conditions: below 0°C charging is suspended while the heater warms the cells, then resumes automatically. The pack supports 200 A continuous discharge, well beyond the standard SuperPack range, and adds an External Feedback Signal output for redundant system protection or to trigger a charger.
Round-trip efficiency is around 93 per cent, and cycle life reaches 2500 cycles at 80 per cent depth of discharge, 3000 at 70 per cent, and 5000 at 50 per cent. Batteries can be paralleled without limit, though total system current should not exceed what a single battery can safely interrupt; series connection is not permitted. The pack is rated IP65.
PRODUCT DETAILS
- Bluetooth Smart for monitoring, configuration, and firmware updates via VictronConnect, with Instant Readout
- Integrated BMS, battery monitor, and on/off push button; no external BMS needed
- Self-heating function for safe charging in cold conditions; charging resumes automatically once warm
- 200 A maximum continuous discharge current; 100 A maximum charge current
- Round-trip efficiency of approximately 93 per cent
- Cycle life of 2500 at 80 per cent DoD, 3000 at 70 per cent, and 5000 at 50 per cent depth of discharge
- External Feedback Signal (EFS) output for redundant protection or to trigger a charger
- IP65 rated and dimensionally compatible with BCI Group 49; parallel connection without limit
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 1280 Wh |
| Maximum continuous discharge current | 200 A |
| Bluetooth | Yes, VictronConnect App |
| Protection class (IP) | IP65 |
Electrical
| Round trip efficiency | 93 % |
| Internal resistance | 2 mΩ |
Discharge
| Recommended continuous discharge current | 50 A |
| End of discharge voltage | 11.2 V |
Charge
| Charge voltage | 14 V recommended (range 13.5 V to 14.2 V) |
| Float voltage | 13.5 V |
| Maximum charge current | 100 A |
| Recommended charge current | 30 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
| Cycle life at 70% DoD | 3000 cycles |
| Cycle life at 50% DoD | 5000 cycles |
BMS / protection
| Battery BMS interface | External Feedback Signal (EFS), limited to 250 mA |
| Alarm feature | Software protections: overvoltage, undervoltage, overtemperature, undertemperature, overcurrent; hardware short-circuit protection above 800 A |
Operating conditions
| Operating temperature (discharge) | -30°C to +60°C |
| Operating temperature (charge) | -30°C to +60°C (below 0°C charging is suspended while the self-heating function warms the cells) |
| Storage temperature | Recommended 10°C to 35°C; expanded -40°C to +65°C |
| Humidity (non-condensing) | 90 % |
Physical
| Power connection / terminals | M8 female threaded insert, 20 mm, including nut screws |
| Dimensions (h×w×d) | 273 x 173 x 173 mm (datasheet L x W x H; compatible with BCI Group 49; add 15 mm height for terminal screws) |
| Weight | 10.7 kg |
