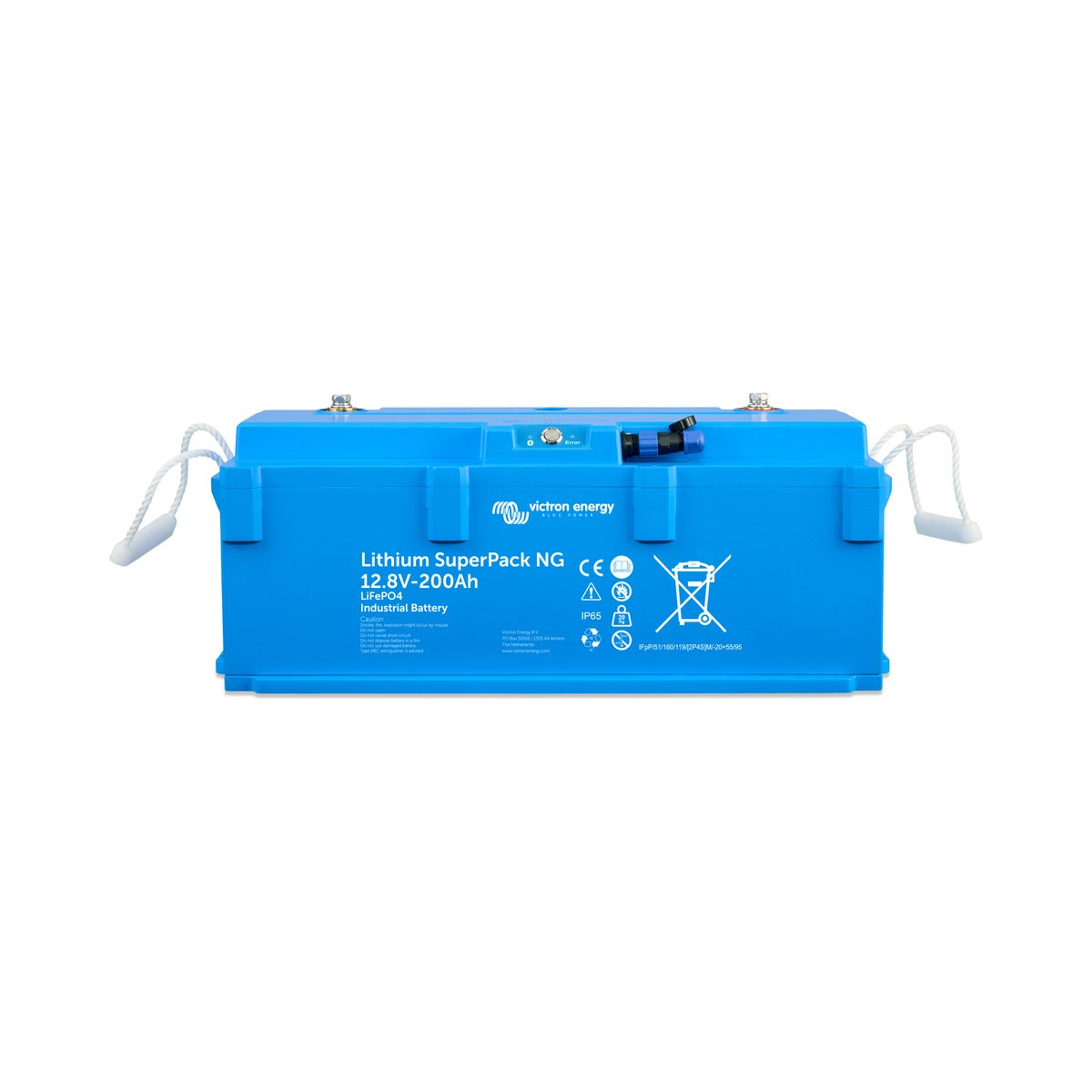

Victron Lithium SuperPack NG 12.8V/200Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack NG 12.8V 200Ah is the high-capacity 12 V model in the next-generation SuperPack range, a LiFePO4 (lithium iron phosphate) battery with an integrated BMS, battery monitor, on/off switch, Bluetooth, and self-heating. It is a drop-in replacement for a large lead-acid leisure battery and stores 2560 Wh of nominal energy.
Bluetooth Smart provides wireless configuration, monitoring, and firmware updates through the VictronConnect app, with Instant Readout for state of charge, temperature, and alarms without connecting. The self-heating function allows safe charging in cold conditions: below 0°C charging is suspended while the heater warms the cells, then resumes automatically. The 200Ah model supports a very high 400 A continuous discharge and 200 A continuous charging, with a low 1 mΩ internal resistance, so it comfortably feeds large inverters and high-draw domestic systems.
Round-trip efficiency is around 93 per cent, and cycle life reaches 2500 cycles at 80 per cent depth of discharge, 3000 at 70 per cent, and 5000 at 50 per cent. Batteries can be paralleled without limit, though total system current should not exceed what a single battery can safely interrupt; series connection is not permitted. The pack weighs 20.5 kg and is rated IP65.
PRODUCT DETAILS
- Bluetooth Smart for monitoring, configuration, and firmware updates via VictronConnect, with Instant Readout
- Integrated BMS, battery monitor, and on/off push button; no external BMS needed
- Self-heating function for safe charging in cold conditions; charging resumes automatically once warm
- 2560 Wh of usable energy with a 400 A continuous discharge rating and low 1 mΩ internal resistance
- 200 A maximum charge current for fast recharging
- Round-trip efficiency of approximately 93 per cent
- Cycle life of 2500 at 80 per cent DoD, 3000 at 70 per cent, and 5000 at 50 per cent depth of discharge
- IP65 rated with an External Feedback Signal output; parallel connection without limit
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 200 Ah |
| Nominal energy | 2560 Wh |
| Maximum continuous discharge current | 400 A |
| Bluetooth | Yes, VictronConnect App |
| Protection class (IP) | IP65 |
Electrical
| Round trip efficiency | 93 % |
| Internal resistance | 1 mΩ |
Discharge
| Recommended continuous discharge current | 100 A |
| End of discharge voltage | 11.2 V |
Charge
| Charge voltage | 14 V recommended (range 13.5 V to 14.2 V) |
| Float voltage | 13.5 V |
| Maximum charge current | 200 A |
| Recommended charge current | 60 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
| Cycle life at 70% DoD | 3000 cycles |
| Cycle life at 50% DoD | 5000 cycles |
BMS / protection
| Battery BMS interface | External Feedback Signal (EFS), limited to 250 mA |
| Alarm feature | Software protections: overvoltage, undervoltage, overtemperature, undertemperature, overcurrent; hardware short-circuit protection above 800 A |
Operating conditions
| Operating temperature (discharge) | -30°C to +60°C |
| Operating temperature (charge) | -30°C to +60°C (below 0°C charging is suspended while the self-heating function warms the cells) |
| Storage temperature | Recommended 10°C to 35°C; expanded -40°C to +65°C |
| Humidity (non-condensing) | 90 % |
Physical
| Power connection / terminals | M8 female threaded insert, 20 mm, including nut screws |
| Dimensions (h×w×d) | 466 x 198 x 173 mm (datasheet L x W x H; add 15 mm height for terminal screws) |
| Weight | 20.5 kg |
