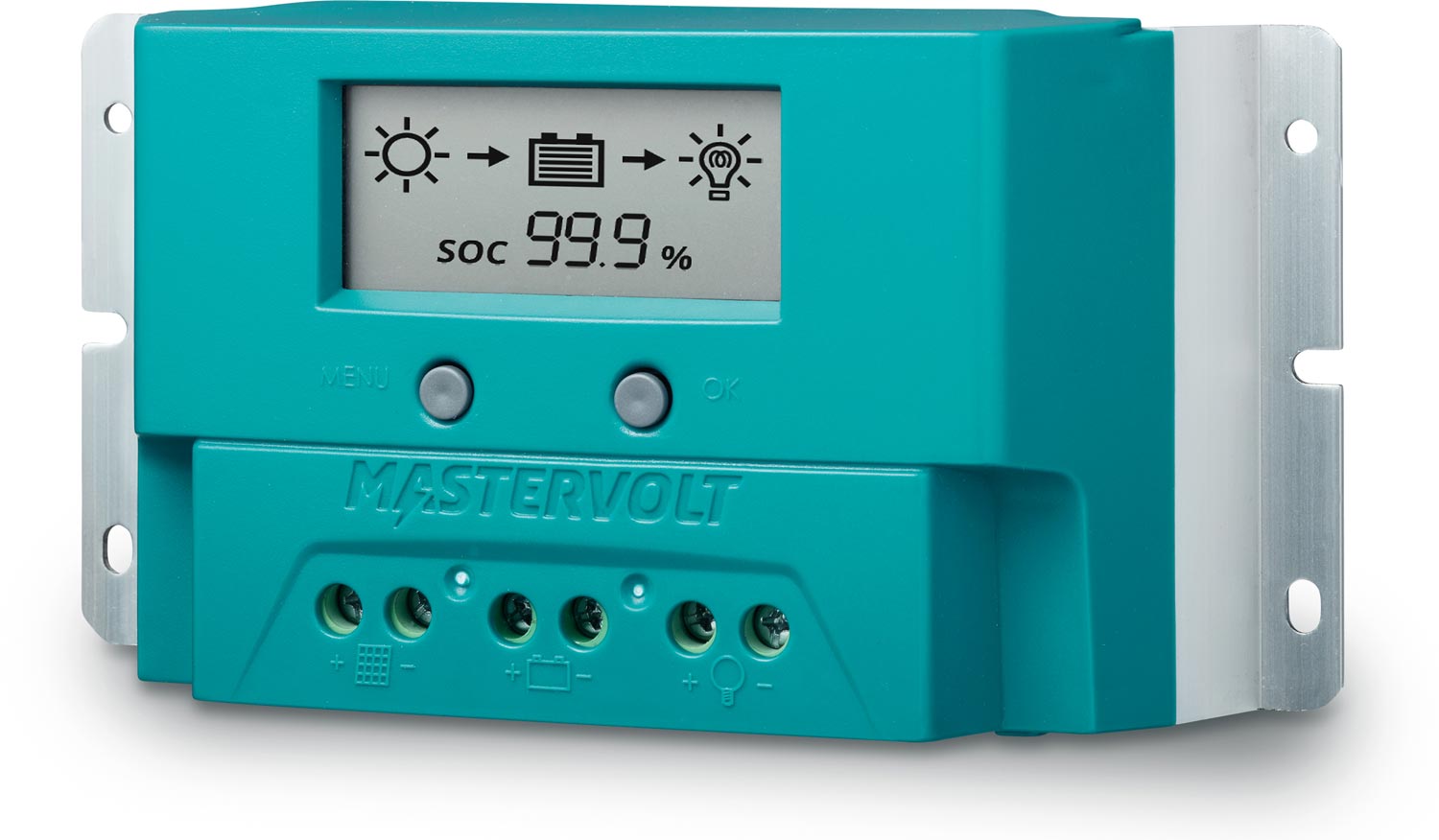

Mastervolt ChargeMaster Solar Regulator SCM40 PWM (12V / 24V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The SCM40 PWM is a dependable solar charge regulator that uses Pulse Width Modulation to charge your batteries from solar energy. It suits both 36-cell panels in 12V systems and 72-cell panels in 24V systems, automatically detecting the battery voltage, and is rated for a higher 40A charge current to support larger panel arrays.
Built for marine and mobile environments, the SCM40 PWM is protected against water spray, copes with high ambient temperatures and is compatible with common negative grounding. It works with all types of lead-acid battery (AGM, Gel and flooded) at either 12V or 24V.
A large backlit display keeps the solar yield, battery voltage and charge status clearly in view, and a switchable output with an evening and night lighting function lets it control a load such as cabin or deck lighting. An optional battery temperature sensor is available for improved charging accuracy.
PRODUCT DETAILS
- 40A PWM (Pulse Width Modulation) solar charge regulator
- Automatic 12/24 V battery voltage detection
- Suitable for 36-cell panels (12V) and 72-cell panels (24V)
- Recommended PV power up to 720 Wp (12V) or 1440 Wp (24V)
- Suitable for all lead-acid battery types (AGM, Gel, flooded)
- Switchable output (max. 40 A) with evening/night lighting function
- Common negative grounding, ideal for marine and mobile use
- Large backlit LCD display
- Robust IP23 casing, protected against water spray
- Optional battery temperature sensor (product code 41500500)
- SCM40 PWM solar charge regulator
- User and installation manual
No compatible transducers listed for this product.
No compatible products found.
Technical specifications
| System voltage (battery) | 12/24 V auto select |
| Nominal charge current | 40 A |
| Battery types | AGM, Gel, flooded |
| Battery temperature sensor | Optional, product code 41500500 |
| Switchable output (max. current) | 40 A |
| Energy consumption (night) | < 7 mA |
| Panel type (12 V system) | 36 cells |
| Panel type (24 V system) | 72 cells |
| Max. PV current (Impp) | 40 A |
| Recommended PV power (12 V system) | 720 Wp |
| Recommended PV power (24 V system) | 1440 Wp |
| Technology | PWM (Pulse Width Modulation) |
| Temperature range (ambient) | -20 C to 50 C, derating power > 40 C |
| Cable size | Max. 16 mm2 |
| Protections | Over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity and HV transients |
| Relative humidity | 95 % non-condensing |
General specifications
| Cooling | Passive |
| Display/read-out | Backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting |
| Grounding | Common negative grounding |
| Protection degree | IP23 |
Physical
| Dimensions, hxwxd | 98 x 189 x 53 mm |
| Weight | 0.5 kg |
