Mastervolt GMDSS Panel for Mastervolt Mass 24/50-2 Battery Charger
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

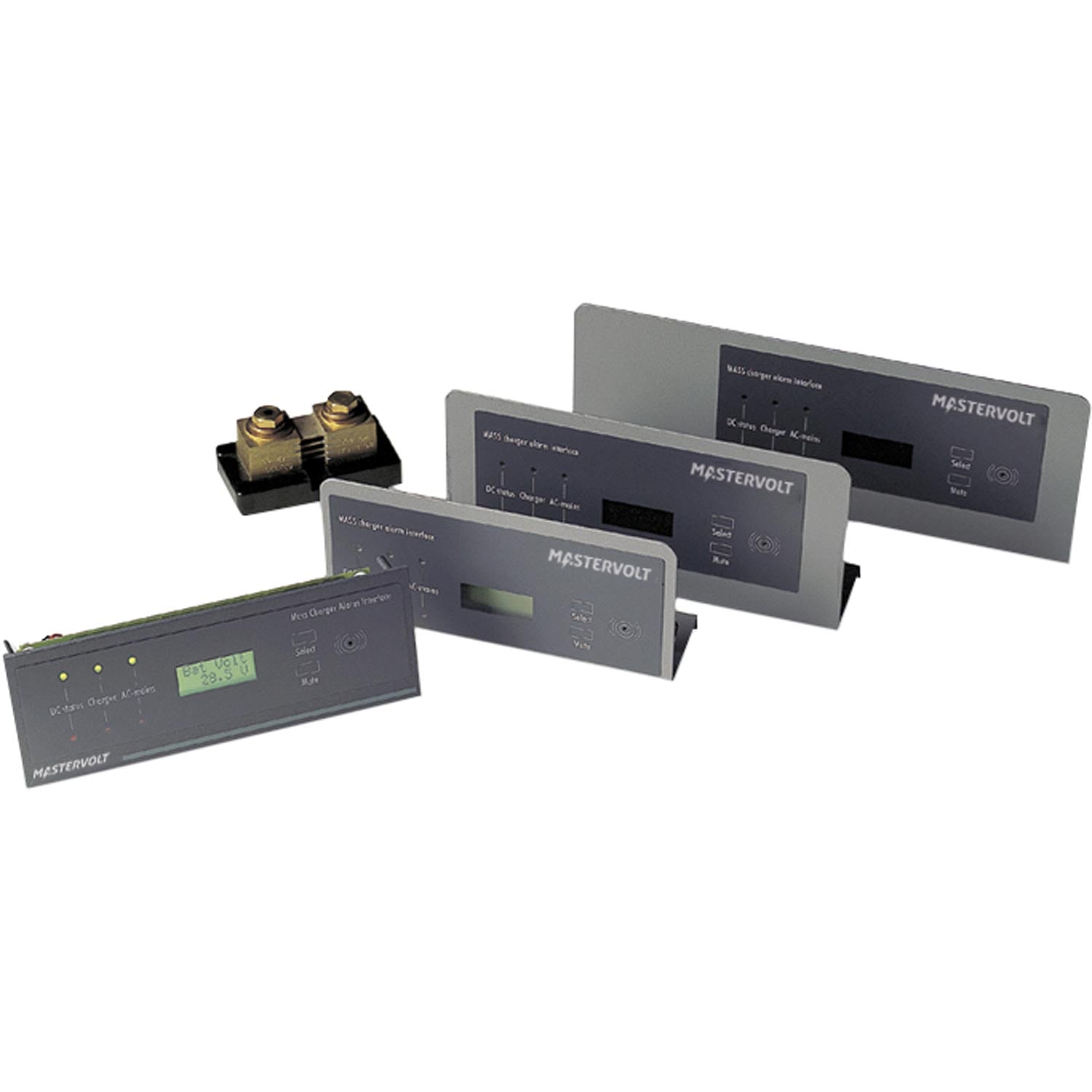

The Mastervolt GMDSS front panel for Mass 24/50-2 is a digital Volt and Ampere meter that integrates into the front of the Mass 24/50-2 battery charger. It gives professional users a front display with GMDSS alarm functions, monitoring the status of the battery and battery charger on a 12 or 24 V DC system. Battery voltage and current are shown on the panel, with status LEDs and potential-free alarm contacts for DC voltage, charger and AC mains alarms.
GMDSS stands for Global Maritime Distress and Safety System, an internationally agreed set of safety procedures, equipment and communication protocols required under the SOLAS (Safety Of Life At Sea) convention, using DSC and satellite communication. The panel is supplied with an interface, a 500 A / 50 mV shunt and a user manual, and the system automatically detects whether it is fitted to a 12 V or 24 V installation.
PRODUCT DETAILS
- GMDSS front display for the Mass 24/50-2 battery charger
- Monitors the status of the battery and battery charger (12/24 V DC)
- LCD display with status LEDs for DC voltage, charger and AC mains alarms
- Potential-free switch-over alarm contacts (max. switching current 1 A)
- Automatically detects a 12 V or 24 V system
- Voltage range 0 to 62.7 V DC with 0.1 V resolution
- Supplied with a 500 A / 50 mV shunt
- Supply voltage 8 to 32 V DC
- Meets GMDSS requirements under the SOLAS convention
- Delivered with interface, shunt and user manual
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General specifications
| Function | Monitoring of the status of the battery and battery charger (12/24 V DC) |
| Supply voltage | 8-32 V DC |
| Safe compass distance | Standard 1 meter; steering: 0.3 mm |
| Display/read-out | LCD display and status LEDs for DC voltage alarm, charger alarm and AC mains alarm |
| Current | 110 mA (12 V) / 65 mA (24 V), normal operation mode without activated relays. Current accuracy: +/- 2 A (< 45 A), +/- 4 A (> 45 A) |
| Alarms | Potential-free switch over contacts for DC voltage alarm, charger alarm and AC mains alarm. Max. switching current: 1 A |
| Dimensions | To be integrated in the battery charger |
| Dimensions shunt, hxwxd | M8, 84 x 44 x 44 mm |
| Weight | Excl. shunt: 500 g, incl. shunt: 1.1 kg |
| Delivered with | Interface, shunt, user manual |
Technical specifications
| Voltage range | 0 - 62.7 V DC (0.1 V resolution); a 12 V or 24 V system is detected automatically |
| Voltage accuracy | +/- 0.2 V (12 V), +/- 0.4 V (24 V) |
| Shunt specification | 500 Amp / 50 mV (included with the delivery) |
| Current measurement range | -500 ... 500 A |
