Mastervolt
Mastervolt MLI Ultra Relay and Fuse Connection Kit (12V)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

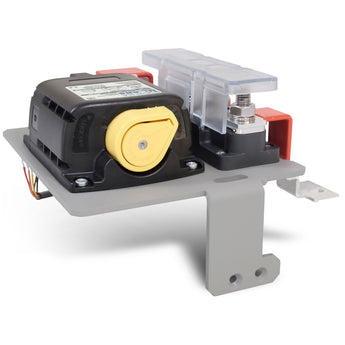

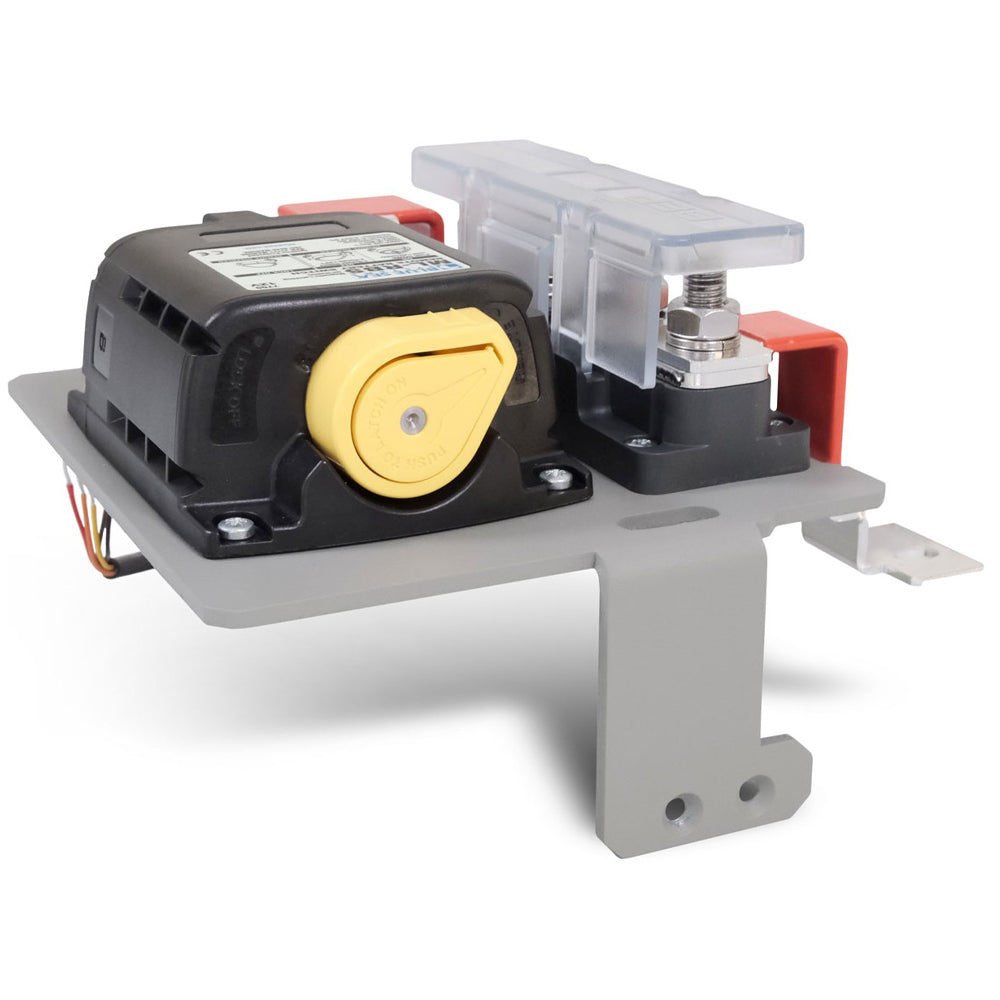

The Mastervolt MLI Ultra Relay and Fuse Connection Kit (12V) lets you install all the required safety accessories for an MLI Ultra battery in a safe, efficient and compact way, mounted directly on top of the battery. The kit arrives pre-assembled on an easy-to-mount bracket, so a complete, safe installation can be achieved in just a few simple steps without the need for power tools.
It is a perfect fit for the MLI Ultra 12/3000 and 12/6000 batteries and includes a mounting bracket, a 12 V DC 500 A safety relay, a T-fuse holder and two busbar conductors. The Class T-fuse itself is not supplied; choose the correct rating between 225 and 400 A to match the requirements of your installation. The kit carries a maximum current rating of 300 A.
PRODUCT DETAILS
- Installs all required MLI Ultra safety accessories in one compact kit
- Perfect fit for MLI Ultra 12/3000 and 12/6000 batteries
- Pre-assembled on an easy-to-mount bracket; no power tools required
- Includes 12 V DC 500 A safety relay, T-fuse holder and two busbar conductors
- Maximum current 300 A; maximum voltage 64 V
- Operating temperature -10 °C to 50 °C
- Class T-fuse not included; order 225-400 A rating to suit the installation
- Mounting bracket
- Safety relay (12 V DC, 500 A)
- T-fuse holder
- Busbar conductor (2x)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Compatibility | MLI Ultra 12/3000, MLI Ultra 12/6000 |
| Max. current | 300 A |
| Operating temperature | -10 °C to 50 °C |
| Compatible fuse rating | 225 - 400 A Class T-fuse (not included) |
| Delivered with | Mounting bracket, safety relay, T-fuse holder, busbar conductor (2x) |
Technical
| Safety relay | 12 V DC - 500 A |
| Max. voltage | 64 V |
Physical
| Dimensions | Total battery height increases by 65 mm (2.5 inch) |
| Weight | Total weight increases by 2 kg |
