Discontinued
This product has been discontinued by B&G and is no longer available to buy.
B&G

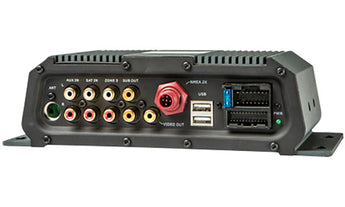

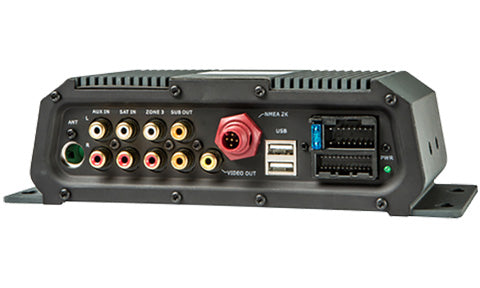

Lowrance, Simrad, B&G SonicHub2 audio server pack with Bluetooth
000-12302-001
Lowrance, Simrad and B&G SonicHub2 marine audio server with Bluetooth. A drop-in replacement for the original SonicHub, sharing its footprint, connections and on-screen user interface.
Description
New SonicHub®2 Marine Audio Server. SonicHub2 is a drop-in replacement for the existing SonicHub. Utilising the same footprint, same connections and Same User Interface on Lowrance/Simrad/B&G displays. SonicHub2 will operate on the newly implemented NMEA 2000® Audio/Entertainment standard.
PRODUCT DETAILS
- Drop-in replacement for the original SonicHub
- Same footprint, connections and user interface
- Integrated Bluetooth streaming from phone or tablet
- Built-in AM/FM tuner and dual USB playback
- Runs on the NMEA 2000 audio/entertainment standard
- Controlled from compatible Lowrance, Simrad and B&G displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Audio
| Amplifier output | 50 W per channel (200 W total) |
| Signal-to-noise ratio | 95 dB |
| Audio zones | Zone 1 and Zone 2, plus subwoofer pre-out |
Sources
| Tuner | AM/FM (EU: FM 87.5-108.0 MHz, AM 531-1611 kHz) |
| USB | 2 x USB, 32 GB maximum |
| Bluetooth | Integrated |
Connectivity
| Network | NMEA 2000 |
| Video output | Composite, PAL and NTSC |
Electrical
| Supply voltage | 10 to 16 V DC |
| Current draw | Under 250 mA muted, under 20 A maximum |
Physical
| Dimensions | 107.2 x 225.0 x 62.0 mm (4.2 x 8.9 x 2.4 in) |
| Weight | 0.88 kg (1.96 lbs) |
| Waterproof rating | IPX2 |
Environment
| Operating temperature | -20 to 60 C (-4 to 140 F) |
