Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

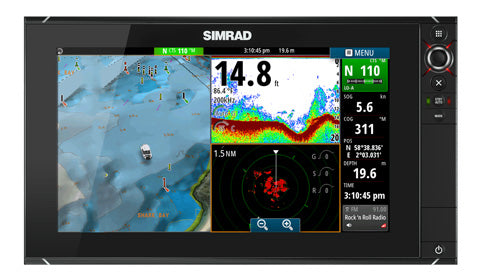

Simrad NSS16 evo2 Combo 16-inch Multi-function Display
000-11196-001
The Simrad NSS16 evo2 is a 16-inch HD multifunction display combining a widescreen multi-touch screen with keypad and rotary control. It includes a built-in GPS receiver, CHIRP sounder and StructureScan HD support. Dual Ethernet, NMEA 2000 and HDMI output allow integration with radar, autopilot and sonar.
Description
The NSS16 evo2 combines an easy-to-use, 16-inch chartplotter/multifunction display with built-in GPS positioning, StructureScan® HD, CHIRP-enabled broadband sonar, and powerful expansion capabilities.
Standalone in a centre console or fully integrated in a modern glass bridge, the widescreen NSS16 evo2 is well suited to sportfishing and power boats.
PRODUCT DETAILS
- 16-inch HD widescreen multi-touch display (1366 x 768)
- Combined multi-touch screen and keypad/rotary control
- Built-in 10 Hz GPS receiver (WAAS, EGNOS, MSAS)
- Built-in CHIRP sounder with StructureScan HD and ForwardScan support
- Dual Ethernet plus NMEA 2000 networking, with HDMI video output
- Full autopilot control and commissioning, plus AIS support
- IPX6 and IPX7 waterproof rating
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Screen size | 16 inch |
| Resolution | 1366 x 768 px (HD) |
| Brightness | 1000 nits |
| Touchscreen | Multi-touch screen with keypad and rotary control |
Electrical
| Supply voltage | 9 to 31.2 V DC |
| Maximum power consumption | 33 W |
| Recommended fuse rating | 5 A |
Environment
| Operating temperature range | -15 C to +55 C |
| Storage temperature range | -20 C to +60 C |
| Waterproof rating | IPX6 and IPX7 |
Connectivity
| GPS receiver | Internal 10 Hz, 32 channels; WAAS, EGNOS, MSAS |
| Ethernet | 2 ports (5-pin) |
| NMEA 2000 | Micro-C, 1 LEN |
| Wi-Fi | Compatible with external WIFI-1 module |
| HDMI output | Yes (fixed at 1366 x 768) |
Sonar
| Echosounder | Integrated CHIRP downscan and StructureScan/ForwardScan; compatible with SonarHub, BSM-3, BSM-2, BSM-1 |
Physical
| Weight (display only) | 3.264 kg |
| Mounting type | Supplied bracket, panel or flush mount |
Approvals
| Warranty | 2 years |
No videos available for this product.
What size and resolution is the NSS16 evo2 screen?
It has a 16-inch multi-touch display with a 1366 x 768 pixel (HD) resolution and 1000 nits brightness, operated by touchscreen, keypad and rotary control.
Does it have built-in sonar?
Yes. It has an integrated CHIRP echosounder with DownScan and StructureScan/ForwardScan support, and is compatible with the SonarHub and BSM-3, BSM-2 and BSM-1 sonar modules.
Does the NSS16 evo2 have a built-in GPS?
Yes. It has an internal 10 Hz, 32-channel GPS receiver with WAAS, EGNOS and MSAS support.
How does it network with other devices?
It has two Ethernet ports (5-pin), a NMEA 2000 connection (Micro-C, 1 LEN), an HDMI output and is compatible with the external WIFI-1 module.
What is the waterproof rating and supply voltage?
The unit is rated to IPX6 and IPX7 and runs on a 9 to 31.2 V DC supply, drawing up to 33 W.
What warranty does it come with?
The NSS16 evo2 is supplied with a 2 year warranty.
