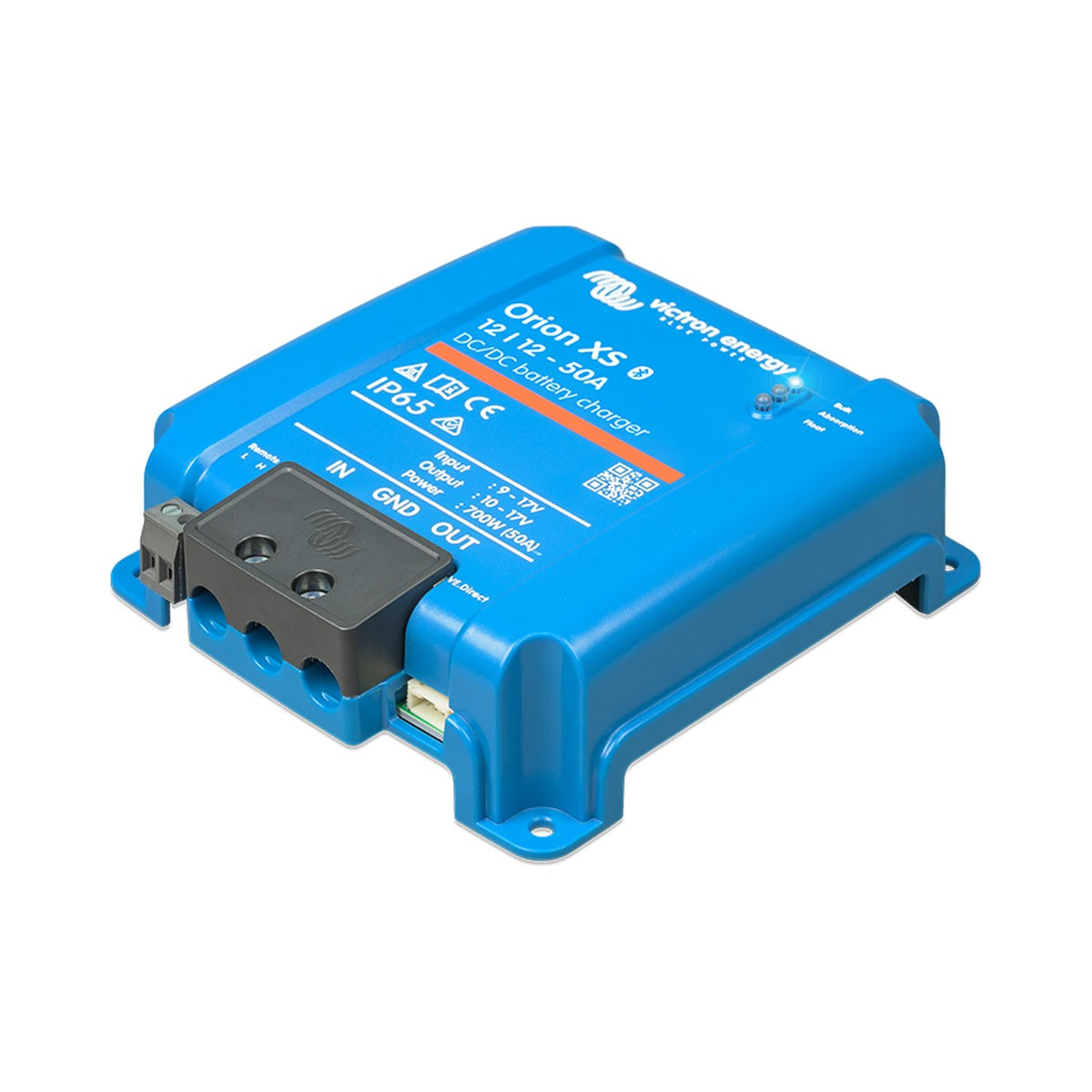

Victron Orion XS 12/12-50A DC-DC Battery Charger
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Orion XS 12/12-50A is a high-efficiency DC-DC battery charger for dual battery systems in vehicles and boats with a 12V input and 12V output. It charges a service battery from the starter battery or alternator and is engineered for systems fitted with a Euro 5 or Euro 6 smart alternator, where the charging voltage is often too low to fully charge the service battery, and for long cable runs where voltage drop reduces charge voltage at the battery.
An integrated engine shutdown detection mechanism establishes whether the engine is running and only activates the charger when the alternator is supplying power, protecting the starter battery from deep discharge. The adaptive four-stage charge algorithm (bulk, absorption, float and storage) shortens the absorption time after shallow discharges and extends it after deep discharges, with fully programmable charge profiles and eight pre-programmed battery settings for lead-acid and lithium batteries.
Built-in Bluetooth Smart, a VE.Direct port and VE.Smart Networking allow the charger to be configured and monitored through the VictronConnect app and to receive voltage, temperature and current data from a compatible monitor such as a SmartShunt or BMV. The unit is rated IP65, is cooled by natural convection without a fan, and an unlimited number of units can be connected in parallel to increase output current.
PRODUCT DETAILS
- 12V input, 12V output DC-DC battery charger, up to 50A and 700W
- Adaptive four-stage charge algorithm (bulk, absorption, float, storage)
- Fully programmable charging with eight pre-programmed battery profiles for lead-acid and lithium
- Engine shutdown detection for use with Euro 5 and Euro 6 smart alternators
- Built-in Bluetooth Smart, VE.Direct port (DVCC) and VE.Smart Networking
- Adjustable charge current in 0.1A steps via VictronConnect
- IP65 rated, dust-tight and protected against heavy rain, fanless natural convection cooling
- Can be paralleled and switched remotely via remote on/off or VictronConnect
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Input voltage range | 9-17 V |
| Output voltage (nominal) | 12 V (adjustable 10-17 V) |
| Continuous output current | Up to 50 A |
| Continuous output power | 700 W |
| Galvanic isolation | Non-isolated |
| Bluetooth | Yes |
| Protection category | IP65 |
Input
| Input voltage range | 9-17 V |
| Input current setting range | 1-50 A |
Output
| Output voltage adjust range | 10-17 V |
| Output voltage tolerance | +/- 0.25 % (max) |
| Output voltage noise | 10 mV rms |
| Output current setting range | 1-50 A |
| Maximum constant short-circuit current | 50 A |
| Continuous output power up to 40 C | 700 W (at 14 V) |
| Maximum efficiency | 98.5 % |
Charger
| Charge algorithm | Adaptive four-stage (bulk, absorption, float, storage) |
| Battery presets | Eight pre-programmed settings, fully programmable |
| Battery types | Lead-acid and lithium |
| Charge current step size | 0.1 A |
| Engine shutdown detection | Yes |
| Can be used as power supply | Yes, output voltage set with VictronConnect |
General
| No-load current consumption | < 100 mA |
| Standby current consumption | < 1.5 mA |
| Bluetooth | Yes (VictronConnect / Bluetooth Smart) |
| VE.Smart Networking | Yes |
| VE.Direct | Yes (including DVCC) |
| Remote on/off | Yes |
| Parallel operation | Yes, unlimited number of units |
| Cooling | Natural convection (fanless) |
Environmental
| Operating temperature range | -20 to +60 C (derating 1.5 % per C above 40 C) |
| Humidity | 95 %, non-condensing |
| Maximum altitude | 2000 m |
| Protection category | IP65 |
Physical
| DC connection | Screw terminals |
| Maximum cable cross-section | 4 AWG (21.2 mm2) |
| Weight | 0.330 kg |
| Dimensions (h x w x d) | 137.3 x 123.1 x 40 mm |
Conformance
| Safety | IEC 62477-1 |
| EMC | EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003 |
| Automotive Directive | ECE R10-6 |
