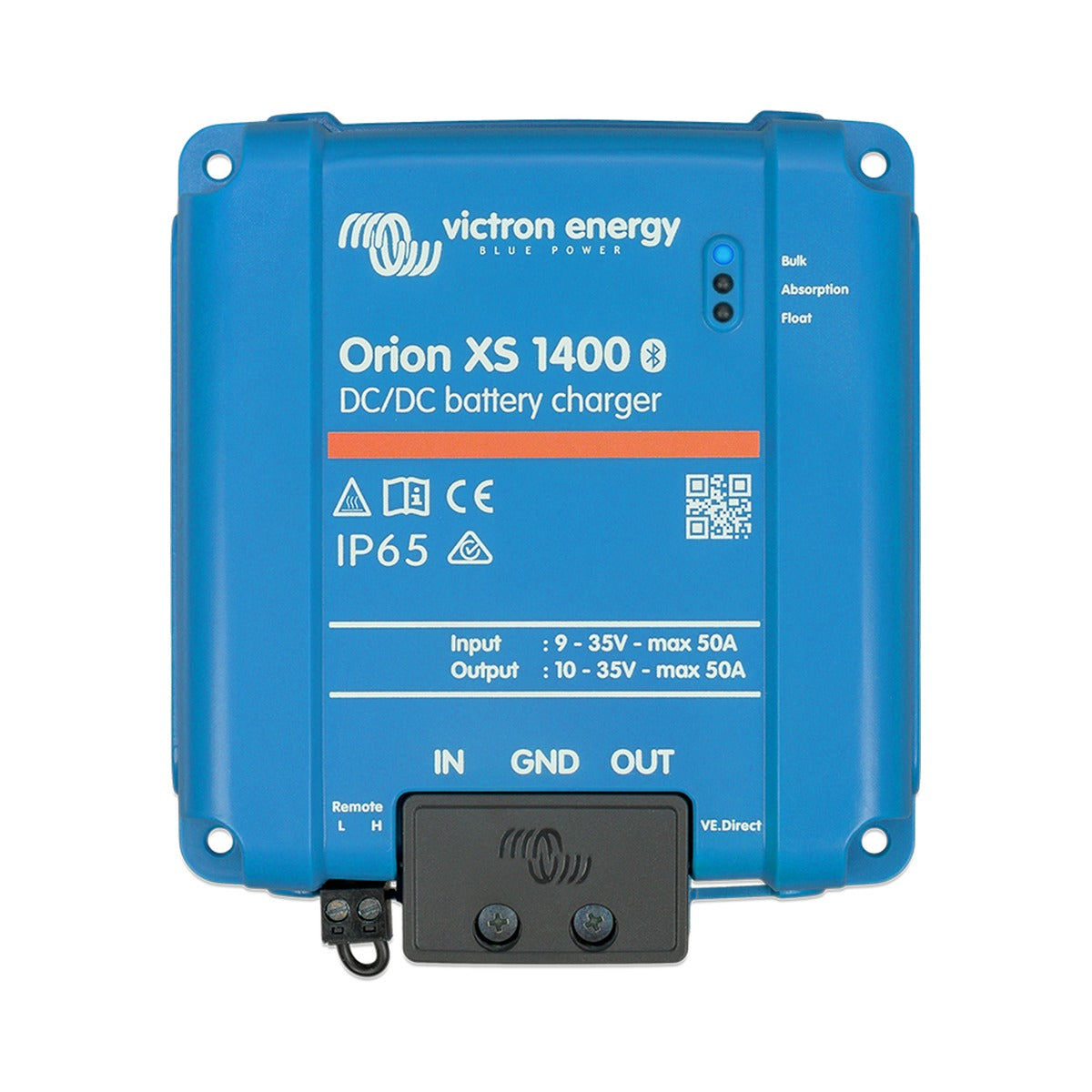

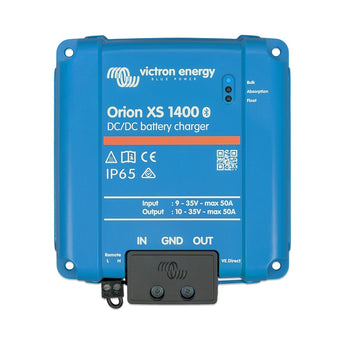

Victron Orion XS 1400 DC-DC Battery Charger
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Orion XS 1400 is a wide input range DC-DC battery charger for dual battery systems in vehicles and boats, suitable for both 12V and 24V installations thanks to its 9 to 35V input range and 10 to 35V adjustable output. It charges a service battery from the starter battery or alternator and delivers up to 1400W, making it well suited to systems with a Euro 5 or Euro 6 smart alternator that supplies a charging voltage too low to fully charge the service battery, and to long cable runs where voltage drop reduces charge voltage at the battery.
An integrated engine shutdown detection mechanism establishes whether the engine is running and only activates the charger when the alternator is supplying power, protecting the starter battery from deep discharge. The adaptive four-stage charge algorithm (bulk, absorption, float and storage) shortens the absorption time after shallow discharges and extends it after deep discharges, with fully programmable charge profiles and eight pre-programmed battery settings for lead-acid and lithium batteries. An automatic buck-boost stage keeps the output voltage stable and independent of the input voltage.
Built-in Bluetooth Smart, a VE.Direct port and VE.Smart Networking allow the charger to be configured and monitored through the VictronConnect app and to receive voltage, temperature and current data from a compatible monitor such as a SmartShunt or BMV. The unit is rated IP65, is cooled by natural convection without a fan, and an unlimited number of units can be connected in parallel to increase output current.
PRODUCT DETAILS
- Wide 9-35V input range, 10-35V adjustable output, suitable for 12V and 24V systems
- Up to 50A and 1400W output with automatic buck-boost control
- Adaptive four-stage charge algorithm (bulk, absorption, float, storage)
- Fully programmable charging with eight pre-programmed battery profiles for lead-acid and lithium
- Engine shutdown detection for use with Euro 5 and Euro 6 smart alternators
- Built-in Bluetooth Smart, VE.Direct port (DVCC) and VE.Smart Networking
- IP65 rated, dust-tight and protected against heavy rain, fanless natural convection cooling
- Can be paralleled and switched remotely via remote on/off or VictronConnect
- Orion XS 1400 DC-DC battery charger with terminal block for remote on/off connection
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Input voltage range | 9-35 V |
| Output voltage (nominal) | 12 V or 24 V (adjustable 10-35 V) |
| Continuous output current | Up to 50 A |
| Continuous output power | 1400 W |
| Galvanic isolation | Non-isolated |
| Bluetooth | Yes |
| Protection category | IP65 |
Input
| Input voltage range | 9-35 V |
| Input current setting range | 1-50 A |
Output
| Output voltage adjust range | 10-35 V |
| Output voltage tolerance | +/- 0.25 % (max) |
| Output voltage noise | 10 mV rms |
| Output current setting range | 1-50 A |
| Maximum constant short-circuit current | 50 A |
| Continuous output power up to 40 C | 1400 W (at 28 V) |
| Maximum efficiency | 98.5 % |
Charger
| Charge algorithm | Adaptive four-stage (bulk, absorption, float, storage) |
| Battery presets | Eight pre-programmed settings, fully programmable |
| Battery types | Lead-acid and lithium |
| Charge current step size | 0.1 A |
| Engine shutdown detection | Yes |
| Can be used as power supply | Yes, output voltage set with VictronConnect |
General
| No-load current consumption | < 100 mA |
| Standby current consumption | < 1.5 mA |
| Bluetooth | Yes (VictronConnect / Bluetooth Smart) |
| Bluetooth power and frequency | +4 dBm, 2402-2480 MHz |
| VE.Smart Networking | Yes |
| VE.Direct | Yes (including DVCC) |
| Parallel operation | Yes, unlimited number of units |
| Cooling | Natural convection (fanless) |
Environmental
| Operating temperature range | -20 to +60 C (derating 1.5 % per C above 40 C) |
| Humidity | 95 %, non-condensing |
| Maximum altitude | 2000 m |
| Protection category | IP65 |
Physical
| DC connection | Screw terminals |
| Maximum cable cross-section | 4 AWG (21.2 mm2) |
| Weight | 0.520 kg |
| Dimensions (h x w x d) | 138.1 x 124.4 x 53 mm |
Conformance
| Safety | IEC 62477-1 |
| EMC | FCC 15B, ICES-003, EN 300 328, EN 301 489-1, EN 301 489-17 |
| Automotive Directive | ECE R10-6 |
