This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine
Raymarine a128 8 inch Wi-Fi MFD Pack with DownVision CPT-100 and SideVision CPT-200
Description

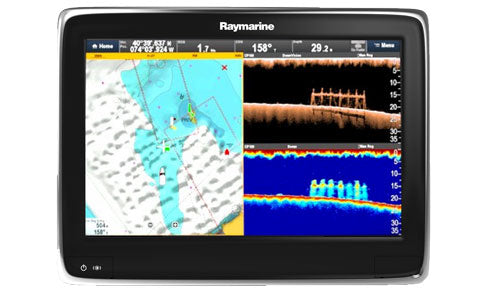

This Raymarine a128 Wi-Fi multifunction display pack combines the a128 12.1 inch touchscreen MFD with two transducers - a DownVision CPT-100 and a SideVision CPT-200 - for a complete navigation and dual-sonar fishfinding system in a single package.
The a128 brings together a sunlight-viewable 12.1 inch touchscreen chartplotter with built-in dual-channel CHIRP sonar (CHIRP DownVision plus conical CHIRP fish targeting), built-in Wi-Fi, 50-channel GPS and the LightHouse II operating system. The supplied CPT-100 transom mount transducer drives the built-in CHIRP DownVision sonar, while the CPT-200 transducer adds Raymarine SideVision imaging when used with a compatible SideVision sonar module.
Please note: the PIM title describes this pack as 8 inch, but the a128 is a 12.1 inch display. The 8 inch reference appears to be a labelling error and should be corrected.
PRODUCT DETAILS
- Pack pairing the a128 12.1 inch Wi-Fi touchscreen MFD with DownVision CPT-100 and SideVision CPT-200 transducers
- a128 features built-in dual-channel CHIRP DownVision and conical CHIRP sonar
- Built-in Wi-Fi, 50-channel GPS and LightHouse II operating system
- CPT-100 transom mount transducer drives the built-in CHIRP DownVision sonar
- CPT-200 transducer adds SideVision imaging with a compatible SideVision module
- Networks over RayNet and SeaTalkng with radar, autopilot, AIS and instruments
- Note: PIM title says 8 inch but the a128 is a 12.1 inch display (labelling error)
- a-Series 8 inch Wi-Fi multifunction display
- CPT-100 DownVision transom-mount transducer
- CPT-200 SideVision transom-mount transducer
- Mounting kit
- Power and data cables
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Pack contents
| Components | a128 12.1 in Wi-Fi MFD + CPT-100 DownVision transducer + CPT-200 SideVision transducer |
Display
| Display | a128 12.1 in sunlight-viewable touchscreen, 1280 x 800, LightHouse II |
Sonar
| Built-in sonar | Dual-channel CHIRP: CHIRP DownVision (350 kHz) and conical CHIRP (200 kHz) |
| DownVision transducer | CPT-100 dual-element transom mount |
| SideVision transducer | CPT-200 transom mount (SideVision, requires compatible SideVision module) |
GNSS receiver
| GPS | Built-in 50-channel GPS |
Connections
| Wireless | Built-in Wi-Fi |
Notes
| Title note | PIM title says 8 inch but a128 is a 12.1 inch display (labelling error) |
