This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

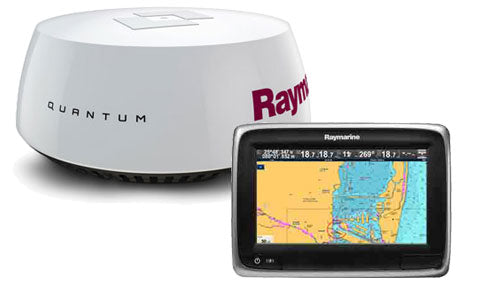

Raymarine a75 7-inch Wi-Fi MFD with Quantum Q24C Radar and Navionics EU Silver Chart
Description
This Raymarine bundle pairs the a75 multifunction display with a Quantum Q24C radar and a Navionics EU Silver chart, giving you a complete radar-ready navigation system out of the box. The a75 is a 7-inch sunlight-viewable touchscreen chartplotter running Raymarine's LightHouse interface, with fast chart panning and simple waypoint and route creation.
The included Quantum Q24C is a compact 18-inch solid-state radome that uses X-band CHIRP pulse-compression for clean target detection from 24 nautical miles down to close range. It connects to the a75 by RayNet cable or built-in Wi-Fi, draws just 17 W on transmit and weighs only 5.6 kg, making it easy to add radar to a mast or arch. The supplied Navionics EU Silver chart covers European waters, so the system is ready to navigate from first power-up.
PRODUCT DETAILS
- Complete bundle: a75 display, Quantum Q24C radar and Navionics EU Silver chart
- 7-inch sunlight-viewable touchscreen chartplotter with LightHouse interface
- Quantum solid-state CHIRP radar detects targets from 24 nautical miles to close range
- Radar connects to the a75 by RayNet cable or built-in Wi-Fi
- Quantum radome draws just 17 W on transmit and weighs only 5.6 kg
- Navionics EU Silver chart supplied for European waters
- Raymarine a75 7-inch multifunction display
- Quantum Q24C radar radome with 10 m power cable
- Navionics EU Silver chart card
- Display mounting kit and documentation
- Radar mounting fixings: 4x M8 bolts, 4x spring washers, 4x flat washers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen size | 7 in (177.8 mm) diagonal |
| Display type | Optically bonded, sunlight-viewable LED-backlit colour LCD |
| Display resolution | 800 x 480 pixels (16:9 widescreen format) |
| Touchscreen | All-touch (multitouch with pinch-to-zoom) |
| Colour depth | 24 bit |
GNSS receiver
| Internal GPS | Built-in 50-channel GPS receiver |
| Acquisition | 5 Hz fast acquisition |
| Differential | WAAS / EGNOS / MSAS |
Sonar
| Built-in sonar | None (chartplotter). Add a networked Raymarine sonar module for fishfinding |
Networking
| Networked units | Up to 6 multifunction displays |
| Radar | Compatible with Quantum, Digital, HD Colour and Super HD Colour radar (radome or open array) |
| Autopilot | Full control and integration with Raymarine Evolution autopilots |
| Wireless | Built-in Wi-Fi (802.11 b/g) for data and remote control from a smartphone or tablet |
| Bluetooth | Bluetooth for MP3 audio remote control and the RCU-3 wireless remote |
Connections
| Network connection | 1 x RayNet (SeaTalkhs) |
| SeaTalkng | 1 x SeaTalkng |
| NMEA 2000 | Via optional SeaTalkng-to-DeviceNet adaptor |
| Video | IP video input (ONVIF-compatible IP cameras) |
| Memory card | Single microSD card reader (charts and data) |
Cartography
| Charts | Raymarine LightHouse, Navionics (Silver / Gold / Platinum+) and C-MAP by Jeppesen |
| Waypoints | 3,000 waypoints, 100 groups; routes and tracks |
Mounting
| Mounting | Flush mount or trunnion (bracket) mount; trunnion bracket supplied |
Power
| Nominal supply voltage | 13.8 V DC |
| Operating voltage range | 10.2 V DC to 15.6 V DC |
| Standby consumption | Less than 100 mW |
Environmental
| Operating temperature | -10 C to +50 C (14 F to 122 F) |
| Storage temperature | -15 C to +65 C (5 F to +149 F) |
| Waterproofing | IPX6 and IPX7 |
Software
| User interface | Raymarine LightHouse II, dual-core processor with dedicated graphics processor |
