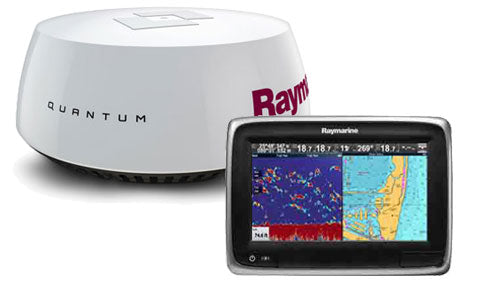

Raymarine a77 7-inch Wi-Fi MFD with Quantum Q24C Radar and Navionics EU Silver Chart
Description
This Raymarine bundle pairs the a77 multifunction display with a Quantum Q24C radar and a Navionics EU Silver chart for a complete radar-ready navigation and fishfinding system. The a77 combines all the navigation capabilities of the 7-inch a-series chartplotter with built-in ClearPulse digital sonar, giving an uncluttered, detailed view of fish and bottom structure.
The included Quantum Q24C is a compact 18-inch solid-state radome that uses X-band CHIRP pulse-compression for clean target detection from 24 nautical miles down to close range. It connects to the a77 by RayNet cable or built-in Wi-Fi, draws just 17 W on transmit and weighs only 5.6 kg. The supplied Navionics EU Silver chart covers European waters, so the system is ready to navigate and fish from first power-up.
PRODUCT DETAILS
- Complete bundle: a77 display, Quantum Q24C radar and Navionics EU Silver chart
- 7-inch touchscreen chartplotter with built-in ClearPulse digital sonar
- Quantum solid-state CHIRP radar detects targets from 24 nautical miles to close range
- Radar connects to the a77 by RayNet cable or built-in Wi-Fi
- Quantum radome draws just 17 W on transmit and weighs only 5.6 kg
- Navionics EU Silver chart supplied for European waters
- Raymarine a77 7-inch multifunction display with sonar
- Quantum Q24C radar radome with 10 m power cable
- Navionics EU Silver chart card
- Display mounting kit and documentation
- Radar mounting fixings: 4x M8 bolts, 4x spring washers, 4x flat washers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen size | 7 in (177.8 mm) diagonal |
| Display type | Optically bonded, sunlight-viewable LED-backlit colour LCD |
| Display resolution | 800 x 480 pixels (16:9 widescreen format) |
| Touchscreen | All-touch (multitouch with pinch-to-zoom) |
| Colour depth | 24 bit |
GNSS receiver
| Internal GPS | Built-in 50-channel GPS receiver |
| Acquisition | 5 Hz fast acquisition |
| Differential | WAAS / EGNOS / MSAS |
Sonar
| Built-in sonar | ClearPulse digital sonar (built-in) |
| Power output | 600 W |
| Frequency | Dual frequency, 50 kHz and 200 kHz (200 kHz shallow water, 50 kHz offshore) |
| Depth range | Up to 914 m (3,000 ft), dependent on transducer and conditions |
| Tuning | Fully automatic ClearPulse tuning |
| Network sonar support | Yes |
Networking
| Networked units | Up to 6 multifunction displays |
| Radar | Compatible with Quantum, Digital, HD Colour and Super HD Colour radar (radome or open array) |
| Autopilot | Full control and integration with Raymarine Evolution autopilots |
| Wireless | Built-in Wi-Fi (802.11 b/g) for data and remote control from a smartphone or tablet |
| Bluetooth | Bluetooth for MP3 audio remote control and the RCU-3 wireless remote |
Connections
| Network connection | 1 x RayNet (SeaTalkhs) |
| SeaTalkng | 1 x SeaTalkng |
| NMEA 2000 | Via optional SeaTalkng-to-DeviceNet adaptor |
| Video | IP video input (ONVIF-compatible IP cameras) |
| Memory card | Single microSD card reader (charts and data) |
Cartography
| Charts | Raymarine LightHouse, Navionics (Silver / Gold / Platinum+) and C-MAP by Jeppesen |
| Waypoints | 3,000 waypoints, 100 groups; routes and tracks |
Mounting
| Mounting | Flush mount or trunnion (bracket) mount; trunnion bracket supplied |
Power
| Nominal supply voltage | 13.8 V DC |
| Operating voltage range | 10.2 V DC to 15.6 V DC |
| Standby consumption | Less than 100 mW |
Environmental
| Operating temperature | -10 C to +50 C (14 F to 122 F) |
| Storage temperature | -15 C to +65 C (5 F to +149 F) |
| Waterproofing | IPX6 and IPX7 |
Software
| User interface | Raymarine LightHouse II, dual-core processor with dedicated graphics processor |
