This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

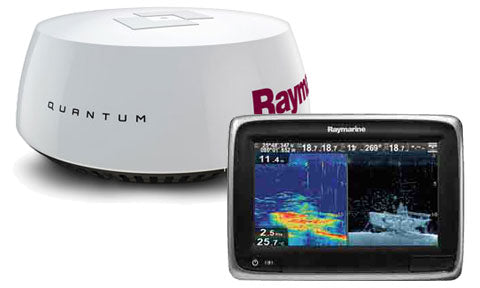

Raymarine a78 7-inch Wi-Fi MFD with Quantum Q24C Radar, CPT-100 Transducer and EU Silver Chart
Description
This Raymarine bundle pairs the a78 multifunction display with a Quantum Q24C radar, a CPT-100 transom-mount transducer and a Navionics EU Silver chart for a complete radar, sonar and navigation package. The a78 adds dual-channel, high-resolution CHIRP DownVision sonar to the 7-inch a-series chartplotter, delivering a photo-like view of the world beneath the boat, with built-in Wi-Fi for remote control from a phone or tablet.
The included Quantum Q24C is a compact 18-inch solid-state radome that uses X-band CHIRP pulse-compression for clean target detection from 24 nautical miles down to close range. It connects to the a78 by RayNet cable or built-in Wi-Fi, draws just 17 W on transmit and weighs only 5.6 kg. With the supplied CPT-100 transducer and Navionics EU Silver chart for European waters, the system is ready to navigate, fish and watch radar from first power-up.
PRODUCT DETAILS
- Complete bundle: a78 display, Quantum Q24C radar, CPT-100 transducer and EU chart
- 7-inch touchscreen with dual-channel CHIRP DownVision sonar
- Quantum solid-state CHIRP radar detects targets from 24 nautical miles to close range
- Radar connects to the a78 by RayNet cable or built-in Wi-Fi
- CPT-100 transom-mount transducer supplied for DownVision sonar
- Navionics EU Silver chart supplied for European waters
- Raymarine a78 7-inch multifunction display with DownVision
- Quantum Q24C radar radome with 10 m power cable
- CPT-100 transom-mount transducer
- Navionics EU Silver chart card
- Display mounting kit and documentation
- Radar mounting fixings: 4x M8 bolts, 4x spring washers, 4x flat washers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen size | 7 in (177.8 mm) diagonal |
| Display type | Optically bonded, sunlight-viewable LED-backlit colour LCD |
| Display resolution | 800 x 480 pixels (16:9 widescreen format) |
| Touchscreen | All-touch (multitouch with pinch-to-zoom) |
| Colour depth | 24 bit |
GNSS receiver
| Internal GPS | Built-in 50-channel GPS receiver |
| Acquisition | 5 Hz fast acquisition |
| Differential | WAAS / EGNOS / MSAS |
Sonar
| Built-in sonar | Dual-channel high-resolution CHIRP sonar (built-in), via the CPT-100 transducer |
| CHIRP DownVision | CHIRP DownVision channel (centre 350 kHz) for photo-like imaging beneath the boat |
| CHIRP fish targeting | Conical CHIRP fish-targeting channel (centre 200 kHz) |
| Depth range | Up to 183 m (600 ft), dependent on transducer and conditions |
| Network sonar support | Yes |
Networking
| Networked units | Up to 6 multifunction displays |
| Radar | Compatible with Quantum, Digital, HD Colour and Super HD Colour radar (radome or open array) |
| Autopilot | Full control and integration with Raymarine Evolution autopilots |
| Wireless | Built-in Wi-Fi (802.11 b/g) for data and remote control from a smartphone or tablet |
| Bluetooth | Bluetooth for MP3 audio remote control and the RCU-3 wireless remote |
Connections
| Network connection | 1 x RayNet (SeaTalkhs) |
| SeaTalkng | 1 x SeaTalkng |
| NMEA 2000 | Via optional SeaTalkng-to-DeviceNet adaptor |
| Video | IP video input (ONVIF-compatible IP cameras) |
| Memory card | Single microSD card reader (charts and data) |
Cartography
| Charts | Raymarine LightHouse, Navionics (Silver / Gold / Platinum+) and C-MAP by Jeppesen |
| Waypoints | 3,000 waypoints, 100 groups; routes and tracks |
Mounting
| Mounting | Flush mount or trunnion (bracket) mount; trunnion bracket supplied |
Power
| Nominal supply voltage | 13.8 V DC |
| Operating voltage range | 10.2 V DC to 15.6 V DC |
| Standby consumption | Less than 100 mW |
Environmental
| Operating temperature | -10 C to +50 C (14 F to 122 F) |
| Storage temperature | -15 C to +65 C (5 F to +149 F) |
| Waterproofing | IPX6 and IPX7 |
Software
| User interface | Raymarine LightHouse II, dual-core processor with dedicated graphics processor |
