Raymarine a98 9 inch WiFi MFD with DownVision CPT100 and SideVision CP200 Pack
Description

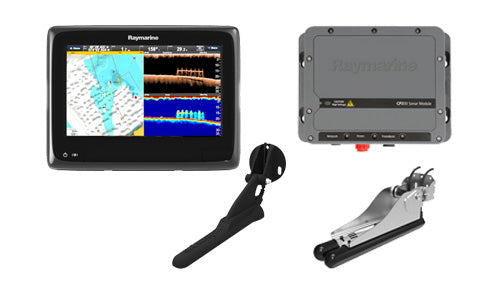

The Raymarine T70255 is a complete a98 DownVision and SideVision fishfinding system pack. It combines the a98 9 inch sunlight-viewable touchscreen multifunction display, with its built-in dual-channel CHIRP DownVision and conical fishfinding sonar, the CPT-100 transom mount transducer, and a CP200 SideVision CHIRP sonar module supplied with the CPT-200 SideVision transom transducer.
The a98 delivers a photo-like CHIRP DownVision view of the bottom and structure plus a separate conical CHIRP channel for targeting fish, using the CPT-100 transducer. Adding the networked CP200 SideVision module and CPT-200 transducer extends coverage out to either side of the boat, building a wide, high-resolution picture of the seabed and structure as you move, ideal for locating fish-holding features and navigating shallow or unfamiliar water.
The a98 runs the intuitive LightHouse II operating system on a fast dual core processor with a dedicated graphics processor, and includes built-in 50-channel GPS and Wi-Fi. The system networks over RayNet and SeaTalkng with Raymarine radar, Evolution autopilot, AIS, instruments and IP cameras, and the display can be flush or trunnion mounted.
PRODUCT DETAILS
- Complete a98 DownVision plus CP200 SideVision system pack in one box
- a98 9 inch sunlight-viewable touchscreen with built-in dual-channel CHIRP DownVision and conical sonar
- Includes the CPT-100 transom transducer for the a98 DownVision and conical channels
- Adds a networked CP200 SideVision CHIRP module with CPT-200 transducer for wide port and starboard seabed imaging
- LightHouse II operating system with fast dual core processor and dedicated graphics processor
- Built-in 50-channel GPS and Wi-Fi for streaming and waypoint sync to a phone or tablet
- Networks over RayNet and SeaTalkng with radar, Evolution autopilot, AIS and instruments
- Flush or trunnion bracket mounting (trunnion bracket included); display rated IPX6 and IPX7
- a98 9 inch multifunction display (with built-in CHIRP DownVision)
- CPT-100 transom mount transducer (DownVision and conical)
- CP200 SideVision CHIRP sonar module
- CPT-200 SideVision transom mount transducer
- Display trunnion mounting bracket, bezel and gasket
- Power / NMEA 0183 cable
- RayNet network cabling
- Suncover, mounting hardware and documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 229 mm (9 in) diagonal |
| Display type | Colour LCD, optically bonded, super-bright LED backlight, sunlight viewable |
| Display resolution | 800 x 480 pixels (WVGA) |
| Touchscreen | Yes, multi-touch capacitive touchscreen |
| User interface | LightHouse II operating system |
| Processor | Super-fast dual core processor plus dedicated graphics processor |
Sonar
| Sonar type | Built-in dual-channel CHIRP sonar: CHIRP DownVision and conical CHIRP fish targeting |
| DownVision frequency | CHIRP centred on 350 kHz |
| Conical sonar frequency | CHIRP centred on 200 kHz |
| Transducer | CPT-100 dual-element transom mount (CHIRP DownVision and conical) |
| Depth performance | Up to approximately 600 ft (183 m), dependent on conditions and transducer |
| Network sonar support | Yes |
GNSS receiver
| GPS receiver | Built-in 50-channel GPS, 5 Hz fast acquisition |
| Satellite augmentation | WAAS / EGNOS / MSAS |
Networking
| Networked units | Up to 6 units |
| Radar | Optional (Quantum, Digital, HD Digital and Super HD radomes and open array scanners) |
| Autopilot | Full control and integration with Evolution autopilots |
| AIS | Compatible with Raymarine AIS receivers and transceivers |
| Video | IP video only (ONVIF compatible IP cameras) |
| Audio | Bluetooth audio remote (smartphone MP3) and Fusion-Link control |
Connections
| Network | 1 x RayNet (SeaTalkhs) Ethernet |
| SeaTalkng | 1 x SeaTalkng |
| NMEA 2000 | Via optional SeaTalkng to DeviceNet adaptor |
| Wi-Fi | Built-in 802.11 b/g |
| Bluetooth | AVRCP 2.1 + EDR, power class 1.5 |
| Memory card | Single microSD card reader (charts and data) |
Charts
| Cartography | Raymarine LightHouse charts, Navionics (Silver, Gold, Platinum+), C-MAP by Jeppesen |
| Waypoints | 3000 waypoints; 100 waypoint groups (each up to 3000 waypoints) |
Mounting
| Mounting options | Surface (flush) mount or trunnion bracket mount (trunnion bracket included) |
Power
| Nominal supply voltage | 12 / 24 V dc |
| Operating voltage range | 12 to 24 V dc |
Environmental
| Operating temperature | -10 C to +50 C (14 F to 122 F) |
| Storage temperature | -15 C to +65 C (5 F to +149 F) |
| Waterproof rating | IPX6 and IPX7 |
