Raymarine Autopilot Sterndrive Universal I/O Drive Unit

E12026

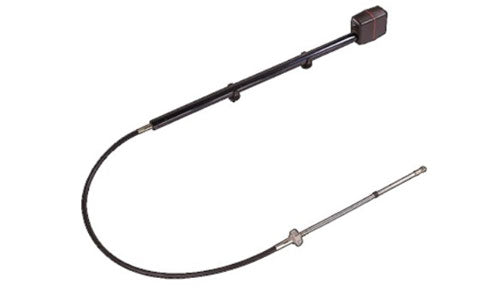

The Autopilot Sterndrive Universal I/O Drive Unit is an electro-mechanical autopilot drive for inboard/outboard (I/O) stern drive boats with power-assisted steering. It works with many popular MerCruiser and Volvo Penta stern drive systems, operates the power steering valve like the boat's steering cable, runs on 12-volt power and works with the ACU-200.

Description

The Autopilot Sterndrive Universal I/O Drive Unit is an electro-mechanical autopilot steering actuator for inboard/outboard (I/O) vessels with power-assisted steering. It works with many popular MerCruiser and Volvo Penta stern drive boats, operating the power steering valve in the same way as the boat's steering cable so the autopilot can steer the boat.

When you disengage the autopilot, a clutch releases the I/O drive so you can steer the boat manually. The drive is compatible with 12-volt power systems and works with the Evolution ACU-200 actuator control unit. This universal version suits a wide range of compatible I/O steering systems. Optional bracket kits may be required, so Raymarine recommends consulting a dealer or technical support before fitting.

PRODUCT DETAILS

  • Electro-mechanical autopilot drive for inboard/outboard (I/O) stern drive boats
  • Works with many popular MerCruiser and Volvo Penta stern drive systems
  • Operates the power steering valve like the boat's steering cable
  • Clutch disengages for manual steering when the autopilot is off
  • For 12-volt DC electrical systems
  • Works with the Evolution ACU-200 actuator control unit

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Drive

Drive typeElectro-mechanical stern drive (I/O) actuator
Steering typeInboard/outboard power-assisted steering
Compatible enginesMerCruiser and Volvo Penta stern drive systems
ClutchClutch disengages for manual steering

Power

Supply voltage12 V dc
Fuse rating15 A
Thermal circuit breaker10 A

Compatibility

Actuator Control UnitACU-200
Autopilot systemEvolution / SmartPilot
