This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

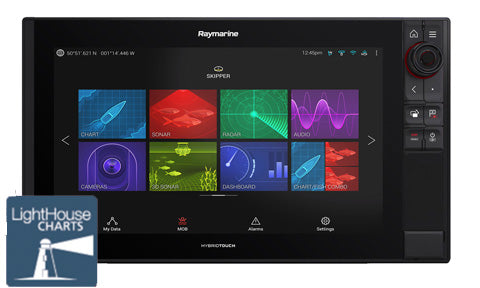

Raymarine Axiom Pro 16 S Multifunction Display with CHIRP Sonar, Two Region LightHouse Charts
Description
The Raymarine Axiom Pro 16" S is a premium all-in-one HybridTouch multifunction display that pairs a full featured chartplotter with a built-in single channel CHIRP conical sonar in a super bright IPS screen. A blazing fast quad core processor runs the smart LightHouse operating system, delivering a fluid and intuitive navigation experience whether you control the display by touch or with its dedicated physical keypad.
The CHIRP conical sonar reaches depths of up to 274 m (900 ft), and transducers connect through the 25 pin RealVision connector. An internal 10 Hz GNSS receiver, dual RayNet Ethernet, NMEA 2000, NMEA 0183, Wi-Fi and Bluetooth let you expand the Axiom Pro S into an advanced navigation network of displays, CHIRP radar, cameras and instruments.
This version is supplied preloaded with a two region LightHouse charts card (choose any two LightHouse chart regions).
PRODUCT DETAILS
- 9, 12 and 16 inch all-in-one HybridTouch multifunction display with touchscreen and physical keypad control
- Blazing fast quad core processor running the smart LightHouse operating system for fluid, intuitive navigation
- Super bright IPS display for clear viewing across wide angles and in bright sunlight
- Built-in single channel CHIRP conical sonar with depth to 274 m (900 ft)
- Compatible with RealVision and CHIRP transducers via the 25 pin RealVision connector
- Internal 10 Hz GNSS receiver supporting GPS, Galileo, GLONASS and BeiDou
- Dual RayNet Ethernet, NMEA 2000 (SeaTalkng), NMEA 0183, Wi-Fi and Bluetooth connectivity
- Expandable into an advanced navigation network with multiple displays, CHIRP radar and more
- Multifunction display
- Front bezel pieces and upper keypad
- Panel mount gasket
- Sun cover
- Trunnion bracket
- Trunnion knobs x 2
- Fixings (M4x40 pan head bolt x 4, M4 Nylock nut x 4, M4 washer x 4)
- Optional grounding connection (M3x5 screw, M3 spring washer, M3 crimp terminal)
- Power/Video/NMEA 0183 cable 1.5 m (4.92 ft)
- Documentation
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| LCD size (diagonal) | 15.6" |
| Aspect ratio | 16:10 |
| Touchscreen | HybridTouch (touchscreen plus physical keypad). 1 to 16 simultaneous touches |
Sonar
| Sonar channel | CHIRP conical sonar |
| Depth range | 0.6 m (2 ft) to 274 m (900 ft) (depending on water conditions) |
| Transducer connection | 25 pin RealVision connector (CPT-S transducers require the A80490 adaptor cable) |
Connections
| Accessory connection | USB Micro B |
| Ethernet connection | 2 x RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 0183 connection | Port 1: input and output (4,800 or 38,400 baud), Port 2: input only (4,800 or 38,400 baud) |
| NMEA 2000 connection | DeviceNet connector |
| External storage | 2 front-mounted MicroSDXC card slots |
| Internal storage | 16 GB solid state |
| Wireless connections | Bluetooth V4.0, Wi-Fi 802.11 b/g/n |
GNSS receiver
| Position accuracy | Without SBAS: 15 m or better 95% of the time; with SBAS: 5 m or better 95% of the time |
| GNSS compatibility | GPS, Galileo, GLONASS, BeiDou |
| Satellite differential (SBAS) | WAAS (US), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Tracks up to 28 satellites simultaneously |
| Antenna | Internal ceramic chip |
| Geodetic datum | WGS-84 (alternatives selectable on the MFD) |
| Refresh rate | 10 Hz |
| Time to first fix | Less than 2 minutes from cold start |
Physical
| Dimensions (surface/flush mounted) | Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth incl. cables: 240.4 mm (9.46 in) |
Power
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Power consumption at 12 V dc | 31.44 W |
| Power consumption at 24 V dc | 31.68 W |
| Off current at 12 V dc | 11 mA (0.13 W) |
| Off current at 24 V dc | 18 mA (0.43 W) |
| Current | 5 A |
| LEN (NMEA 2000 load equivalency number) | 1 |
Environmental
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Up to 93% at 40 C (104 F) |
| Waterproof rating | IPx6 and IPx7 |
