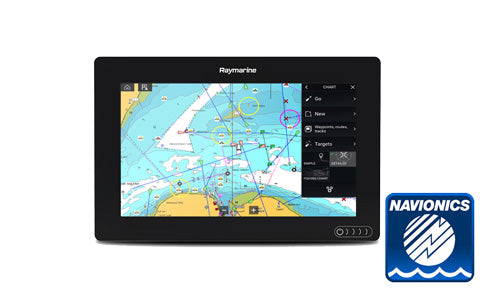

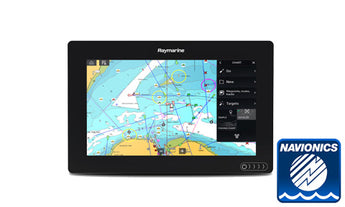

Raymarine Axiom 9, 9 inch MFD with Navionics+ Small Chart
Manufacturer Part Number:
E70366-00-NSD
Manufacturer Part Number:
E70366-00-NSD
The Axiom 9 is a 9 inch touch screen multifunction navigation display a powerful new multifunction navigation system from Raymarine. With the all new LightHouse 3 operating system, and blazing fast quad core performance, AXIOM will transform your time on the water. Has built in GPS, Wi-Fi and Bluetooth. Comes with a Navionics+ Small Download Chart.
Home or Marina Delivery
Pick up at Hamble
More Information
Raymarine RCR-1 Micro SD Card Card Reader
Raymarine RCR-Remote SD Card Reader and USB Socket
Raymarine Adapter Plate to fit Axiom 9 into a9 size cutout
Raymarine Adapter Plate to fit Axiom 9 into C70 size cutout
Raymarine Adapter Plate to fit Axiom 9 into C80 E80 size cutout
Raymarine Metal Trunnion Mounting Kit for Axiom 9
Raymarine Front Mounting kit for Axiom 9
Raymarine Rear Mounting kit for Axiom 9 inc Rear Brackets, bolts and thumbnuts
Raymarine Axiom Power Cable 1.5m Straight with NMEA 2000 connector
Raymarine Axiom Power Cable 1.5m Right Angled with NMEA 2000 Connector
Raymarine Suncover for Axiom 9 when using front mounting kit
Raymarine Suncover for Axiom 9 when Trunnion or Surface Mounted
| DISPLAY | |
| Display Size | 9.0" Optically Bonded LCD |
| Display Resolution | 800 x 480 WVGA |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right) |
| PHYSICAL | |
| Dimensions | 244 x 158 x 77mm (9.65" x 6.22" x 3.00") |
| Weight | 2.04kg (4.5lbs) |
| Mounting | Top, Flush, Front, Bracket |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temperature | -25deg C to +55deg C (-13deg F to 131deg F) |
| Storage Temp | -30deg C to +70deg C (- 22deg F to 158deg F) |
| POWER | |
| Voltage | 12V DC (8 V to 16 VDC) |
| Power Consumption (Full brightness) | TBD |
| Power Consumption (Powersave Mode) |
TBD |
| SENSORS | |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310) |
| Sonar Type (Built-in) | DV model - Built-in DownVision™ + 600W | RV model - Built-in RealVision™ 3D + 600W |
| Sonar Connection | DV variant = 9 pin DownVision™ type connector RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W) See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W External sonar - RayNet |
| Sonar Depth | CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet) SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet) |
| External Sonar | Yes - CP100, CP200, CP370, CP470, CP570 via RayNet |
| Radar | Yes - Quantum, Digital, HD Color and Super HD Color Radars |
| AIS | Yes - NMEA2000 |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes - IP camera input only |
| Video / Camera | Up to 10 IP Cameras |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only) [Weather features available in future Lighthouse 3 software update] |
| Audio Integration | NMEA2000 / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
| Digital Switching | Yes - Empirbus |
| Remote Control | *RMK-10 (A80438) & *RCU-3 (E62351) [*Available in future Lighthouse 3 software update] |
Axiom In the Box
Axiom 7, Axiom+ 7
1. MFD (supplied with Trunnion adaptor fitted)
2. Trunnion bracket
3. Trunnion knobs x 2
4. Suncover — Trunnion mount
5. Panel mount gasket for surface/flush mounting
6. M5x58 Threaded studs x 4
7. M5 Thumb nuts x 4
8. Documentation pack
9. Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
E70364–01 is also supplied with a CPT-S transom transducer and associated fittings.
E70364–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.
E70365–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.
Axiom, Axiom+ 9 and 12
1. MFD
2. Trunnion bracket
3. Trunnion knobs x 2
4. Suncover
5. Panel mount gasket for surface/flush mounting
6. Rear mounting brackets: a. supplied with 9” MFD b. supplied with 12” MFD
7. Documentation pack
8. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
9. M5x58 Threaded studs x 4
10. M5 Thumb nuts x 4
E70367–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.
E70367–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.
E70369–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.
Axiom Navigation
Axiom, Axiom+ 7 trunnion mount dimensions
A = 250.4 mm (9.86 in)
B = 162.5 mm (6.4 in)
C = 76.4 mm (3 in)
D • Straight connectors = 218 mm (8.58 in)
• Right-angled connectors = 198 mm (7.79 in)
Axiom, Axiom+ 7 surface and flush mount dimensions Using adaptor bracket
A = 201.1 mm (7.92 in)
B = 133 mm (5.24 in)
C = 8 mm (0.32 in)
D = 93.1 mm (3.67 in)
E • Straight connectors = 218 mm (8.58 in)
• Right-angled connectors = 198 mm (7.79 in)
Axiom, Axiom+ 7 surface and flush mount dimensions Using Rear mount kit
A = 201.1 mm (7.92 in)
B = 133 mm (5.24 in)
C = 8 mm (0.32 in)
D = 93.1 mm (3.67 in)
E • Straight connectors = 218 mm (8.58 in)
• Right-angled connectors = 198 mm (7.79 in)
F = 73 mm ( 2.87 in)
G = 132 mm (5.2 in)
Axiom, Axiom+ 9 trunnion mount dimensions
A = 265.03 mm (10.43 in)
B = 187.81 (7.39 in)
C = 76.71 mm (3.02 in)
D = 65 mm (2.56 in)
E • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
Axiom, Axiom+ 9 surface and flush mount dimensions
A = 244.08 mm (9.64 in)
B = 157.78 mm (6.21 in)
C = 8 mm (0.31 in)
D = 100.8 mm (3.97 in)
E = 157 mm 6.18 in)
F • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
Axiom, Axiom+ 12 trunnion mount dimensions
A = 314 mm (12.36 in)
B = 226.72 mm (8.93 in)
C = 76.2 mm (3 in)
D = 65 mm (2.56 in)
E • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
Axiom, Axiom+ 12 surface and flush mount dimensions
A = 314 mm (12.36 in)
B = 226.72 mm (8.93 in)
C = 8 mm (0.31 in)
D = 79.3 mm (3.12 in)
E = 222 mm (8.74 in)
F • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
