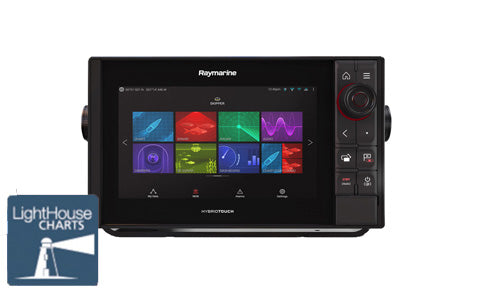

Raymarine Axiom 9 Pro-S 9 Inch MFD with Two Region Lighthouse Chart
Manufacturer Part Number:
E70481-00-202
Manufacturer Part Number:
E70481-00-202
The Axiom Pro 9 S is 9 inch HybridTouch multifunction display with built in single channel CHIRP sonar the new standard for “all-in-one” display. With a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more. Comes with Raymarine Lighthouse 2 region download chart.
Home or Marina Delivery
Pick up at Hamble
More Information
Axiom Pro Navigation
Raymarine Adapter Plate to fit Axiom 9 Pro into E90W size cutout
Raymarine Axiom 9 Pro Silicone Suncover
Raymarine RCR-Remote SD Card Reader and USB Socket
Raymarine eS9 Trunnion Kit for 9 inch eS Series Multifunction Displays
Raymarine eS9 Trim Kit for 9 inch eS Series Multifunction Displays
Raymarine eS9 Flush Mount Kit for 9 inch eS Series Multifunction Displays
Raymarine a9, a12, c, e, eS, gS and Axiom Pro Straight Power and data cable 1.5m
Raymarine a9, a12, c, e, eS and gS Right Angle Power and data cable 1.5m
Axiom Pro Multifunction Displays by Raymarine
Raymarine Axiom Pro Launch 2017
Axiom Pro 9 and 12
1. Axiom Pro MFD
2. Front bezel pieces and Upper keypad
3. Panel mount gasket
4. Suncover
5. Trunnion bracket
6. Trunnion knobs x 2
7. Fixings (M4 x 40 pan head bolt x 4, M4 Nylock nut x 4 and M4 washer x 4)
8. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection)
9. Power/Video/NMEA 0183 cable 1.5 m (4.92 ft) straight
10. Documentation pack
11. RayNet 2 m (6.6 ft) network cable
12. SeaTalkng ™ to DeviceNet adaptor cable
Axiom Pro 16
1. Axiom Pro MFD
2. Front bezel pieces and Upper keypad
3. Panel mount gasket
4. Suncover
5. Documentation pack
6. SeaTalkng ™ to DeviceNet adaptor cable
7. Fixings (M4 x 40 pan head bolt x 4, M4 Nylock nut x 4 and M4 washer x 4)
8. Power/Video/NMEA 0183 cable 1.5 m (4.92 ft) straight
9. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection)
10. RayNet 2 m (6.6 ft) network cable
Axiom Pro 9 dimensions
A. 299.32 mm (11.78 in)
B. 329.5 mm (12.97 in)
C. 186.2 mm (7.33 in)
D. 173.79 mm (6.84 in)
E. 33.4 mm (1.31 in)
F. 64.5 mm (2.54 in)
G. 137.05 mm (5.4 in) straight connector 117.05 mm (4.61 in) right angled connector
H. 12.86 mm (0.51 in)
J. 201.5 mm (7.93 in) straight connector 181.5 mm (7.15 in) right angled connector
Axiom Pro 12 dimensions
A. 358.03 mm (14.1 in)
B. 388.5 mm (15.3 in)
C. 246.13 mm (9.69 in)
D. 222.8 mm (8.77 in)
E. 31.9 mm (1.26 in)
F. 64.4 mm (2.54 in)
G. 137.1 mm (5.4 in) straight connector 117.1 mm (4.61 in) right angled connector
H. 12.86 mm (0.51 in)
I. 89 mm (3.50 in)
J. 201.5 mm (7.93 in) straight connector 181.5 mm (7.15 in) right angled connector
Axiom Pro 16 dimensions
A. 452.02 mm (17.8 in)
B. 258 mm (10.16 in)
C. 33.4 mm (1.31 in)
D. 68.4 mm (2.69 in)
E. 138.6 mm (5.46 in) straight connector 118.6 mm (4.67 in) right angled connector
F. 15.2 mm (0.6 in)
G. 207 mm (8.15 in) straight connector 187 mm (7.36 in) right angled connector
GENERAL SPECIFICATIONS
| Display Size | 9" IPS Optically Bonded LCD |
| Display Resolution | 1280 x 720 WXGA |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) |
PHYSICAL
| Dimensions | 11.9" x 6.85" x 2.56" (300 x 174 x 65 mm) |
| Weight | 3.35 lbs (1.52 kg) |
| Mounting | Top, Front, Bracket |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temp | minus 13deg F to 131deg F (-25deg C to +55deg C) |
| Storage Temp | minus 22deg F to 158deg F (-30deg C to +70deg C) |
| POWER | |
|---|---|
| Voltage | 12V and 24V DC (8 V to 32 DC) |
| Power Consumption (Full brightness) | Axiom Pro 9: ~20W |
SENSORS & PERIPHERALS
| SENSORS | |
|---|---|
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288) |
| Sonar Type - Built-in | Pro S model - High CHIRP* Pro RVX model - RealVision 3D + 1kW Sonar |
| Sonar Connections | S variant*= 25pin connector used only with CPT-S transducers RVX variant = 25pin RealVision™ type connector + 11 pin 1kW type connector *Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. External Sonar - RayNet |
| Sonar Depth | CHIRP Sonar = 900 feet (274 m) DownVision™ = 600 feet (183 m) | SideVision™ = 300 feet (91 m) | RealVision™ 3D = 300 feet (91 m) 1kW = 5,000 feet (1,500 m) |
| External Sonar | Yes - CP100, CP200, CP370, CP470, CP570 via RayNet |
| Radar | Yes - Quantum, Digital, HD Color and Super HD Color Radars |
| AIS | Yes - N2K compatible |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes - IP or Analogue |
| Video / Camera | 1 x Analogue input (BNC) Up to 10 IP Cameras |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only [Weather features available in future Lighthouse 3 software update] |
| Audio | N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
| Digital Switching | Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] |
| Remote Control | RMK-10 (A80438) & RCU-3 (E62351) |
NETWORKING
| Ethernet | 2 x 10/100 Mbit/s Network (RayNet) |
| NMEA0183 | 1 Transmit / 2 Receive |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkNG | Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06075 1m adaptor included in box) |
| USB | 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) |
| Wi-Fi | WiFi - 802.11 a / b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
OTHER SPECIFICATIONS
| NAVIGATION | |
|---|---|
| Cartography | Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| MEMORY | |
| Internal | 16GB Solid State |
| External | 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| OTHER | |
| Languages | 24 |
| Conformances | NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 |
