Raymarine B175L and B175H Through Hull CHIRP 0 Degree Tilt Transducers with Y cable
Manufacturer Part Number:
T70069
Manufacturer Part Number:
T70069

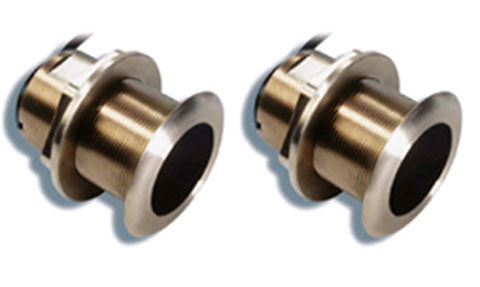

Pack made up of 1 x B175L low profile Bronze through hull single element CHIRP transducer with 0 degree tilted element suitable for hulls with 0-7 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 40-75 kHz. Beamwidth: 21-32 degrees. Cable: 30ft (9.1m). 1 x B175H low profile Bronze through hull single element CHIRP transducer with 0 degree tilted element suitable for hulls with 0-7 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 130-210 kHz. Beamwidth: 9-15 degrees. Cable: 30ft (9.1m). 1 x Y Cable used to connect the two transducers to CP450C, CP470 or CP570
Home or Marina Delivery
Pick up at Hamble
More Information
Features
- High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
- Available in 0°, 12°, or 20° tilted versions
- 80 kHz of total bandwidth from one transducer
- Depth & fast-response water-temperature sensor
- Bronze transducer housing
- Boat Size: Up to 11 m (36’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
- Weight: 2.7 kg (6 lb)
.jpg)
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- Available in 0° or 12° tilted versions only
- 35 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
- Weight: 2.7 kg (6 lb)
