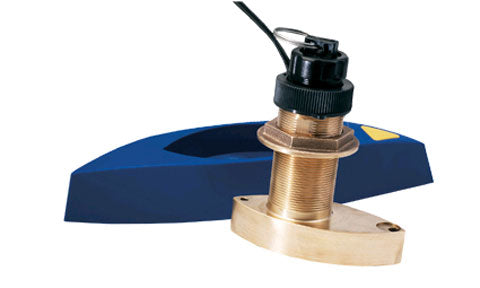

Raymarine B744V Speed, Depth, Temp 50-200 kHz Bronze 20 Through Hull Transducer
Manufacturer Part Number:
A66090
Manufacturer Part Number:
A66090
The B744V offers great triducer performance in a single thru-hull package. The included fairing block ensures reliable performance at speed.
Home or Marina Delivery
Pick up at Hamble
More Information


Features
- Depth, speed, and temperature in one housing
- Greatly improved high-speed performance at both 50 kHz and 200 kHz when installed with a high-performance fairing
- Patented self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
- Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH)
- Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions
- The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls
- Boat Size: Up to 9 m (30’)

Specifications
- Weight: 2.5 kg (5.5 lb)
- Hull Deadrise: Up to 24° with fairing
- Acoustic Window: Urethane
