Raymarine B75L 300W Bronze Through Hull CHIRP Transducer 0° Tilt

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Raymarine

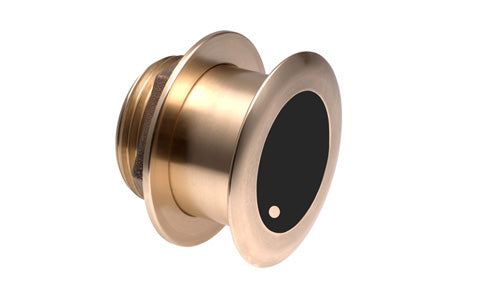

Raymarine B75L 300W Depth Through Hull Low CHIRP Transducer 0 Degree Tilt

Name: Raymarine B75L 300W Depth Through Hull Low CHIRP Transducer 0 Degree Tilt
Brand: Raymarine
SKU: A80016
Availability: Discontinued

A80016

Bronze single-frequency low-band CHIRP thru-hull transducer with a 0° tilted element (deadrise 0 - 7°), depth and temperature, and a 10 m cable for Axiom 2 Pro RVM, RVX1000, RVM1600 and CP-series CHIRP modules.

Description

The Raymarine B75L is a low-profile, CHIRP-ready bronze thru-hull transducer for smaller boats such as centre consoles. It transmits across the 40-75 kHz CHIRP low-frequency band and records both depth and water temperature.

This version carries a Tilted Element fixed at 0°, suiting hulls with a 0 - 7° deadrise. Installed almost flush to the hull, the tilt corrects for deadrise by orienting the beam directly down, ensuring maximum echo returns for accurate depth readings. The B75 can be fitted singly or as a pair.

Used individually the transducer installs with a single operation cable (A80328); installed in pairs, two transducers join with a Y-cable (A102146). Either installation finishes with a 3 m (A102148), 5 m (A102150) or 10 m (A80327) CHIRP extension cable, connecting to Axiom 2 Pro RVM, RVX1000, RVM1600 and CP450C/CP470/CP570 modules. The fitted cable is 10 m (33 ft).

PRODUCT DETAILS

Bronze single-frequency low-band CHIRP thru-hull transducer (40-75 kHz)
Tilted Element fixed at 0° for hulls with 0 - 7° deadrise
Records depth and water temperature
Power (RMS) 300W
Installs singly (A80328 cable) or in pairs (A102146 Y-cable)
Compatible with Axiom 2 Pro RVM, RVX1000, RVM1600 and CP450C/CP470/CP570 modules
10 m (33 ft) fitted cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

Raymarine Single B75/B175 Transducer Operation Cable

Raymarine Transducer Y Cable for CP450C, CP470 and CP570

Raymarine CP450C, CP470 and CP570 CHIRP Transducer Extension Cable 3m

Raymarine CP450C, CP470 and CP570 CHIRP Transducer Extension Cable 5m

Raymarine CP450C, CP470 and CP570 CHIRP Transducer Extension Cable 10m

Raymarine Axiom Pro RVX Adaptor Cable (11-pin to 8-pin)

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 Pro 12 RVM

Raymarine Axiom 2 Pro 16 RVM

Raymarine RVX1000 RealVision Black Box 1kW, DownVision, SideVision and RealVision 3D Sonar

Raymarine RVM1600 RealVision MAX 3D CHIRP Sonar Module

Performance

Operating Frequency	40-75 kHz CHIRP
Power (RMS)	300W

General

Mount	Through-Hull
Material	Bronze
Element	Single-frequency, Tilted Element (0°)
Deadrise Angles	0 - 7°
Records	Depth / Temperature
Hull Material	Fibreglass / Wood
Cable Length	10 m (33 ft)

Connectivity

Connection

Requires single operation cable A80328 (single) or Y-cable A102146 (pair)

No videos available for this product.

No downloads available for this product.

What does the 0° tilted element do?

The B75L has its ceramic element fixed at a 0° angle so the transducer can be installed almost flush to a hull with a 0 - 7° deadrise. The tilt aims the beam straight down for maximum echo return and accurate depth readings.

Which cable do I need to run the B75L?

Used on its own, the B75L installs with a single transducer operation cable (A80328). Installed as a pair, two transducers join with a transducer Y-cable (A102146). Either installation finishes with a 3 m (A102148), 5 m (A102150) or 10 m (A80327) CHIRP extension cable.

What sonar systems is it compatible with?

Via the CHIRP cable system the B75L works with Axiom 2 Pro RVM, RVX1000, RVM1600 and CP450C/CP470/CP570 CHIRP sonar modules.
