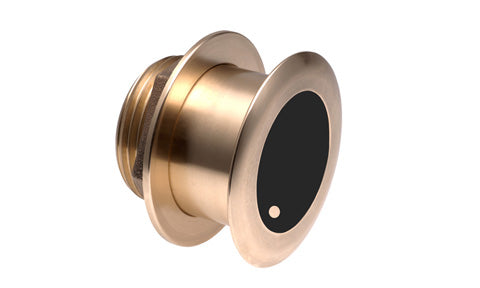

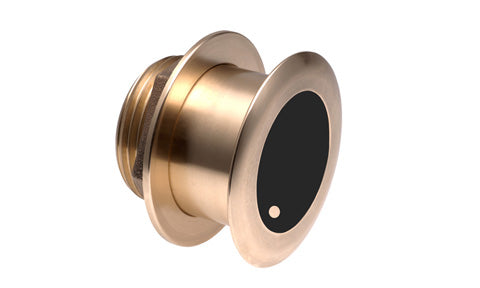

Raymarine B75L 300W Depth Through Hull Low CHIRP Transducer 12 Degree Tilt
Manufacturer Part Number:
A80033
Manufacturer Part Number:
A80033
The B75L is a low profile Bronze through hull single element CHIRP transducer. It has a 12 degree tilted element suitable for hulls with 8-15 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 300 watts. Frequency: 40-60 kHz. Beamwidth: 21-32 degrees. Cable: 30ft (9.1m) cable. Require cable A80328 if its the only transducer being connected or cable A102146 if its one of two transducers being connected to a CP450C, CP470 and CP570.
Home or Marina Delivery
Pick up at Hamble
More Information
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- Available in 0° and 12° tilted versions
- 20 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 11 m (36’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
