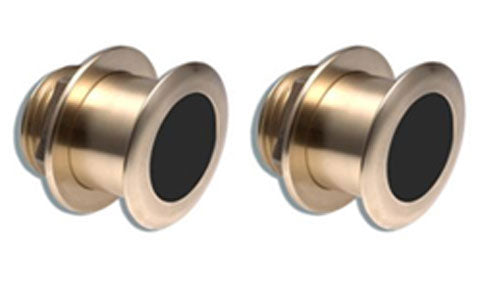

Raymarine B75L and B75M Through Hull CHIRP 0 Degree Tilt Transducers with Y cable
Manufacturer Part Number:
T70061
Manufacturer Part Number:
T70061
Pack made up of 1 x B75L low profile Bronze through hull single element CHIRP transducer with 0 degree tilted element suitable for hulls with 0-7 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 300 watts. Frequency: 40-60 kHz. Beamwidth: 21-32 degrees. Cable: 30ft (9.1m). 1 x B75M low profile Bronze through hull single element CHIRP transducer with 0 degree tilted element suitable for hulls with 0-7 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 600 watts. Frequency: 95-155 kHz. Beamwidth: 17-26 degrees. Cable: 30ft (9.1m), 1 x Y Cable used to connect the two transducers to CP450C, CP470 or CP570
Home or Marina Delivery
Pick up at Hamble
More Information
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- Available in 0° and 12° tilted versions
- 20 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 11 m (36’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
.jpg)
Paste Title
- Depth & fast-response water-temperature sensor
- Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
- Available in 0°, 12°, or 20° tilted versions
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood
Paste Title
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
