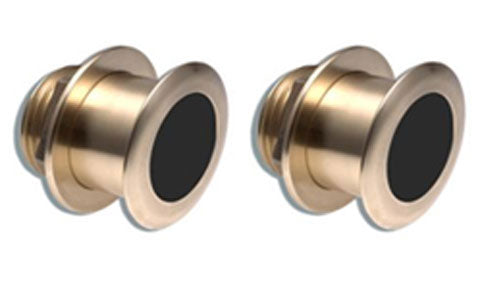

Raymarine B75L and B75M Through Hull CHIRP 12 Degree Tilt Transducers with Y cable
Description
This Raymarine transducer pack pairs two single-element bronze thru-hull CHIRP transducers, the B75L and B75M, with the Y-cable needed to run them together from a single Raymarine CHIRP sonar module. Airmar Tilted Element technology sets each ceramic element at a 12 deg offset, giving built-in deadrise compensation for hulls in the 8 - 15 deg range so no fairing block is required. The B75L covers 40-75 kHz with a 32 deg / 21 deg beam width, while the B75M covers 80-130 kHz with a 24 deg / 16 deg beam width, together delivering wide CHIRP bandwidth for excellent bottom tracking and fish-target separation across shallow and deep water. Both transducers are low-profile bronze units for fibreglass or wood hulls, each fitted with a 9.1 m (30 ft) cable, and the supplied Y-cable connects the pair to a CP450C, CP470 or CP570 CHIRP sonar module.
PRODUCT DETAILS
- Two single-element bronze thru-hull CHIRP transducers (B75L + B75M) supplied with the connecting Y-cable
- Airmar Tilted Element technology, 12 deg element offset for hulls with 8 - 15 deg deadrise (no fairing block needed)
- B75L: 40-75 kHz, 300 W RMS, beam width 32 deg / 21 deg
- B75M: 80-130 kHz, 600 W RMS, beam width 24 deg / 16 deg
- Low-profile bronze housing for fibreglass or wood hulls, 9.1 m (30 ft) cable on each transducer
- Connects to Raymarine CP450C, CP470 or CP570 CHIRP sonar modules via the included Y-cable
- 1 x B75L bronze thru-hull CHIRP transducer (12 deg tilt)
- 1 x B75M bronze thru-hull CHIRP transducer (12 deg tilt)
- 1 x transducer Y-cable
- Fitting hardware
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Transducer Type | Bronze thru-hull, single-element CHIRP pair |
| Mount | Through-Hull |
| Housing Material | Bronze |
| Hull Material | Fibreglass / Wood |
| Element Technology | Airmar Tilted Element |
| Element Tilt | 12 deg |
| Hull Deadrise Range | 8 - 15 deg |
| Records | Depth |
B75L Element
| Operating Frequency | 40-75 kHz |
| Power (RMS) | 300 W RMS |
| Beam Width | 32 deg / 21 deg |
B75M Element
| Operating Frequency | 80-130 kHz |
| Power (RMS) | 600 W RMS |
| Beam Width | 24 deg / 16 deg |
Cable
| Cable Length (each transducer) | 9.1 m (30 ft) |
| Connection | Y-cable to CP450C / CP470 / CP570 CHIRP module |
