Raymarine B75M and B75H Through Hull CHIRP 12 Degree Tilt Transducers with Y cable
Manufacturer Part Number:
T70065
Manufacturer Part Number:
T70065

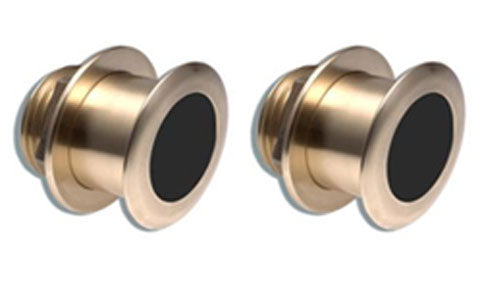

Pack made up of 1 x B75M low profile Bronze through hull single element CHIRP transducer with 12 degree tilted element suitable for hulls with 8-15 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 600 watts. Frequency: 95-155 kHz. Beamwidth: 17-26 degrees. Cable: 30ft (9.1m), 1 x B75H low profile Bronze through hull single element CHIRP transducer with 12 degree tilted element suitable for hulls with 8-15 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 600 watts. Frequency: 130-210 kHz. Beamwidth: 9-15 degrees. Cable: 30ft (9.1m). 1 x Y Cable used to connect the two transducers to CP450C, CP470 or CP570
Home or Marina Delivery
Pick up at Hamble
More Information
Features
- Depth & fast-response water-temperature sensor
- High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
- Available in 0°, 12°, or 20° tilted versions
- 80 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
.jpg)
Paste Title
- Depth & fast-response water-temperature sensor
- Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
- Available in 0°, 12°, or 20° tilted versions
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood
Paste Title
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
