This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

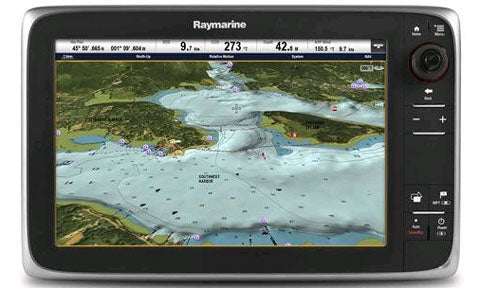

Raymarine c125 12 inch None-Touch Multifunction Display with Wi-Fi and C-Map Essentials Rest of World Chart
Description
The Raymarine c125 is a 12.1 inch None-Touch multifunction display from Raymarine's cSeries, built around a bright, sunlight-viewable screen and the easy-to-use LightHouse II operating system. None-Touch keypad and rotary control gives precise, glove-friendly operation in rough conditions and on fast-moving boats, making the c125 a dependable choice where a touchscreen is not wanted.
The c125 is black-box sonar ready, so a Raymarine CP-series sonar module can be added at any time to suit your fishing. A fast internal 50-channel GPS keeps your position updating quickly, while built-in Wi-Fi and Bluetooth add mobile app integration, wireless software updates and audio control. The c125 connects over RayNet and SeaTalkng to Raymarine radar, the Evolution autopilot, instruments, cameras and AIS, and networks with other LightHouse displays to build a complete navigation system. This pack is supplied with C-Map Essentials cartography covering the Rest of the World.
PRODUCT DETAILS
- 12.1 inch sunlight-viewable display (1280 x 800 pixels, 1200 nits) with None-Touch keypad control
- Powered by the intuitive Raymarine LightHouse II operating system
- Fast internal 50-channel GPS receiver with WAAS, EGNOS and MSAS for rapid, accurate positioning
- Black-box sonar ready: add a Raymarine CP-series sonar module when required
- Built-in Wi-Fi for mobile app control plus Bluetooth for audio and remote control
- RayNet Ethernet and SeaTalkng networking for radar, autopilot, instruments, AIS and cameras
- Supports a wide choice of C-Map, Navionics and Raymarine LightHouse cartography
- Can be flush mounted or surface (trunnion) mounted
- IPX6 waterproof rating for confident use on deck
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Display
| Display size | 12.1" diagonal |
| Display resolution | 1280 x 800 pixels |
| Display type | Sunlight-viewable colour LCD with None-Touch keypad and rotary control |
| Brightness | 1200 cd/m2 (nits) |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GNSS | Built-in 50-channel GPS receiver |
| Differential | WAAS, EGNOS and MSAS |
Sonar
| Built-in sonar | Not fitted (chartplotter). Black-box sonar ready: add a Raymarine CP-series sonar module |
Networking
| Ethernet network | 2 x RayNet (SeaTalkhs) Ethernet ports |
| NMEA 2000 | 1 x NMEA 2000 port (via SeaTalkng) |
| NMEA 0183 | 2 receive / 1 transmit NMEA 0183 (on power cable) |
| Wireless | Built-in Wi-Fi and Bluetooth |
Connections
| Video input | 1 x composite video input (BNC), PAL or NTSC |
| Memory card | microSD card slot for charts and data |
| Audio | Fusion and Bluetooth audio control |
Physical
| Dimensions | 353.6 x 222 x 68.9 mm (13.93 x 8.74 x 2.71 in) including bezel and trunnion |
| Weight | 3.45 kg (7.6 lbs) |
| Mounting | Surface (trunnion) or flush mounting |
Power
| Supply voltage | 10.8 V dc to 31.2 V dc |
| Power consumption | 36 W maximum (full brightness) |
Environmental
| Waterproof rating | IPX6 |
Cartography
| Supplied chart | C-Map Essentials Rest of World Chart (cartography differs from the base model) |
