This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

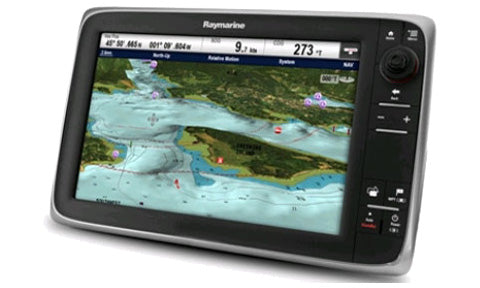

Raymarine c127 12 inch None-Touch Multifunction Display with Wi-Fi and Sonar and C-Map Essentials Rest of World Chart
Description
The Raymarine c127 is a 12.1 inch None-Touch multifunction display from Raymarine's cSeries, built around a bright, sunlight-viewable screen and the easy-to-use LightHouse II operating system. None-Touch keypad and rotary control gives precise, glove-friendly operation in rough conditions and on fast-moving boats, making the c127 a dependable choice where a touchscreen is not wanted.
A built-in 600 W ClearPulse digital sonar provides a clear, automatically tuned view of fish and bottom structure, with dual-frequency 50/200 kHz operation for both shallow water and offshore fishing. A fast internal 50-channel GPS keeps your position updating quickly, while built-in Wi-Fi and Bluetooth add mobile app integration, wireless software updates and audio control. The c127 connects over RayNet and SeaTalkng to Raymarine radar, the Evolution autopilot, instruments, cameras and AIS, is black-box sonar ready for the CP-series CHIRP sonar modules, and networks with other LightHouse displays to build a complete navigation system. This pack is supplied with C-Map Essentials cartography covering the Rest of the World.
PRODUCT DETAILS
- 12.1 inch sunlight-viewable display (1280 x 800 pixels, 1200 nits) with None-Touch keypad control
- Powered by the intuitive Raymarine LightHouse II operating system
- Fast internal 50-channel GPS receiver with WAAS, EGNOS and MSAS for rapid, accurate positioning
- Built-in 600 W ClearPulse digital sonar with automatic dual-frequency 50/200 kHz tuning
- Black-box sonar ready for Raymarine CP-series CHIRP sonar modules
- Built-in Wi-Fi for mobile app control plus Bluetooth for audio and remote control
- RayNet Ethernet and SeaTalkng networking for radar, autopilot, instruments, AIS and cameras
- Supports a wide choice of C-Map, Navionics and Raymarine LightHouse cartography
- Can be flush mounted or surface (trunnion) mounted
- IPX6 waterproof rating for confident use on deck
No exploded diagram available for this product.
Raymarine P79 Depth 50-200 kHz In Hull Transducer
Raymarine P79 In Hull Depth Transducer with Fitting Kit
Raymarine P79 600w 50-200 kHz Adjustable In-Hull Angle Transducer
Raymarine P319 600w 50-200 kHz Low Profile Plastic Through Hull Transducer
Raymarine B117 600w 50-200 kHz Low Profile Bronze Through Hull Transducer
Raymarine P66 600W 50-200 kHz Speed, Depth and Temperature Transom Mount Transducer
Raymarine P74 Depth,Temp 50-200 kHz In Hull or Trolling Motor Transducer
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 12.1" diagonal |
| Display resolution | 1280 x 800 pixels |
| Display type | Sunlight-viewable colour LCD with None-Touch keypad and rotary control |
| Brightness | 1200 cd/m2 (nits) |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GNSS | Built-in 50-channel GPS receiver |
| Differential | WAAS, EGNOS and MSAS |
Sonar
| Built-in sonar | 600 W ClearPulse digital conical sonar |
| Frequency | Dual frequency 50 kHz / 200 kHz |
| Maximum depth | Up to 3000 ft, transducer dependent |
| External sonar modules | Black-box sonar ready: CP100, CP200, CP370, CP470 and CP570 over SeaTalkhs |
Networking
| Ethernet network | 2 x RayNet (SeaTalkhs) Ethernet ports |
| NMEA 2000 | 1 x NMEA 2000 port (via SeaTalkng) |
| NMEA 0183 | 2 receive / 1 transmit NMEA 0183 (on power cable) |
| Wireless | Built-in Wi-Fi and Bluetooth |
Connections
| Video input | 1 x composite video input (BNC), PAL or NTSC |
| Memory card | microSD card slot for charts and data |
| Audio | Fusion and Bluetooth audio control |
Physical
| Dimensions | 353.6 x 222 x 68.9 mm (13.93 x 8.74 x 2.71 in) including bezel and trunnion |
| Weight | 3.45 kg (7.6 lbs) |
| Mounting | Surface (trunnion) or flush mounting |
Power
| Supply voltage | 10.8 V dc to 31.2 V dc |
| Power consumption | 36 W maximum (full brightness) |
Environmental
| Waterproof rating | IPX6 |
Cartography
| Supplied chart | C-Map Essentials Rest of World Chart (cartography differs from the base model) |
