This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

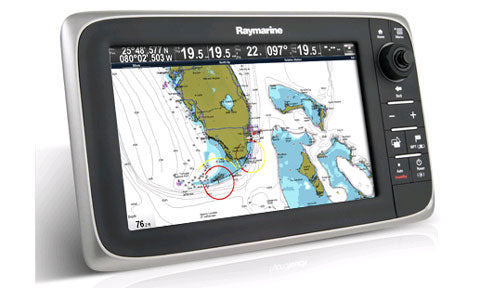

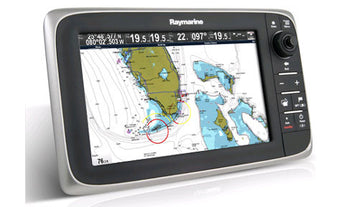

Raymarine c95 9 inch None-Touch Multifunction Display with Wi-Fi
Description
The Raymarine c95 is a 9 inch None-Touch multifunction display from Raymarine's cSeries, built around a bright, sunlight-viewable LED-backlit screen and the easy-to-use LightHouse II operating system. None-Touch keypad and rotary control gives precise, glove-friendly operation in rough conditions and on planing boats. A fast internal GPS receiver, built-in Wi-Fi and Bluetooth and full RayNet and SeaTalkng networking let the c95 work as the hub of a Raymarine system, adding radar, sonar modules, autopilot, instruments, AIS and cameras. The c95 is black-box sonar ready, so a Raymarine CP-series sonar module can be added when required.
This base model is supplied with Raymarine LightHouse base charts; Navionics or C-Map cartography can be added on a microSD card.
PRODUCT DETAILS
- 9 inch sunlight-viewable LCD (800 x 480 pixels) with LED backlight and None-Touch keypad control
- Powered by the intuitive Raymarine LightHouse II operating system
- Fast internal high-sensitivity GPS receiver with WAAS, EGNOS and MSAS
- Black-box sonar ready: add a Raymarine CP-series sonar module when required
- Built-in Wi-Fi for mobile app control plus Bluetooth for audio and remote control
- RayNet (SeaTalkhs) Ethernet and SeaTalkng networking for radar, autopilot, instruments, AIS and cameras
- Network up to 6 displays and mix with C-Series or E-Series displays
- Dual microSD chart readers supporting C-Map, Navionics and Raymarine LightHouse cartography
- Can be flush mounted or surface (trunnion) mounted
- IPX6 waterproof rating for confident use on deck
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 9" diagonal widescreen colour LCD |
| Display resolution | 800 x 480 pixels |
| Display type | Sunlight-viewable colour LCD with LED backlight, None-Touch keypad and rotary control |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GNSS | Built-in high-sensitivity GPS receiver |
| Differential | WAAS, EGNOS and MSAS |
Sonar
| Built-in sonar | Not fitted (chartplotter). Black-box sonar ready: add a Raymarine CP-series sonar module |
| External sonar modules | Black-box sonar ready: CP100, CP200, CP370, CP470 and CP570 over SeaTalkhs |
Networking
| Ethernet network | 2 x RayNet (SeaTalkhs) Ethernet ports |
| NMEA 2000 | 1 x NMEA 2000 port (via SeaTalkng) |
| NMEA 0183 | 2 receive / 1 transmit NMEA 0183 (on power cable) |
| Wireless | Built-in Wi-Fi and Bluetooth |
| Networked displays | Up to 6 displays networked over SeaTalkhs |
Connections
| Video input | 1 x composite video input (BNC), PAL or NTSC |
| Memory card | Dual microSD card slots for charts and data |
| Audio | Bluetooth audio and multimedia control |
Charts
| Supplied chart | Raymarine LightHouse base charts (no preloaded regional cartography) |
Physical
| Dimensions | 289.6 x 172.7 x 66.0 mm (11.4 x 6.8 x 2.6 in) |
| Weight | 3.63 kg (8 lbs) |
| Mounting | Surface (trunnion) or flush mounting |
Power
| Supply voltage | 10.8 V dc to 31.2 V dc (via SeaTalkng / NMEA 2000 or power cable) |
Environmental
| Waterproof rating | IPX6 |
Conformance
| Approvals | CE, FCC, Australia C-Tick / RCM |
