This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine
Raymarine c97 9 inch None-Touch Multifunction Display with Wi-Fi and Sonar and Navionics Plus Rest of World Silver Chart
Description

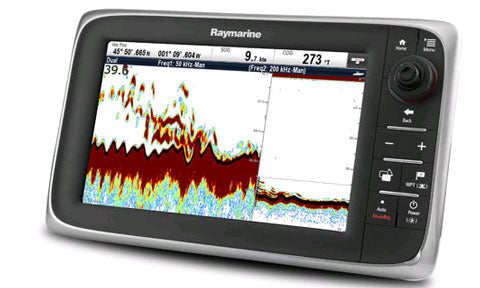

The Raymarine c97 is a 9 inch None-Touch multifunction display from Raymarine's cSeries, built around a bright, sunlight-viewable LED-backlit screen and the easy-to-use LightHouse II operating system. As well as None-Touch keypad and rotary control for precise operation in rough conditions, the c97 adds a built-in 600 W ClearPulse digital sonar with dual-frequency 50/200 kHz tuning. A fast internal GPS receiver, built-in Wi-Fi and Bluetooth and full RayNet and SeaTalkng networking let the c97 act as the hub of a Raymarine system, adding radar, external CP-series sonar modules, autopilot, instruments, AIS and cameras.
This pack is supplied with a Navionics+ Silver chart card covering the Rest of World.
PRODUCT DETAILS
- 9 inch sunlight-viewable LCD (800 x 480 pixels) with LED backlight and None-Touch keypad control
- Powered by the intuitive Raymarine LightHouse II operating system
- Fast internal high-sensitivity GPS receiver with WAAS, EGNOS and MSAS
- Built-in 600 W ClearPulse digital sonar with dual-frequency 50/200 kHz tuning
- Black-box sonar ready for Raymarine CP-series CHIRP sonar modules
- Built-in Wi-Fi for mobile app control plus Bluetooth for audio and remote control
- RayNet (SeaTalkhs) Ethernet and SeaTalkng networking for radar, autopilot, instruments, AIS and cameras
- Network up to 6 displays and mix with C-Series or E-Series displays
- Dual microSD chart readers supporting C-Map, Navionics and Raymarine LightHouse cartography
- Can be flush mounted or surface (trunnion) mounted
- IPX6 waterproof rating for confident use on deck
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 9" diagonal widescreen colour LCD |
| Display resolution | 800 x 480 pixels |
| Display type | Sunlight-viewable colour LCD with LED backlight, None-Touch keypad and rotary control |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GNSS | Built-in high-sensitivity GPS receiver |
| Differential | WAAS, EGNOS and MSAS |
Sonar
| Built-in sonar | 600 W ClearPulse digital conical sonar |
| Frequency | Dual frequency 50 kHz / 200 kHz |
| External sonar modules | Black-box sonar ready: CP100, CP200, CP370, CP470 and CP570 over SeaTalkhs |
Networking
| Ethernet network | 2 x RayNet (SeaTalkhs) Ethernet ports |
| NMEA 2000 | 1 x NMEA 2000 port (via SeaTalkng) |
| NMEA 0183 | 2 receive / 1 transmit NMEA 0183 (on power cable) |
| Wireless | Built-in Wi-Fi and Bluetooth |
| Networked displays | Up to 6 displays networked over SeaTalkhs |
Connections
| Video input | 1 x composite video input (BNC), PAL or NTSC |
| Memory card | Dual microSD card slots for charts and data |
| Audio | Bluetooth audio and multimedia control |
Physical
| Dimensions | 289.6 x 172.7 x 66.0 mm (11.4 x 6.8 x 2.6 in) |
| Weight | 3.63 kg (8 lbs) |
| Mounting | Surface (trunnion) or flush mounting |
Power
| Supply voltage | 10.8 V dc to 31.2 V dc (via SeaTalkng / NMEA 2000 or power cable) |
Environmental
| Waterproof rating | IPX6 |
Conformance
| Approvals | CE, FCC, Australia C-Tick / RCM |
