Raymarine CAM100 Day and Night CCTV Marine Camera (PAL)
Discontinued

This product has been discontinued by Raymarine and is no longer available to buy.

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Raymarine

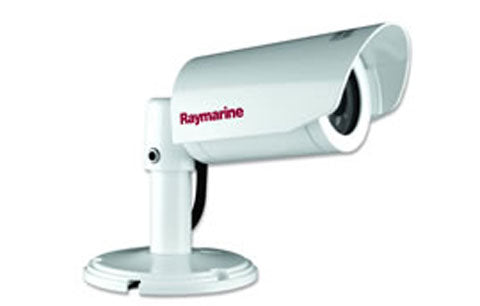

Raymarine CAM100 CCTV Day and Night Video Camera PAL

E03006
The CAM100 is a rugged colour CCTV marine camera with 550 TVL horizontal resolution and built-in infrared for round-the-clock viewing. Fourteen infrared LEDs give a clear picture in pitch darkness, and the 1/3" Sony Super HAD CCD sensor delivers a bright daytime image. Waterproof to IPX6, it ships with a sun cover, adjustable mounting bracket and adapter cable for easy installation.

Description

The Raymarine CAM100 is a high-quality colour CCTV camera built for the marine environment, delivering 550 TVL of horizontal resolution from a 1/3" Sony Super HAD CCD image sensor. Fourteen built-in infrared light-emitting diodes offer an exceptionally clear view in pitch-black darkness, while a minimum illumination of 0.1 lux (0 lux with infrared) ensures usable images in low light.

Supplied in PAL format (752 x 582 pixels), the CAM100 outputs a standard 75 ohm composite video signal through a male BNC connector, making it ideal for connection to a multifunction display or monitor with a composite video input. The housing is waterproof to IPX6 and CFR46, and the camera runs from a 12 V DC supply. A sun cover, adjustable mounting bracket, lens cover and adapter cable are included so the camera can be aimed and secured quickly for foredeck, cockpit, engine room or transom monitoring.

PRODUCT DETAILS

  • 550 TVL horizontal resolution colour CCTV camera
  • 1/3 inch Sony Super HAD CCD image sensor
  • Fourteen infrared LEDs for a clear view in total darkness
  • Minimum illumination 0.1 lux (0 lux with infrared)
  • PAL format composite video output (75 ohm, male BNC)
  • Waterproof to IPX6 and CFR46
  • 12 V DC operation with low power draw
  • Supplied with sun cover, adjustable bracket and adapter cable
  • CAM100 CCTV camera
  • Sun cover
  • Adjustable mounting bracket
  • Lens cover
  • Pan head screws (x3)
  • Hex key
  • Adapter cable
  • Nylon washers

No exploded diagram available for this product.

No compatible transducers listed for this product.

Raymarine Sun Cover for CAM100 CCTV Marine Camera

Raymarine Sun Cover for CAM100 CCTV Marine Camera

Raymarine Mounting Bracket for CAM100 CCTV Marine Camera

Raymarine Mounting Bracket for CAM100 CCTV Marine Camera

Raymarine Adapter Cable for CAM50 and CAM100 CCTV Cameras

Raymarine Adapter Cable for CAM50 and CAM100 CCTV Cameras

Raymarine 5 m Camera Extension Cable for CAM50 and CAM100

Raymarine 5 m Camera Extension Cable for CAM50 and CAM100

Raymarine 15 m Camera Extension Cable for CAM50 and CAM100

Raymarine 15 m Camera Extension Cable for CAM50 and CAM100

Raymarine Clear Plastic Dome for CAM50 CCTV Marine Camera

Raymarine Clear Plastic Dome for CAM50 CCTV Marine Camera

No compatible products found.

Camera

FormatPAL 752 x 582 pixels
Imager1/3 Sony Super HAD CCD
Horizontal resolution550 TVL
Infra red14 IR LEDs
Minimum illumination0.1 Lux at F2 - no IR, 0 Lux - with IR

Video

Video outputComposite 75 Ohms
Video connectionsMale BNC

Power

Power connection12 V DC
Power consumption130 mA - day, 280 mA - night, IR on @ 12 V DC

Environmental

WaterproofIPX6 and CFR46
Operating temperatures-10 C to +55 C (-14 F to 130 F)

No videos available for this product.

What resolution does the CAM100 produce?
The CAM100 is a colour CCTV camera with 550 TVL of horizontal resolution from a 1/3" Sony Super HAD CCD sensor, supplied here in PAL format (752 x 582 pixels). (Source: 81272_1.)
Can the CAM100 see in the dark?
Yes. The CAM100 has fourteen built-in infrared LEDs and a minimum illumination of 0.1 lux (0 lux with infrared), giving a clear view in pitch-black darkness. (Source: 81272_1.)
How does the CAM100 connect to a display?
The CAM100 outputs a standard 75 ohm composite video signal through a male BNC connector, for connection to a multifunction display or monitor with a composite video input. It runs from a 12 V DC supply. (Source: 81272_1.)
Is the CAM100 waterproof?
The CAM100 is waterproof to IPX6 and CFR46. It is not suitable for installation underwater. (Source: 81272_1.)
What is supplied with the CAM100?
The CAM100 is supplied with a sun cover, an adjustable mounting bracket, a lens cover, pan head screws, a hex key, an adapter cable and nylon washers. (Source: 81272_1.)
