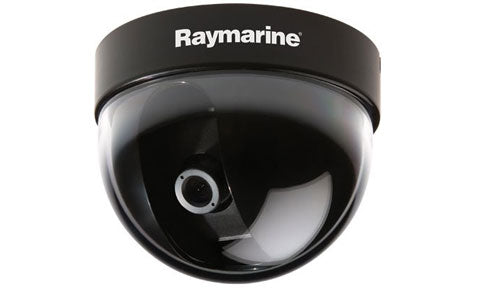

Raymarine CAM50 CCTV Reverse Image PAL
Description
The Raymarine CAM50 reverse-image camera is the mirrored-output version of Raymarine's compact colour marine CCTV camera, intended for use as a reversing or aft-facing camera where the on-screen image must read like a rear-view mirror. A 1/3" Sony DSP colour CCD sensor provides 380 TVL of horizontal resolution with a minimum illumination of 0.3 lux at F2.
Supplied in PAL format (500 x 582 pixels), it outputs a standard 75 ohm composite video signal through a female BNC connector for connection to a multifunction display or monitor with a composite video input. The discreet dome housing allows both pan and tilt adjustment so the view can be aimed precisely, and the unit is waterproof to IP63. It runs from a 12 V DC supply, and 5 m and 15 m extension cables are available to suit any cable run.
PRODUCT DETAILS
- Reverse (horizontally mirrored) image output for reversing and stern views
- Compact colour dome CCTV camera
- 1/3 inch Sony DSP colour CCD sensor, 380 TVL resolution
- Minimum illumination 0.3 lux at F2
- Pan and tilt adjustment for precise aiming
- PAL format composite video output (75 ohm, female BNC)
- Waterproof to IP63
- 5 m and 15 m extension cables available
- CAM50 reverse-image CCTV camera with dome
- Fixing screws (x2)
- Adapter cable
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Clear Plastic Dome for CAM50 CCTV Marine Camera
Raymarine Adapter Cable for CAM50 and CAM100 CCTV Cameras
Raymarine 5 m Camera Extension Cable for CAM50 and CAM100
Raymarine Sun Cover for CAM100 CCTV Marine Camera
Raymarine 15 m Camera Extension Cable for CAM50 and CAM100
Raymarine Mounting Bracket for CAM100 CCTV Marine Camera
No compatible products found.
Camera
| Format | PAL 500 x 582 pixels |
| Imager | 1/3 Sony DSP Color CCD |
| Horizontal resolution | 380 TVL |
| Scanning system | PAL 625 lines |
| Shutter speed | PAL 1/50 - 1/100,000 sec |
| Minimum illumination | 0.3 Lux at F2 |
| Lens | 3.6 mm (best focus 1.5 m, viewable distance 3.5 m) |
Video
| Video output | Composite 75 Ohms |
| Video connections | Female BNC |
Power
| Power connection | 12 V tinned leads |
| Power consumption | 80 mA with regulated power input |
Environmental
| Waterproof | IP63 |
| Operating temperatures | -10 C to +50 C (-14 F to 122 F) |
