Raymarine CP100 CHIRP DownVision Fishfinder Pack with CPT-100 Transom Transducer

E70205
This pack pairs the Raymarine CP100 CHIRP DownVision sonar module with the CPT-100 transom-mount transducer, giving you everything needed to add photo-like DownVision imaging and CHIRP fish targeting to a compatible LightHouse multifunction display. DownVision shows the bottom structure beneath your boat in fine detail, with depth performance to 183 m (600 ft).

Description

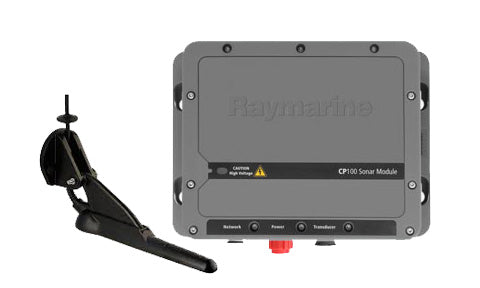

The Raymarine CP100 fishfinder pack combines the CP100 network sonar module with the CPT-100 transom-mount transducer, supplying everything you need to add CHIRP DownVision sonar to a compatible Raymarine LightHouse multifunction display.

The CP100 uses CHIRP technology to transmit across a wide spectrum of frequencies, producing photo-like images of the bottom structure beneath your boat. Dual-channel operation lets you view high-resolution DownVision structure imagery and simultaneously target bait and game fish on a separate conical CHIRP channel, with depth performance down to 183 m (600 ft) that suits freshwater and coastal fishing.

Supplied with the CPT-100 transom-mount transducer, this pack is ready to install and network with Raymarine's latest generation chartplotter displays.

PRODUCT DETAILS

  • Complete pack: CP100 CHIRP DownVision sonar module plus CPT-100 transom-mount transducer
  • Photo-like imagery of bottom structure using Raymarine's CHIRP DownVision technology
  • Dual-channel CHIRP sonar: view DownVision structure imagery and target fish with conical CHIRP simultaneously
  • Depth performance down to 183 m (600 ft), ideal for freshwater and coastal fishing
  • CPT-100 transom transducer included, ready to install
  • Networks with Raymarine's latest generation LightHouse chartplotter displays
  • Compact, waterproof black-box module rated to IPx6 and IPx7
  • CP100 CHIRP DownVision sonar module
  • CPT-100 transom-mount transducer
  • Documentation
  • Fixing screws x 4
  • Power cable 1.5 m (5 ft)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Sonar

ChannelsCHIRP conical sonar, DownVision
Beam coverageCHIRP sonar: conical beam; DownVision: wide (port / starboard) and thin (fore / aft)
Depth range0.6 m (2 ft) to 183 m (600 ft), depending on water conditions

Physical

DimensionsHeight: 162 mm (6.4 in), Width: 225 mm (8.9 in), Depth: 72 mm (2.8 in)
Weight0.6 kg (1.32 lbs)

Power

Nominal supply voltage12 V dc / 24 V dc
Operating voltage range10.8 V dc to 31.2 V dc
Power consumption5.6 W (maximum)
Current1 A peak
Fuse rating5 A

Environmental

Waterproof ratingIPx6, IPx7
Operating temperature0 C to 55 C (32 F to 131 F)
Storage temperature-30 C to +70 C (-22 F to 158 F)
Relative humidityUp to 95%

Conformance

StandardsEN 60945:2002
EMC directiveEMC Directive 2014/30/EU
Regional approvalsAustralia and New Zealand: C-Tick, Compliance Level 2

No videos available for this product.

No downloads available for this product.

What is the Raymarine CP100?
The CP100 is a network sonar module that adds CHIRP DownVision technology to a compatible Raymarine LightHouse multifunction display. It produces photo-like images of the bottom structure beneath your boat while targeting fish on a second CHIRP channel.
How deep does the CP100 work?
The CP100 has a depth range of 0.6 m (2 ft) to 183 m (600 ft), depending on water conditions, transducer installation and the reflectivity of targets and structure.
Which transducer does the CP100 use?
The CP100 uses the CPT-100 transom-mount DownVision transducer, which provides both the DownVision and conical CHIRP sonar channels.
What is the difference between the CP100 and CP200?
The CP100 provides CHIRP DownVision (down-looking) imaging and conical CHIRP fish targeting, while the CP200 provides CHIRP SideVision (side-looking) imaging to the port and starboard of your boat using the CPT-200 transducer.
What is included in the box?
The CP100 ships with the sonar module, documentation, four fixing screws and a 1.5 m (5 ft) power cable. The CPT-100 transducer is ordered separately, or choose the E70205 pack which includes it.
