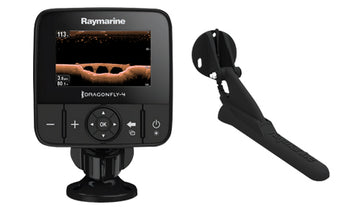

Raymarine Dragonfly-4dv fishfinder with CHIRP Down vision

Manufacturer Part Number:

e70291

Enquire

Sorry no longer available

£181.20 inc VAT

£151.00 ex VAT

Manufacturer Part Number:

e70291

The Dragonfly 4dv is a well priced sonar that uses wide spectrum CHIRP sonar imaging technology. Unlike conventional fishfinder that transmit at a single frequency with each pulse, Dragonflys DownVision sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies simultaneously – the result is much higher-resolution, life-like sonar images. An all weather optically bonded display deliver brighter colors, sharper contrast, and will never fog up. Supplied with a CHIRP Transom mount transducer.

Home or Marina Delivery

Get it as soon as tomorrow

Enter postcode to check

Pick up at Hamble

Pick it up today

More Information

General
Dimension	7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm)
Weight	1.1 lbs (0.5 kg)
Water rating	IPX7
Display Type	WVGA, IPS
Display Size	4.3″ x 2.6″ (10.9 x 6.6 cm)
Display Resolution	800 x 480 pixels
Mounting Options	Bail or flush
Input	Yes

Maps & memory
Accepts Data Cards	1 microSD™ card; 32 GB maximum size
Waypoints	5000
Track points	50000
Tracks	50 saved tracks
Navigation Routes	100

Sensors
GPS	Yes
Galileo	Yes
Has built-in receiver	Yes
Receiver	5 Hz
Supports WAAS	Yes

Built-in maps
Built-in Auto Guidance+	Yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal	Yes (see Additional)
Garmin Navionics+™ (Coastal)	Yes (see Additional)
Garmin Navionics+ (Inland)	Yes (see Additional)

Optional map support
BlueChart g3	Yes
BlueChart g3 Vision	Yes
Garmin Navionics+™	Yes
Garmin Navionics Vision+™	Yes
Garmin Quickdraw Contours	Yes

Chartplotter features
ActiveCaptain Mobile Planning Compatible	yes

Electrical features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	1 A
Maximum current draw at 12 Vdc	1.5 A
Maximum power usage at 10 Vdc	18W

Sonar features & specifications
Displays sonar	Yes
Power output	500W
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800 kHz

Connections
4-pin transducer ports	1
Garmin Wi-Fi network (local connection)	Yes

Security Information
Security updates until at least (YYYY-MM-DD)	2024-10-25

Additional
Additional	Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland Garmin Navionics+ (inland): 53cv U.S. lakes Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
