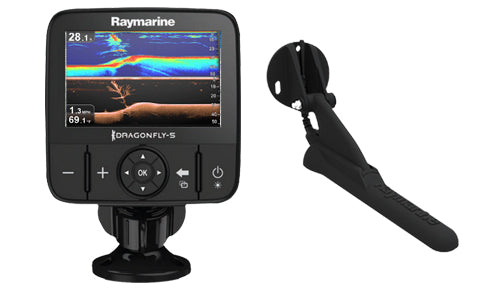

Raymarine Dragonfly-5dvs fishfinder with CHIRP Down vision and Sonar
Manufacturer Part Number:
E70306
Manufacturer Part Number:
E70306
The Dragonfly 5DVS offers dual CHIRP sonar channels - traditional sonar and DownVision. Unlike conventional fishfinder that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies simultaneously – the result is much higher-resolution, life-like sonar images. An all weather optically bonded display deliver brighter colors, sharper contrast, and will never fog up. Supplied with a CHIRP Transom mount transducer
Home or Marina Delivery
Pick up at Hamble
More Information
Without Transducer
- ECHOMAP Unit
- Power/data cable
- 8-pin to 4-pin transducer adapter cable
- Bail mount
- Flush mount
- Hardware
- Documentation
- Raymarine Dragonfly-4, Dragonfly-5, Dragonfly-7Pro, Wi-Fish Installation and operation instructions
- Raymarine Dragonfly-6, Dragonfly-7 Installation and operation instructions
- Raymarine Dragonfly CPT-DV & CPT-DVS hull, step, trolling motor bracket Installation
- Raymarine Dragonfly surface mounting Installation instructions
| General | |
|---|---|
| Dimension | 7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm) |
| Weight | 1.1 lbs (0.5 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, IPS |
| Display Size | 4.3″ x 2.6″ (10.9 x 6.6 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Yes |
| Maps & memory | |
|---|---|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
| Built-in maps | |
|---|---|
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
| Garmin Navionics+™ (Coastal) | Yes (see Additional) |
| Garmin Navionics+ (Inland) | Yes (see Additional) |
| Optional map support | |
|---|---|
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter features | |
|---|---|
| ActiveCaptain Mobile Planning Compatible | yes |
| Electrical features | |
|---|---|
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
| Sonar features & specifications | |
|---|---|
| Displays sonar | Yes |
| Power output | 500W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800 kHz |
| Connections | |
|---|---|
| 4-pin transducer ports | 1 |
| Garmin Wi-Fi network (local connection) | Yes |
| Security Information | |
|---|---|
| Security updates until at least (YYYY-MM-DD) | 2024-10-25 |
| Additional | |
|---|---|
| Additional |
|
