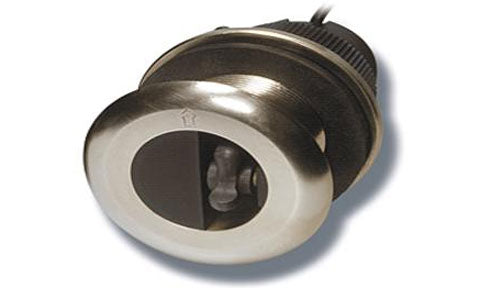

Raymarine DST800 Smart Bronze Depth, Speed, Temperature Through Hull Transducer

Raymarine DST800 Smart Bronze Depth, Speed, Temperature Through Hull Transducer
Enquire
£397.00 inc VAT
£330.83 ex VAT

Manufacturer Part Number:

A22146

The DST800 Smart Speed, Depth Temperature Low Profile Bronze Through Hull Retractable Transducer. Operates at 235kHz so there is no interference with your 50/200 kHz fishfinder transducer. Compatible hull material: Wood and fiberglass. 2.5 meter cable with SeaTalk ng connector. Hole diameter for installation: 2 inch. Compatible with SeaTalk ng instruments ST70, i70, i70s and Multifunction Displays.

Home or Marina Delivery

Get it as soon as tomorrow
Enter postcode to check

Pick up at Hamble

Pick it up today

More Information

Raymarine DST810 Smart Plastic Depth, Speed, Temperature Through Hull Transducer

Raymarine DST810 Smart Plastic Depth, Speed, Temperature Through Hull Transducer

£361.25 inc VAT
Raymarine DT800 Smart Plastic Depth, Temperature Transducer 12 degree Tilted Element

Raymarine DT800 Smart Plastic Depth, Temperature Transducer 12 degree Tilted Element

£318.76 inc VAT
Raymarine P79S Smart Depth In Hull Depth Transducer with Fitting Kit, SeaTalk ng

Raymarine P79S Smart Depth In Hull Depth Transducer with Fitting Kit, SeaTalk ng

£335.75 inc VAT
Raymarine DST800 Smart Plastic Depth, Speed, Temperature Through Hull Transducer

Raymarine DST800 Smart Plastic Depth, Speed, Temperature Through Hull Transducer

£287.00 inc VAT
Raymarine DST800 Smart Bronze Depth, Speed, Temperature Through Hull Transducer

Raymarine DST800 Smart Bronze Depth, Speed, Temperature Through Hull Transducer

£397.00 inc VAT
Raymarine DT800 Smart Bronze Depth, Temperature Transducer 12 degree Tilted Element

Raymarine DT800 Smart Bronze Depth, Temperature Transducer 12 degree Tilted Element

£398.00 inc VAT
Raymarine DT800 Smart Plastic Depth, Temperature Transducer 0 degree Tilted Element

Raymarine DT800 Smart Plastic Depth, Temperature Transducer 0 degree Tilted Element

£318.76 inc VAT





Features

  • Tilted-Element Broadband-Ceramic versions available in a 0° or 12° or 20° tilt
  • Available in NMEA 0183 and NMEA 2000® versions
  • 235 kHz frequency prevents mutual interference with other echosounders on the vessel
  • Temperature sensor in DT800 models
  • Cable lengths up to 100 m (330’) are possible with no loss of performance—NMEA 0183 only
  • Plastic, bronze, or stainless steel housings available
  • Retractable housing with water valve
  • Available in low-profile, countersunk, or beveled-edge housings



Specifications

  • Weight:
    • 0.9 kg (2 lb)—Plastic
    • 1.5 kg (3.4 lb)—Bronze
    • 1.6 kg (3.6 lb)—Stainless Steel
  • Acoustic Window: Urethane
  • Data Update Rate: 1 per second
  • Minimum Depth Range: 0.5 m (1.6’)
  • Maximum Depth Range:
    • Up to 100 m (330’)—Non-Broadband
    • Up to 180 m (590’)—Broadband
  • Pressure Rating: 3 m (10’)
  • Supply Voltage:
    • 10 VDC to 25 VDC—NMEA 0183
    • 9 VDC to 16 VDC—NMEA 2000
  • Supply Current:
    • <40 mA—NMEA 0183
    • <200 mA—NMEA 2000
  • Standard Cable Length:
    • 10 m (33’)—NMEA 0183
    • 6 m (20’) devicenet—NMEA 2000
  • Temperature Accuracy: ±0.5°C (±1.8°F)
  • Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
  • NMEA 2000® Load Equivalency Number (LEN): 4
  • CE Regulation: Complies to IERC60945
