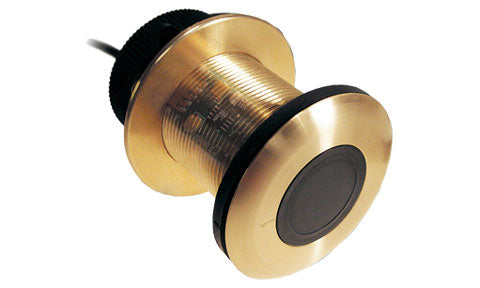

Raymarine DT800 Smart Bronze Depth, Temperature Transducer 12 degree Tilted Element
Description
The Raymarine DT800 is a smart depth and water-temperature transducer for Raymarine instrument and chartplotter systems. Its SeaTalkng output plugs straight into your network so the readings appear on every connected device, with calibration carried out from a networked Axiom display or i70s instrument.
This variant uses a bronze housing, the right choice for fibreglass or wood hulls, and carries a 12 degree tilted element to compensate for hull deadrise on V-bottom boats. The DT800 operates at 235 kHz to avoid interference with other onboard sounders and provides 100 Watts of power for accurate depths from 0.5 m (1.6 ft) to 180 m (600 ft). The retractable insert with water valve makes maintenance simple, and the 6 m (20 ft) cable terminates in a SeaTalkng connector.
PRODUCT DETAILS
- Smart depth and water-temperature transducer with SeaTalkng output that plugs directly into your Raymarine network
- 12 degree tilted internal element compensates for hull deadrise on V-bottom boats
- 235 kHz operating frequency prevents interference with other onboard depth sounders or fishfinders
- 100-Watt output provides accurate depths from 0.5 m (1.6 ft) to 180 m (600 ft)
- Bronze housing suitable for fibreglass or wood hulls
- Retractable housing with water valve for easy maintenance
- 6 m (20 ft) interconnect cable with SeaTalkng connector
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine i70s Multifunction Instrument Display
Raymarine Axiom 2 Pro 12 S
General
| Measurements | Depth and water temperature |
| Housing | 2-inch (51 mm) bronze through-hull, retractable with water valve |
| Hull material suitability | Bronze, suitable for fibreglass or wood hulls |
| Element tilt | 12 degree |
Sonar
| Operating frequency | 235 kHz |
| Power output | 100 W |
| Depth range | 0.5 m (1.6 ft) to 180 m (600 ft) |
Interface
| Output / connectivity | SeaTalkng / NMEA 2000 (digital) |
| Cable | 6 m (20 ft) interconnect cable with SeaTalkng connector |
