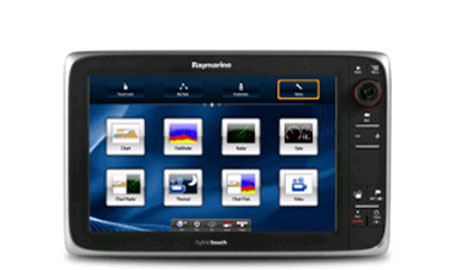

Raymarine e125 12 Inch HybridTouch MFD with Wi-Fi and Navionics+ ROW Silver chart card
Description
The Raymarine e125 is a 12-inch HybridTouch multifunction display from the e-Series, running the intuitive LightHouse II operating system. HybridTouch gives you the choice of fast touchscreen control or precise operation using the dedicated keypad and rotary UniController with integrated joystick, so the display stays easy to use even in rough conditions. The optically bonded, sunlight-viewable screen delivers sharp, high-contrast charting in all light.
The e125 is supplied as a chartplotter and is black-box sonar ready, so a Raymarine sonar module can be added over the SeaTalkhs network to add CHIRP, DownVision or SideVision fishfinding when required.
An internal GPS receiver, Wi-Fi and Bluetooth are built in, and the e125 networks over SeaTalkhs, SeaTalkng / NMEA 2000 and NMEA 0183 with Raymarine radar, AIS, autopilot, instruments, thermal cameras and additional displays. Navigate with Raymarine LightHouse, Navionics or C-MAP cartography, and use the RayControl, RayView and RayRemote apps to view and control the display from a phone or tablet.
This package is supplied with a Navionics+ Silver chart card covering rest-of-world waters.
PRODUCT DETAILS
- 12-inch HybridTouch display: touchscreen plus keypad and rotary UniController
- Optically bonded, sunlight-viewable LCD with 1200 nit brightness
- Raymarine LightHouse II operating system
- Built-in 50 channel GPS receiver (WAAS, EGNOS, MSAS)
- Black-box sonar ready: add a Raymarine sonar module for fishfinding
- Built-in Wi-Fi and Bluetooth with RayControl, RayView and RayRemote app support
- Networks over SeaTalkhs, SeaTalkng / NMEA 2000 and NMEA 0183
- Compatible with Raymarine radar, AIS, autopilot, instruments and thermal cameras
- Raymarine LightHouse, Navionics and C-MAP cartography support
- IPX7 waterproof; flush or trunnion bracket mounting
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Display
| Display size | 12.1" optically bonded colour LCD, sunlight viewable |
| Display resolution | 1280 x 800 pixels |
| Display type | HybridTouch (touchscreen plus keypad and rotary UniController with joystick) |
| Brightness | 1200 cd/m2 (nits) |
| Screen treatment | Optically bonded, sunlight viewable LCD |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GPS | Built-in 50 channel GPS receiver |
| Differential / SBAS | WAAS, EGNOS and MSAS |
| External GPS option | SeaTalk or NMEA 0183 external GPS receiver supported |
Sonar
| Built-in sonar | Not fitted (chartplotter). Black-box sonar ready: sonar available by adding an external Raymarine sonar module over SeaTalkhs |
Cartography and memory
| Internal memory | 2 GB |
| Card slots | 2 x microSD card reader (up to 32 GB per card) |
| Supported charts | Raymarine LightHouse, Navionics and C-MAP cartography |
| Waypoints / routes / tracks | 3000 waypoints, 150 routes, 15 tracks (10,000 track points) |
| Supplied chart card | Navionics+ ROW Silver chart card (cartography only differs from the base model) |
Networking
| Marine network | 2 x SeaTalkhs (RayNet) Ethernet network ports |
| NMEA 2000 | 1 x SeaTalkng / NMEA 2000 |
| NMEA 0183 | NMEA 0183 input and output |
| SeaTalk | SeaTalk supported via SeaTalk to SeaTalkng converter |
| Wireless | Built-in Wi-Fi and Bluetooth |
Video
| Video input | 1 x composite video input (BNC, PAL or NTSC) |
| External display output | 1 x VGA video output (15-pin D-type) for an external monitor |
Connections
| Radar | Compatible with Raymarine SeaTalkhs digital radomes and Open Array scanners |
| Autopilot | Compatible with Raymarine SeaTalk and SeaTalkng autopilots |
| Instruments | Compatible with Raymarine i50, i60, i70, ST70 and ST60 instruments |
| AIS | Compatible with Raymarine AIS receivers and transceivers |
| Entertainment | FUSION-Link audio and SiriusXM (where available) |
| Mobile apps | RayControl, RayView and RayRemote app control over Wi-Fi |
Mounting
| Mounting options | Flush (surface) mount or trunnion bracket mount |
Physical
| Dimensions (W x H x D) | 354 x 222 x 95 mm (13.93 x 8.74 x 3.75 in) |
| Weight | 3.32 kg |
Power
| Supply voltage | 10.8 to 31.2 V DC (12 / 24 V systems) |
| Power consumption | 36 W (full brightness) |
Environmental
| Waterproof rating | IPX7 |
Conformance
| Approvals | CE, FCC; 2 year warranty (3 years with product registration) |
