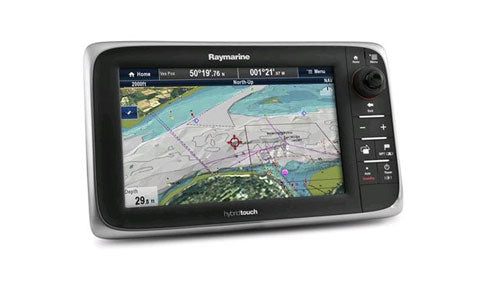

Raymarine e97 9 Inch HybridTouch Multifunction Display with Wi-Fi and Sonar
Description
The Raymarine e97 is a 9-inch HybridTouch multifunction display from the e-Series, running the intuitive LightHouse II operating system. HybridTouch gives you the choice of fast touchscreen control or precise operation using the dedicated keypad and rotary UniController with integrated joystick, so the display stays easy to use even in rough conditions. The optically bonded, sunlight-viewable screen delivers sharp, high-contrast charting in all light.
Built-in 600 W ClearPulse digital sonar targets fish and reveals structure with excellent clarity at depths of up to 3000 ft, with automatic gain control on the 50, 83 and 200 kHz frequencies. When more power is needed the e97 is also black-box sonar ready, accepting Raymarine CHIRP, DownVision and SideVision sonar modules over the SeaTalkhs network.
An internal GPS receiver, Wi-Fi and Bluetooth are built in, and the e97 networks over SeaTalkhs, SeaTalkng / NMEA 2000 and NMEA 0183 with Raymarine radar, AIS, autopilot, instruments, thermal cameras and additional displays. Navigate with Raymarine LightHouse, Navionics or C-MAP cartography, and use the RayControl, RayView and RayRemote apps to view and control the display from a phone or tablet.
PRODUCT DETAILS
- 9-inch HybridTouch display: touchscreen plus keypad and rotary UniController
- Optically bonded, sunlight-viewable LCD with 1200 nit brightness
- Raymarine LightHouse II operating system
- Built-in 50 channel GPS receiver (WAAS, EGNOS, MSAS)
- Built-in 600 W ClearPulse digital sonar (50 / 83 / 200 kHz)
- Black-box sonar ready for CHIRP, DownVision and SideVision modules
- Built-in Wi-Fi and Bluetooth with RayControl, RayView and RayRemote app support
- Networks over SeaTalkhs, SeaTalkng / NMEA 2000 and NMEA 0183
- Compatible with Raymarine radar, AIS, autopilot, instruments and thermal cameras
- Raymarine LightHouse, Navionics and C-MAP cartography support
- IPX7 waterproof; flush or trunnion bracket mounting
No exploded diagram available for this product.
Raymarine P79 Depth 50-200 kHz In Hull Transducer
Raymarine P79 600w 50-200 kHz Adjustable In-Hull Angle Transducer
Raymarine P79 In Hull Depth Transducer with Fitting Kit
Raymarine P66 600W 50-200 kHz Speed, Depth and Temperature Transom Mount Transducer
Raymarine P319 600w 50-200 kHz Low Profile Plastic Through Hull Transducer
Raymarine B117 600w 50-200 kHz Low Profile Bronze Through Hull Transducer
Raymarine P74 Depth,Temp 50-200 kHz In Hull or Trolling Motor Transducer
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 9" optically bonded colour LCD, sunlight viewable |
| Display type | HybridTouch (touchscreen plus keypad and rotary UniController with joystick) |
| Brightness | 1200 cd/m2 (nits) |
| Screen treatment | Optically bonded, sunlight viewable LCD |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GPS | Built-in 50 channel GPS receiver |
| Differential / SBAS | WAAS, EGNOS and MSAS |
| External GPS option | SeaTalk or NMEA 0183 external GPS receiver supported |
Sonar
| Built-in sonar | 600 W ClearPulse digital conical sonar (fishfinder) |
| Frequency | 50 / 83 / 200 kHz |
| Maximum depth | Up to 3000 ft (approximately 900 m), transducer dependent |
| Transducer connection | Direct connection to Raymarine 600 W transducers (P48, P58, P66, P79, B-series), Minn Kota via A62363 adaptor, or any 600 W DSM-compatible transducer via the E66066 adaptor cable |
| External sonar | Compatible with external Raymarine black-box sonar modules (CHIRP, DownVision and SideVision) over SeaTalkhs |
Cartography and memory
| Internal memory | 2 GB |
| Card slots | 2 x microSD card reader (up to 32 GB per card) |
| Supported charts | Raymarine LightHouse, Navionics and C-MAP cartography |
| Waypoints / routes / tracks | 3000 waypoints, 150 routes, 15 tracks (10,000 track points) |
Networking
| Marine network | 2 x SeaTalkhs (RayNet) Ethernet network ports |
| NMEA 2000 | 1 x SeaTalkng / NMEA 2000 |
| NMEA 0183 | NMEA 0183 input and output |
| SeaTalk | SeaTalk supported via SeaTalk to SeaTalkng converter |
| Wireless | Built-in Wi-Fi and Bluetooth |
Video
| Video input | 1 x composite video input (BNC, PAL or NTSC) |
| External display output | 1 x VGA video output (15-pin D-type) for an external monitor |
Connections
| Radar | Compatible with Raymarine SeaTalkhs digital radomes and Open Array scanners |
| Autopilot | Compatible with Raymarine SeaTalk and SeaTalkng autopilots |
| Instruments | Compatible with Raymarine i50, i60, i70, ST70 and ST60 instruments |
| AIS | Compatible with Raymarine AIS receivers and transceivers |
| Entertainment | FUSION-Link audio and SiriusXM (where available) |
| Mobile apps | RayControl, RayView and RayRemote app control over Wi-Fi |
Mounting
| Mounting options | Flush (surface) mount or trunnion bracket mount |
Physical
| Dimensions (W x H x D) | 290 x 173 x 65 mm (11.4 x 6.8 x 2.56 in) |
| Weight | 3.5 kg |
Power
| Supply voltage | 10.8 to 31.2 V DC (12 / 24 V systems) |
| Power consumption | 16 W (full brightness) |
Environmental
| Waterproof rating | IPX7 |
Conformance
| Approvals | CE, FCC; 2 year warranty (3 years with product registration) |
