This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

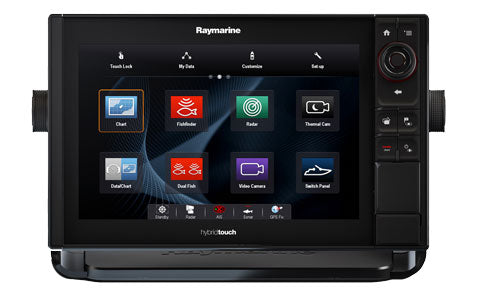

Raymarine eS127 12.1 inch HybridTouch Multifunction Display with Wi-Fi and Sonar and Navionics+ Rest of World Silver Chart
Description
The Raymarine eS127 is a 12.1 inch HybridTouch multifunction display from Raymarine's eS-Series, built around a bright, optically bonded glass-bridge screen and the easy-to-use LightHouse II operating system. HybridTouch control combines a responsive touchscreen with a tactile keypad and rotary controller, so you stay in command whatever the conditions.
A built-in 600 W ClearPulse digital sonar channel delivers clear, clutter-free fishfinding, and the eS127 accepts a wide range of 50/200 kHz transducers or an external Raymarine CP-series sonar module when you need more power. A fast 10 Hz internal GPS, GLONASS and BeiDou receiver keeps your position updating quickly, while built-in Wi-Fi and Bluetooth add mobile app integration, wireless software updates and audio control. The eS127 connects over RayNet and SeaTalkng to Raymarine radar, the Evolution autopilot, instruments, cameras and AIS, and networks with up to ten LightHouse displays to build a complete navigation system. This pack is supplied with a Navionics+ Silver chart card covering the rest of the world.
PRODUCT DETAILS
- 12.1 inch optically bonded glass-bridge display with HybridTouch touch and keypad control
- Powered by the intuitive Raymarine LightHouse II operating system
- Built-in 600 W ClearPulse digital sonar for clear, clutter-free fishfinding
- Fast 10 Hz internal GPS / GLONASS / BeiDou receiver for rapid position updates
- Built-in Wi-Fi for mobile app integration and Bluetooth for audio and remote control
- RayNet and SeaTalkng networking for radar, autopilot, instruments, AIS and cameras
- Networks with up to ten LightHouse-powered Raymarine multifunction displays
- Supports a wide choice of C-Map, Navionics and Raymarine LightHouse cartography
- Accepts 50/200 kHz transducers or an external Raymarine CP-series sonar module
- IPX6 / IPX7 waterproof rating for confident use on deck
No exploded diagram available for this product.
Raymarine P79 Depth 50-200 kHz In Hull Transducer
Raymarine P79 In Hull Depth Transducer with Fitting Kit
Raymarine P79 600w 50-200 kHz Adjustable In-Hull Angle Transducer
Raymarine P319 600w 50-200 kHz Low Profile Plastic Through Hull Transducer
Raymarine B117 600w 50-200 kHz Low Profile Bronze Through Hull Transducer
Raymarine P66 600W 50-200 kHz Speed, Depth and Temperature Transom Mount Transducer
Raymarine P74 Depth,Temp 50-200 kHz In Hull or Trolling Motor Transducer
No spares or accessories listed for this product.
Display
| Display size | 12.1" optically bonded colour LCD |
| Display type | HybridTouch (touchscreen plus keypad and rotary control), optically bonded, sunlight viewable |
| Brightness | 1250 cd/m2 (nits) |
| Colours | HD Colour with 256 colour target discrimination |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GNSS | Built-in GPS / GLONASS / BeiDou receiver |
| Update rate | 10 Hz, 72 channel |
| External GNSS option | RS130 or Raystar125 (sold separately) |
Sonar
| Built-in sonar | 600 W ClearPulse digital CHIRP conical sonar |
| Frequency | 50 kHz / 200 kHz |
| Maximum depth | Up to approximately 3000 ft (900 m), transducer dependent |
| Transducer | Direct connection to 600 W transducers (P48, P58, P74, B60, B744V), or any 600 W / 1 kW transducer via the optional E66066 adaptor cable |
Networking
| Ethernet network | 2 x RayNet (10/100 Mbit/s) Ethernet |
| NMEA 2000 | 1 x NMEA 2000 / SeaTalkng port |
| NMEA 0183 | 2 receive / 1 transmit NMEA 0183 (on power cable) |
| SeaTalk | Supported via E22158 SeaTalk to SeaTalkng converter (sold separately) |
| Wireless | Built-in Wi-Fi and Bluetooth 2.1 + EDR (AVRCP 1.0) |
| Maximum radar | Up to 2 Raymarine radar scanners (SeaTalkhs) |
| Maximum MFDs on network | Up to 10 LightHouse-powered Raymarine MFDs (SeaTalkhs) |
Connections
| Video output | 1 x HDMI video output |
| Video input | 1 x composite video (BNC, on power cable); compatible with PAL or NTSC |
| IP cameras | Up to 10 IP cameras (CAM200IP or ONVIF-compatible) over SeaTalkhs |
| Memory card | 2 x microSD card slots (up to 32 GB each) |
| Audio | Fusion, NMEA 2000, Bluetooth and SiriusXM audio control |
| Compatible sonar modules | CP100 DownVision, CP200 SideVision, CP370, CP470 and CP570 CHIRP (over SeaTalkhs) |
Physical
| Mounting | Surface (trunnion bracket) or flush mounting |
Power
| Supply voltage | 12 V dc / 24 V dc (10.8 V dc to 31.2 V dc) |
Environmental
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
Cartography
| Supplied chart | Navionics+ Rest of World Silver Chart (cartography only differs from the base model) |
