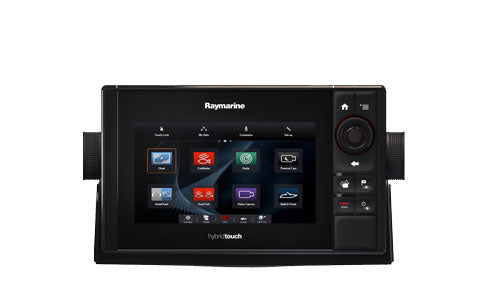

Raymarine eS75 7 inch HybridTouch Multifunction Display with Wi-Fi and Navionics+ Rest of World Silver Chart
Description
The Raymarine eS75 is a 7 inch HybridTouch multifunction display from Raymarine's eS-Series, built around a bright, optically bonded glass-bridge screen and the easy-to-use LightHouse II operating system. HybridTouch control combines a responsive touchscreen with a tactile keypad and rotary controller, so you stay in command whatever the conditions.
Sonar can be added at any time by networking an external Raymarine CP-series sonar module, so the eS75 grows with your boat. A fast 10 Hz internal GPS, GLONASS and BeiDou receiver keeps your position updating quickly, while built-in Wi-Fi and Bluetooth add mobile app integration, wireless software updates and audio control. The eS75 connects over RayNet and SeaTalkng to Raymarine radar, the Evolution autopilot, instruments, cameras and AIS, and networks with up to ten LightHouse displays to build a complete navigation system. This pack is supplied with a Navionics+ Silver chart card covering the rest of the world.
PRODUCT DETAILS
- 7 inch optically bonded glass-bridge display with HybridTouch touch and keypad control
- Powered by the intuitive Raymarine LightHouse II operating system
- Fast 10 Hz internal GPS / GLONASS / BeiDou receiver for rapid position updates
- Built-in Wi-Fi for mobile app integration and Bluetooth for audio and remote control
- RayNet and SeaTalkng networking for radar, autopilot, instruments, AIS and cameras
- Networks with up to ten LightHouse-powered Raymarine multifunction displays
- Supports a wide choice of C-Map, Navionics and Raymarine LightHouse cartography
- Sonar-ready: add an external Raymarine CP-series sonar module when required
- IPX6 / IPX7 waterproof rating for confident use on deck
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Display
| Display size | 7" optically bonded colour LCD |
| Display resolution | 800 x 480 WVGA |
| Display type | HybridTouch (touchscreen plus keypad and rotary control), optically bonded, sunlight viewable |
| Brightness | 1250 cd/m2 (nits) |
| Colours | HD Colour with 256 colour target discrimination |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GNSS | Built-in GPS / GLONASS / BeiDou receiver |
| Update rate | 10 Hz, 72 channel |
| External GNSS option | RS130 or Raystar125 (sold separately) |
Sonar
| Built-in sonar | Not fitted (chartplotter). Sonar available by adding an external Raymarine CP-series sonar module |
Networking
| Ethernet network | 1 x RayNet (10/100 Mbit/s) Ethernet |
| NMEA 2000 | 1 x NMEA 2000 / SeaTalkng port |
| NMEA 0183 | 2 receive / 1 transmit NMEA 0183 (on power cable) |
| SeaTalk | Supported via E22158 SeaTalk to SeaTalkng converter (sold separately) |
| Wireless | Built-in Wi-Fi and Bluetooth 2.1 + EDR (AVRCP 1.0) |
| Maximum radar | Up to 2 Raymarine radar scanners (SeaTalkhs) |
| Maximum MFDs on network | Up to 10 LightHouse-powered Raymarine MFDs (SeaTalkhs) |
Connections
| Video output | Not fitted on 7 inch models |
| Video input | 1 x composite video (BNC, on power cable); compatible with PAL or NTSC |
| IP cameras | Up to 10 IP cameras (CAM200IP or ONVIF-compatible) over SeaTalkhs |
| Memory card | 2 x microSD card slots (up to 32 GB each) |
| Audio | Fusion, NMEA 2000, Bluetooth and SiriusXM audio control |
| Compatible sonar modules | CP100 DownVision, CP200 SideVision, CP370, CP470 and CP570 CHIRP (over SeaTalkhs) |
Physical
| Dimensions | 244 x 145 x 66 mm (9.6 x 5.7 x 2.6 in) |
| Weight | 1.7 kg (3.74 lbs) |
| Mounting | Surface (trunnion bracket) or flush mounting |
Power
| Supply voltage | 12 V dc / 24 V dc (10.8 V dc to 31.2 V dc) |
| Power consumption | 7.97 W (full brightness) |
| Power consumption (eco) | 4.30 W (power-save mode) |
Environmental
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
Cartography
| Supplied chart | Navionics+ Rest of World Silver Chart (cartography only differs from the base model) |
