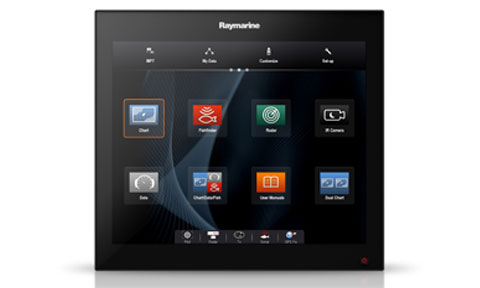

Raymarine gS195 19in Glass Bridge Multifunction Display (6 o'clock optimal viewing)
Description
The Raymarine gS195 is a 19-inch Glass Bridge multifunction display, the flagship of Raymarine's LightHouse II range. Its edge-to-edge optically styled glass front, fast multi-touch interface and high-bandwidth gigabit networking make it the centrepiece of a fully integrated navigation, radar, sonar and entertainment system.
The gS195 brings together chartplotting, radar, sonar, thermal and video imaging, autopilot control and engine data on a single 4:3 1280 x 1024 pixels display. It runs LightHouse II, with a responsive home screen, customisable pages and split-screen views, and supports C-MAP and Navionics cartography. Built-in Wi-Fi and Bluetooth allow remote viewing through the Raymarine app and wireless media control.
Designed as a true glass-bridge helm display, the gS195 has no built-in sonar; instead it connects to Raymarine's range of external DownVision, SideVision and CHIRP sonar modules over the high-speed SeaTalkhs network, so you can scale the fishfinding capability to your boat. It also networks seamlessly with Raymarine radar, Evolution autopilots, AIS, instruments and Fusion entertainment systems.
This variant is optimised for a 6 o'clock viewing position (inverted mounting), giving the best contrast and colour when the display is viewed from below its centre line, such as when fitted into a console or helm below eye level.
PRODUCT DETAILS
- 19-inch TFT LED Glass Bridge multifunction display running Raymarine LightHouse II
- 1280 x 1024 pixels (SXGA) resolution, 24-bit colour, 4:3 aspect ratio for sharp, vivid chart, radar and sonar imagery
- Fast multi-touch HybridTouch operation, with optional RMK-9 remote keypad control
- Gigabit (10 / 100 / 1000 Mbit/s) SeaTalkhs networking with Power over Ethernet for high-bandwidth radar, sonar and video
- No built-in sonar: connects to external Raymarine DownVision, SideVision and CHIRP sonar modules over SeaTalkhs
- Networks with Raymarine radar, Evolution autopilots, AIS, instruments and Fusion entertainment systems
- Built-in Wi-Fi and Bluetooth for the Raymarine mobile app and wireless media player control
- Internal GPS, with support for external RS130 / Raystar125 GNSS receivers
- HD-SDI and HDMI video, plus dual composite inputs, for radar, thermal camera and HD video integration
- Optimised for a 6 o'clock (inverted) viewing position
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Display
| Screen size | 19 in. |
| Display type | TFT backlit LED |
| Colour depth | 24-bit |
| Resolution | 1280 x 1024 pixels (SXGA) |
| Aspect ratio | 4:3 |
| Touchscreen | Multi-touch (HybridTouch operation with optional RMK-9 remote keypad) |
| Operating system | Raymarine LightHouse II |
GNSS receiver
| Internal GNSS | Internal GPS receiver |
| External GNSS options | RS130 GPS, Raystar125 GPS or Raystar125+ GPS (via optional SeaTalk to SeaTalkng converter), or NMEA 0183 GNSS receiver |
Networking
| NMEA 0183 | 2 x NMEA 0183 ports (Port 1: input and output, 4800 / 38400 baud; Port 2: input only, 4800 / 38400 baud) |
| Ethernet (SeaTalkhs) | 2 x RayNet (SeaTalkhs) ports, 10 / 100 / 1000 Mbit/s with PoE |
| SeaTalkng / NMEA 2000 | 1 x SeaTalkng connection (NMEA 2000 via optional DeviceNet adaptor) |
| SeaTalk | Supported via optional SeaTalk to SeaTalkng converter |
| Wi-Fi | 802.11 b / g |
| Bluetooth | Bluetooth 2.1 + EDR, power class 1.5 (AVRCP 1.0) |
| Remote card reader | 1 x Remote Card Reader connection |
| Alarm | 1 x Alarm output |
Video
| Video output | 1 x HDMI output |
| Video inputs | 2 x composite video inputs (PAL or NTSC); 1 x HD-SDI input (BNC, 720p up to 60 fps / 1080p up to 30 fps) |
Sonar
| Built-in sonar | None (connect an external Raymarine sonar module over the SeaTalkhs network) |
| External sonar modules | Compatible with Raymarine DownVision, SideVision and CHIRP sonar modules connected via the SeaTalkhs network |
Mounting
| Mounting methods | Flush mount or surface mount (trunnion / bracket mounting not standard for glass bridge models) |
Physical
| Width | 433.9 mm (17 in.) |
| Height | 391.2 mm (15.4 in.) |
| Depth (excluding cables) | 83.9 mm (3.3 in.) |
| Depth (including cables) | 198 mm (7.8 in.) |
| Weight (bare unit) | 9.6 kg (21.2 lbs) |
Power
| Nominal supply voltage | 12 V dc to 24 V dc |
| Operating voltage range | 10.8 V dc to 31.2 V dc |
| Fuse / breaker | In-line fuse fitted within power cable: 15 A (standard 20 mm glass fuse) |
| Power consumption (without PoE) | Full brightness: 64.8 W Max; PowerSave mode: 15.8 W Max; Standby: 5 W Max |
| Power consumption (with PoE) | Full brightness: 100.7 W Max; PowerSave mode: 44.5 W Max; Standby: 40 W Max (full load of 20 W PoE) |
Environmental
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Maximum 75% |
| Waterproof rating | IPX6 |
Conformance
| Conformance | NMEA 2000 certified; conformance certification applies to all display variants. Supports C-MAP Essentials, C-MAP 4D MAX, C-MAP 4D MAX+ and Navionics cartography. |
