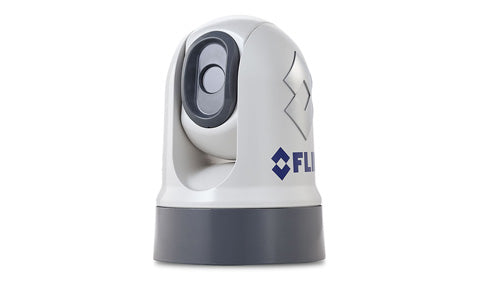

Raymarine M132 Thermal IP Camera 320 x 240 - 9Hz with Tilt
Description
The FLIR M132 takes affordability and easy integration to a whole new level. As FLIR's smallest and most affordable adjustable-tilt marine thermal night vision camera, it is built around the latest-generation FLIR Boson thermal core and lets you see at night in 320 x 240 thermal resolution. Thermal imaging detects heat rather than light, so the M132 reveals bridges, docks, buoys and other vessels in complete darkness, glare and light fog, and helps you find a person in the water faster than spotlights and radar alone.
The compact, lightweight housing fits almost any vessel and offers adjustable tilt for full horizon-to-horizon viewing, plus 2x digital zoom for a closer look at distant targets. Installation is plug and play with multifunction displays from leading manufacturers, using standard video over IP for crisp imagery up to 720p high definition directly on your MFD. An optional IP to analog video converter allows connection to standard monitors or displays without video over IP support. The M132 runs from a 12 to 24 V DC supply and shares its rugged, weatherproof design with the rest of the FLIR M-Series.
PRODUCT DETAILS
- 320 x 240 FLIR Boson thermal core reveals vessels, buoys and people in the water in total darkness, glare and light fog
- Adjustable tilt housing for full horizon-to-horizon viewing
- 2x digital zoom for enhanced viewing of distant targets
- Standard video over IP delivers crisp imagery up to 720p HD straight to your multifunction display
- Plug and play installation with displays from leading manufacturers
- Ultra-compact, lightweight housing fits on almost any vessel
- Runs from a 12 to 24 V DC supply with optional IP to analog video converter available
No exploded diagram available for this product.
No compatible transducers listed for this product.
FLIR M232 Right Angle Power Cable, 10m
M300 Thermal Camera Top Down Riser Kit
M300 Thermal Camera Gasket Set for Top Down Riser

FLIR M-Series HD-SDI Video Cable, 10m, Right Angle BNC to BNC
M300 Thermal Camera Power, Serial and CVBS Cable, 10m
M300 Thermal Camera Cable Kit, 0.5m
M300 Thermal Camera Power, Serial and CVBS Cable, 0.5m
M300 Thermal Camera BNC Video Cable, 3m
M300 Thermal Camera Right Angle Power Cable, 3m
M300 Thermal Camera Mounting Kit, 65mm
Imaging / Detector
| Detector type | 320 x 240 thermal sensor (FLIR Boson core) |
| Video refresh rate | 9 Hz |
| Image processing | FLIR Proprietary Digital Detail Enhancement |
Optics / Field of View
| Field of view | 24 deg horizontal |
| Digital zoom | 2x |
Video & Networking
| Video output | Video over IP, up to 720p HD (optional IP to analog converter) |
Adjustment
| Mount | Adjustable tilt (fixed mount, horizon-to-horizon) |
Power
| Power requirements | 12 to 24 V DC |
Physical
| Dimensions | Diameter 155 mm (6.12 in) x Height 227 mm (8.93 in) |
Range
| Person in water range | Approx. 1,500 ft (457 m) |
| Small vessel range | Approx. 4,200 ft (0.67 nm, 1.3 km) |
